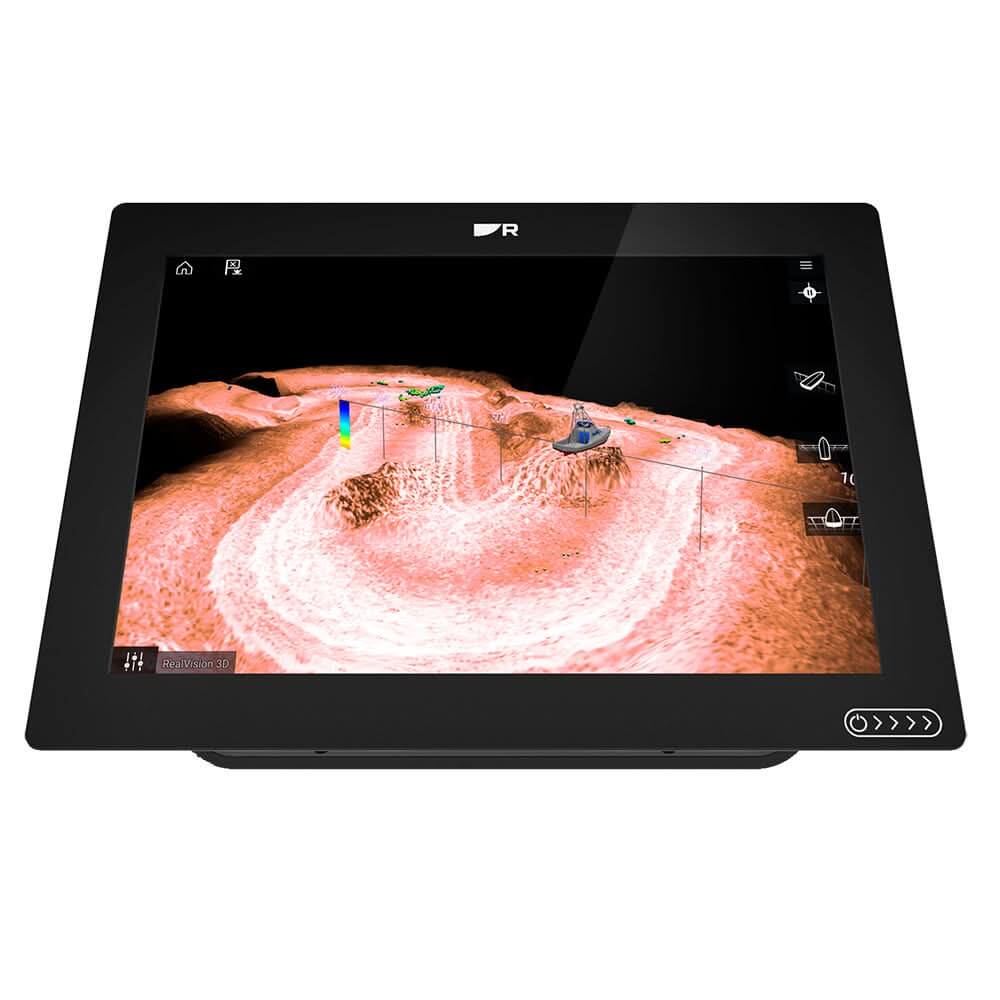

Raymarine Axiom+ 12 RV 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer & Lighthouse North America Chart - E70639-03-102

Raymarine Axiom+ 12 RV 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer & Lighthouse North America Chart - E70639-03-102

Axiom+ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount & Lighthouse North America Chart

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar. New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

PERFORMANCE TUNED

Designed for speed, responsiveness, and future expansion.

• Powerful quad-core processor, plus increased onboard storage for personal data and apps

• Fluid and fast chart redraw of new Raymarine LightHouse Charts, plus Navionics and C-MAP

• ClearCruise Augmented Reality-capable for smarter navigation decisions

• Smart and intuitive LightHouse 3 OS makes navigating easy

MAXIMUM VISIBILITY

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.

• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays

• 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)

• HydroTough Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls

• Improved viewing with new LightHouse 3 color themes, including light, dark, and night mode

The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions, RV-100 Transom Mount Transducer and Lighthouse North America Chart.

Features:

• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
• LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
• RealVision 3D Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
• Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
• Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
• Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
• Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
• Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
• Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
• Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
• Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
• Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app

RV-100 - RealVision 3D All-In-One Transom Mount Transducer

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)

What’s in the Box?

• RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
• Transom bracket
• Mounting hardware
• Installation instructions

Product : RAYMARINE AXIOM+ 12 RV 12" COMBO WITH RV-100 T/M LHC NA
Manufacturer : Raymarine
Manufacturer Part No : E70639-03-102
Product : RAYMARINE AXIOM+ 12 RV 12" COMBO WITH RV-100 T/M LHC NA
