What are the main features of the Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer?

The Raymarine RV-200 offers comprehensive 3D sonar imaging, including RealVision 3D, SideVision, DownVision, and high-frequency CHIRP for precise fish targeting and underwater detail, all integrated into a rugged bronze housing suitable for fiberglass and wooden hulls.

Is the Raymarine RV-200 compatible with my boat's hull material and design?

Yes, the Raymarine RV-200 is designed for fiberglass and wooden hulls with a deadrise between 0° and 6°. It features a cast bronze housing and is not suitable for metal hulls, making it ideal for flat-bottomed boats.

How does the Raymarine RV-200 ensure stable and clear 3D sonar images while sailing?

The RV-200 includes a built-in internal AHRS (Attitude Heading Reference System) that compensates for boat movement, waves, and swells, providing stable and clear 3D sonar images even at higher speeds.

Popular right now
Lots of people have looked at this recently

Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer - 0 degree - 8M Cable - A80465

Name: Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer - 0 degree - 8M Cable - A80465
Brand: Raymarine
SKU: 65574
Price: 921.99 USD
Availability: InStock

$921.99 ~~$1,044.99~~

SKU: 65574

Manufacturer Part #: A80465

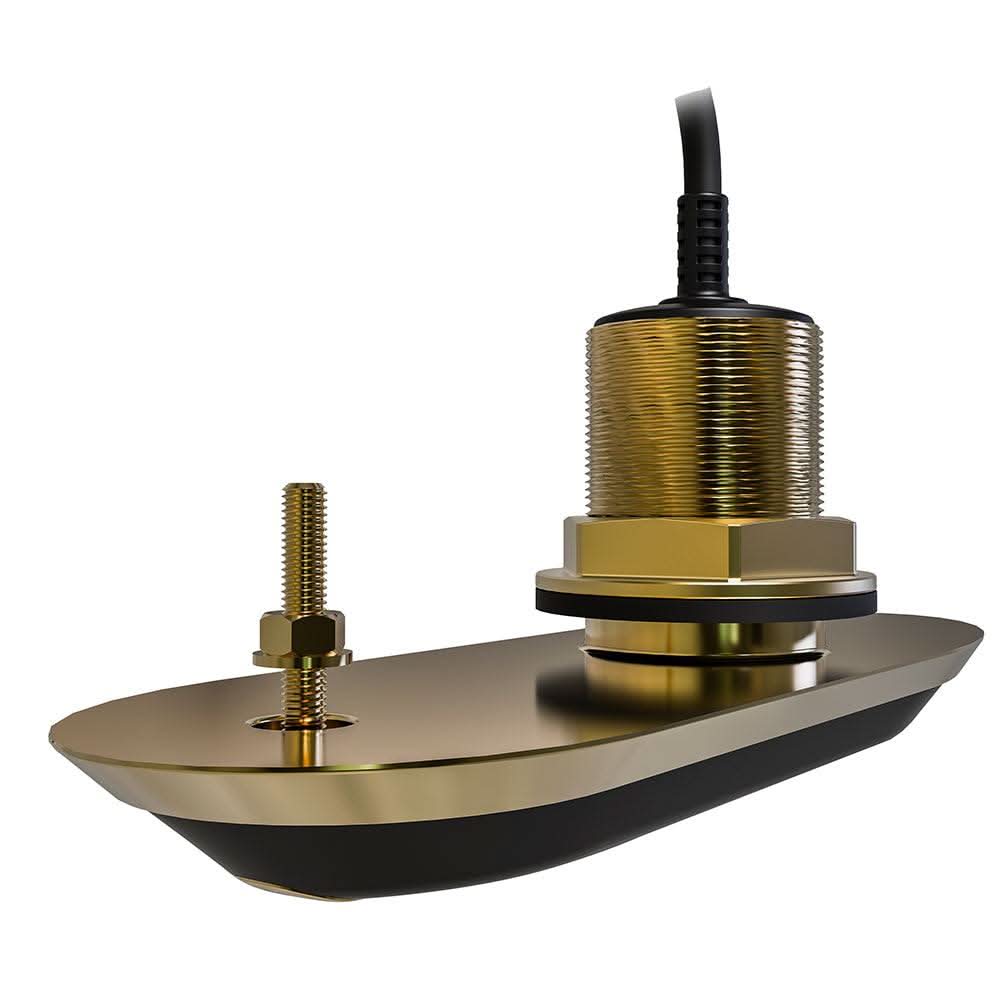

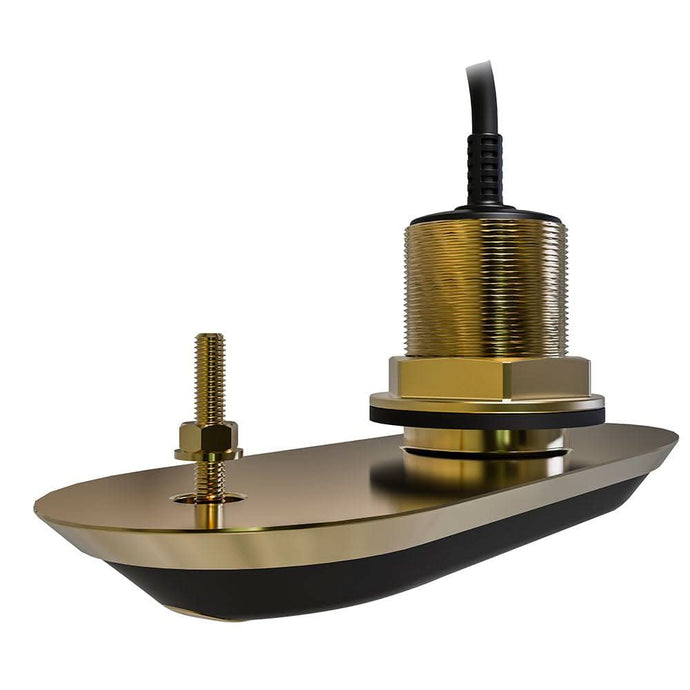

Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer - 0 degree - 8M Cable - A80465

The Raymarine RV-200 RealVision 3D Bronze Transducer (A80465) is a professional-grade, all-in-one sonar solution designed for boats with flat bottoms or a deadrise between 0° and 6°. Encased in a rugged cast-bronze housing, this thru-hull transducer is ideal for fiberglass or wooden hulls and delivers multiple sonar views through a single installation.

4-Channel Sonar Power

The RV-200 integrates four independent sonar channels into one unit, allowing you to see what’s beneath and around your vessel with incredible detail:

RealVision 3D: Provides life-like 3D imagery of underwater structures and fish.
SideVision: Scans the water to the left and right of your boat for a wide-area view.
DownVision: Delivers photo-like detail of the bottom directly below you.
High-Frequency CHIRP: Optimized for high-speed tracking and precise fish targeting.

Advanced Stability & Efficiency

Internal AHRS: Features a built-in Attitude Heading Reference System that automatically compensates for boat movement (waves and swells), ensuring your 3D sonar images remain stable and clear.
Low-Profile Design: The near-flush mounting minimizes drag and cavitation, making it an excellent choice for trailered boats as there is no bulky fairing block required.
Built-in Temperature Sensor: Includes a fast-response sensor for accurate water temperature readings.

Technical Specifications

Part Number: A80465
Material: Cast Bronze (Recommended for wood or fiberglass; do not use on metal hulls)
Supported Deadrise: 0° to 6°
Cable Length: 8 Meters (26.2 ft)
Max Depth Range: 3D: 300ft | DownVision: 600ft | Conical CHIRP: 900ft
Connectivity: 25-pin connector (Direct connect to Axiom RV and Axiom Pro RVX displays)
