Raymarine RayStar 150 GPS Sensor with Pole Mount - T70327
Manufacturer Part #: T70327
Couldn't load pickup availability

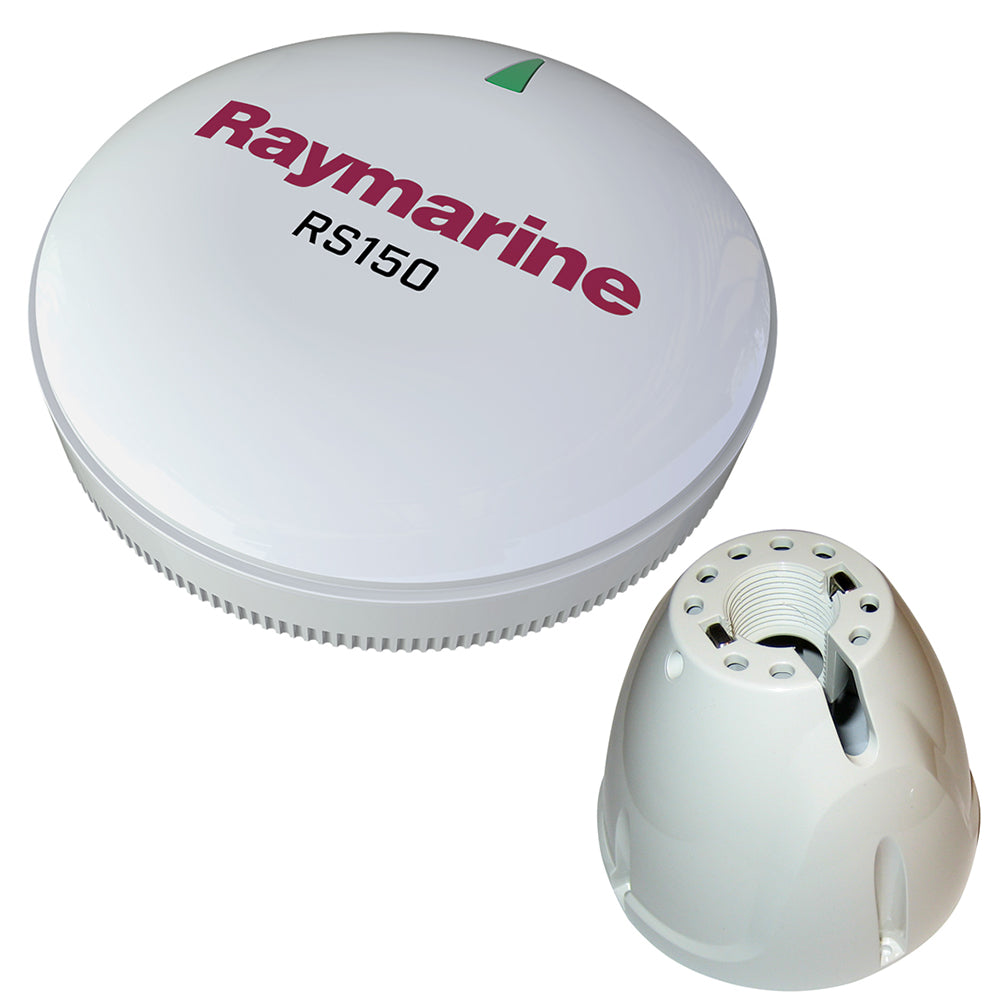

Raymarine RayStar 150 GPS Sensor with Pole Mount – T70327
The Raymarine RayStar 150 GPS Sensor (T70327) is a high-performance marine GPS receiver designed to deliver fast, accurate positioning for Raymarine navigation systems. Featuring a 72-channel satellite receiver, the RayStar 150 provides precise location data with rapid satellite acquisition, ensuring reliable navigation performance even in challenging marine environments.
This advanced GPS sensor supports GPS, GLONASS, and Galileo satellite systems, allowing it to track multiple constellations simultaneously for improved accuracy and signal reliability. With 10Hz position updates, it delivers smooth and responsive data for chartplotters, radar overlays, and autopilot systems.
The RayStar 150 features a compact, waterproof housing designed for marine use and includes a pole mount for easy installation on arches, radar mounts, or other elevated mounting points. Its robust construction ensures dependable operation in harsh offshore conditions.
Designed to integrate seamlessly with Raymarine multifunction displays and navigation systems, the RayStar 150 provides consistent and accurate GPS positioning to enhance situational awareness and vessel control.
Key Features
-
Multi-Constellation Support: Compatible with GPS, GLONASS, BeiDou, and Galileo for faster signal acquisition and better global coverage.
-
Space-Based Augmentation (SBAS): Supports WAAS, EGNOS, MSAS, and GAGAN for sub-3-meter accuracy.
-
High-Speed Updates: Delivers 10Hz updates (10 times per second) for a much smoother heading and position display.
-
Low Power Consumption: Optimized to run efficiently on your SeaTalkng or NMEA 2000 backbone.
-
Rugged & Waterproof: Rated to IPX6 and IPX7 standards, ensuring reliability in heavy rain or temporary submersion.
What’s In The Box
-
(1) Raymarine RS150 GPS Sensor
-
(1) Pole Mount Kit (Adapter for standard marine poles)
-
(1) SeaTalkng Spur Cable (6 meters)
-
(1) Mounting Gasket and Hardware
-
Installation Documentation
Technical Specifications
| Attribute | Specification |
| Model Number | T70327 |
| Channels | 72-Channel Receiver |
| Update Rate | 10Hz |
| Connectivity | SeaTalkng / NMEA 2000 (via adapter) |
| Voltage | 9V - 16V DC (Powered by SeaTalkng) |
| Accuracy | < 3 Meters (with SBAS) |
Improve the accuracy and reliability of your vessel’s navigation system with the Raymarine RayStar 150 GPS Sensor, delivering advanced satellite tracking and dependable positioning for modern marine electronics.
