Raymarine Ray73 VHF Radio with AIS Receiver - E70517

Ray73 VHF Radio with AIS Receiver (E70517)

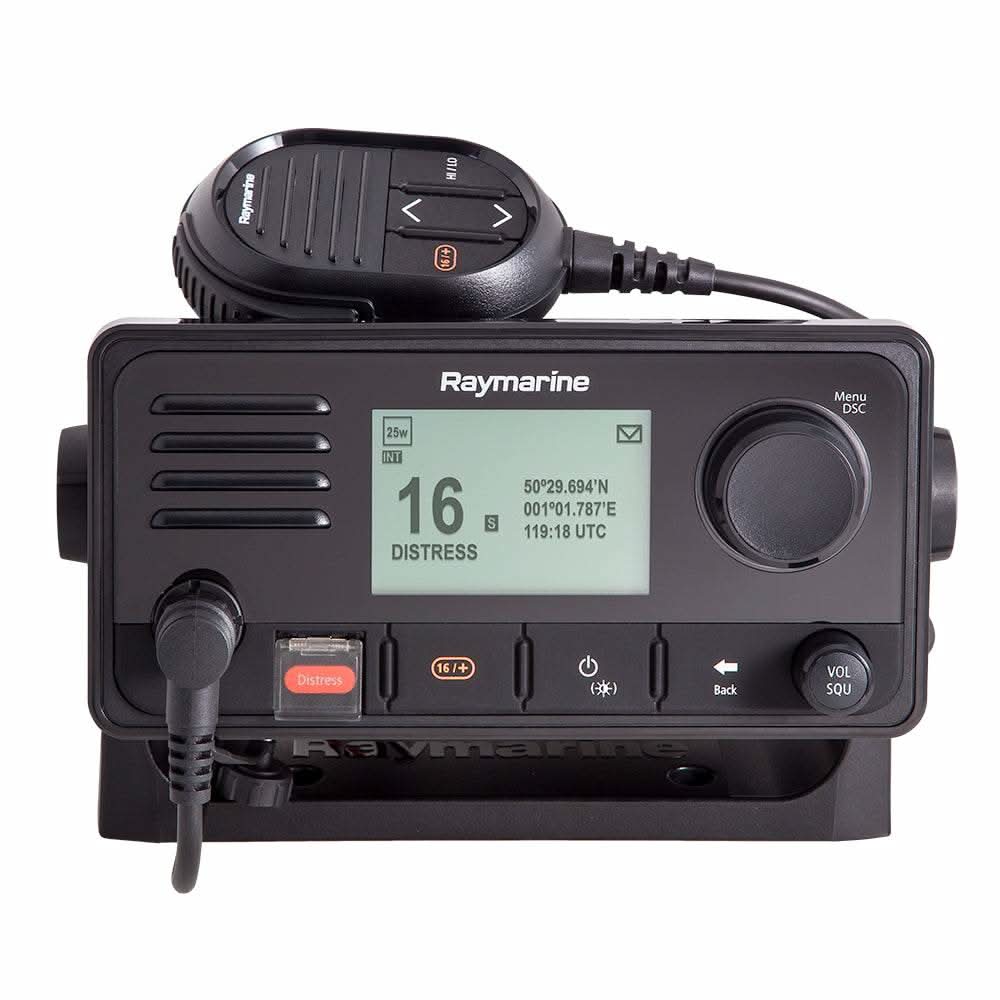

The Raymarine Ray73 VHF Radio with AIS Receiver – E70517 is a premium fixed‑mount marine VHF communications station built for safety, navigation, and integration on coastal and offshore boats. It combines a 25 W Class D VHF radio with Digital Selective Calling (DSC), a built‑in AIS receiver, and an integrated GPS/GNSS receiver, delivering critical vessel‑to‑vessel and positional data for improved situational awareness. The Ray73 also supports optional wired or wireless RayMic handset stations, loudhailer/fog signalling functionality, and integrates seamlessly with onboard networks via NMEA 2000 and NMEA 0183 to share AIS and GPS data with chartplotters, radar, and other instruments.

🔧 Technical Specifications

📡 Radio & Transmitter

• VHF Type: Fixed mount marine VHF radio with Class D DSC for rapid distress calling

• Power Output: 1 W (low) / 25 W (high)

• Frequency Range: 156.000 – 157.425 MHz (marine) / 155.500 – 161.425 MHz (private)

• Channel Coverage: All available US, International, and Canadian VHF marine bands

• Transmitter Stability: ±1.5 ppm

📶 Receiver & AIS

• Receiver Type: Double conversion super‑heterodyne with excellent sensitivity

• AIS Receiver: Built‑in AIS receiver (Class‑receive only) for vessel traffic data like nearby targets, speed, and course (not for AIS transmit)

• NMEA Output: AIS data passed to chartplotters/instruments via NMEA 2000/0183

📍 GPS / GNSS

• Integrated GPS/GNSS: Built‑in with 72 channels

• SBAS Support: WAAS / EGNOS / MSAS

• Position Refresh: ~10 Hz

• External Antenna Port: Optional external GNSS antenna connection for improved signal

🔊 Audio & Hailer

• Loudhailer Output: Fog signalling and public‑address capability with optional horn accessory

• Speaker Outputs:

  • Base: ~2.5 W

  • External: ~5 W

  • Handset: ~1 W

  • Hailer: up to ~25 W

💡 Networking & Accessories

• Network: NMEA 2000 & NMEA 0183 compatible

• Remote Stations: Support for RayMic handsets (wired or wireless) for second‑station control and intercom functions

• Audio Out: RCA for optional passive remote speaker

• Mounting: Surface and trunnion mount kits included

🌡️ Environmental & Power

• Power: 12 V DC (9–16 V range with protection)

• Waterproof: IPx6 & IPx7 marine rating

• Operating Temp: –20 °C to +60 °C (–4 °F to 140 °F)

🧰 In the Box

• VHF radio, Fistmic handset, sun cover, mounting brackets (trunnion), panel gasket, antenna boot, SeaTalkng spur cable, documentation

⭐ Key Features

• Integrated AIS receiver for vessel traffic monitoring and collision awareness

• Built‑in 72‑channel GNSS provides accurate position and DSC safety calling

• Supports dual‑station operation with optional RayMic handsets (wired or wireless)

• Loudhailer / fog signaling and public address capability with optional accessories

• NMEA 2000 & NMEA 0183 communications for chartplotter and instrument integration

• Designed to complement other Raymarine displays (e.g., Axiom series)
