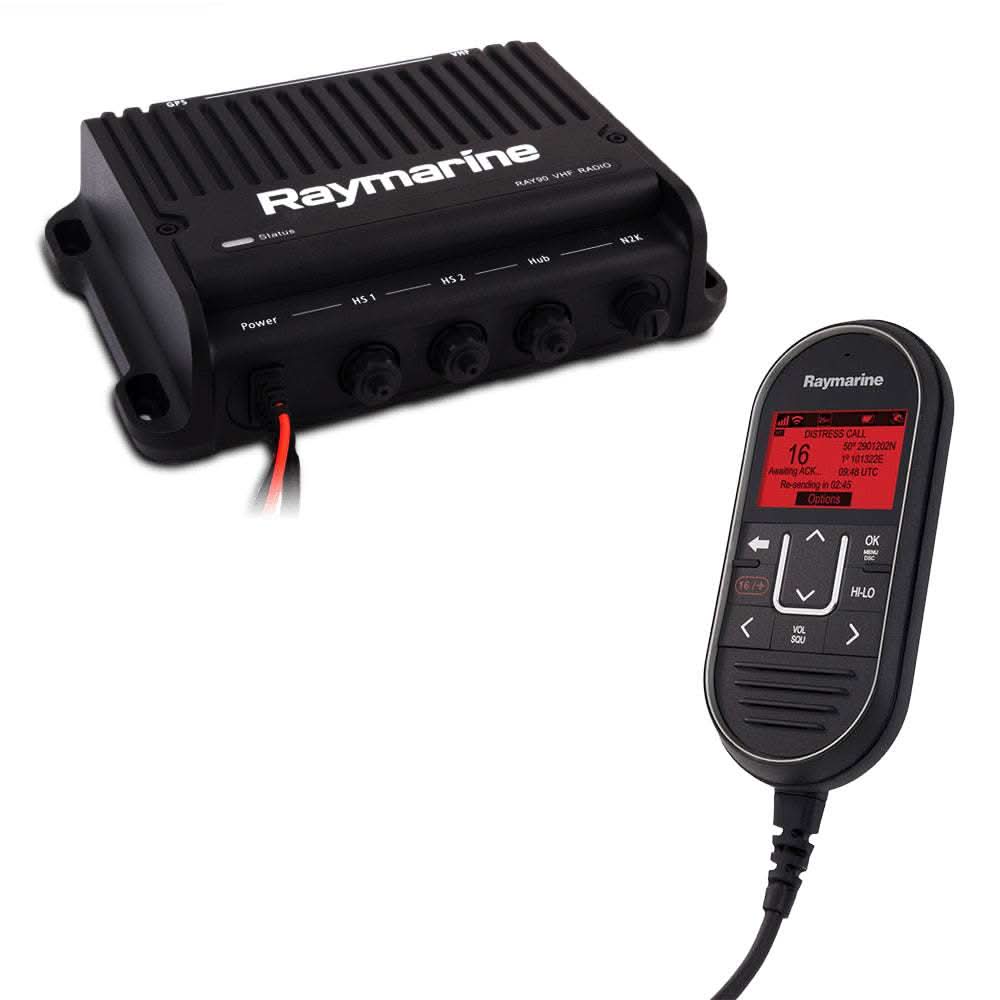

Raymarine Ray90 Modular Dual-Station VHF Black Box Radio System - E70492

Raymarine Ray90 Modular Dual‑Station VHF Box Radio System – Modular Dual-Station VHF Black Box Radio System (E70492)

The Raymarine Ray90 Modular Dual-Station VHF Black Box Radio System – E70492 is a feature-rich fixed-mount marine VHF communications solution designed for onboard voice safety and situational awareness. Its black-box transceiver mounts out of sight, allowing you to install ergonomic RayMic handsets and speakers at convenient helm or cabin locations. The Ray90 delivers crystal-clear communications, Class D Digital Selective Calling (DSC) for emergency alerts, and is expandable to support multiple handset stations—ideal for coastal cruising and offshore boating. Simple NMEA 2000 & NMEA 0183 networking integrates VHF data with chartplotters and multifunction displays for enhanced safety and convenience.

🔧 Technical Specifications & Features

• Model: Raymarine Ray90 Modular Dual-Station VHF — E70492

• Design: Black box transceiver for discreet mounting and space savings

• Transmit Power: 25 W (high) / 1 W (low) standard marine output

• DSC: Class D Digital Selective Calling for automated distress and safety calls

• Station Support: Expandable to 2–3 RayMic handsets (wired or optional wireless)

• Included: Wired RayMic handset and passive speaker

• Loudhailer & Fog Signals: Built-in loudhailer with talkback and automatic fog signals

• Networking: NMEA 2000 & NMEA 0183 compatibility for system integration

• GPS Ready: Supports optional external GPS antenna (GA150) for DSC position integration

• Receiver Functions: Dual-watch, tri-watch, channel scanning, weather alerts

• Waterproofing: IPX6/IPX7 marine protection and ruggedized cast aluminum transceiver

• Operating Voltage: ~9 – 16 V DC with over-voltage protection

• Integration: Compatible with Raymarine multifunction displays and networks via SeaTalk ng/NMEA connections

⭐ Key Benefits

• Modular Black Box Design: Keeps the main radio unit out of sight while allowing flexible control station placement.

• Multi-Station Capability: Extend communications to multiple helm or cabin locations with additional RayMic handsets.

• Advanced Safety Features: Class D DSC, weather alerts, and optional GPS enhance safety at sea.

• Built-In Loudhailer: Enables fog signals and two-way announcements across the vessel or to nearby craft.

• Seamless Integration: Works with onboard electronics via NMEA for rich information sharing.

• Durable & Waterproof: Designed to withstand harsh marine environments.
