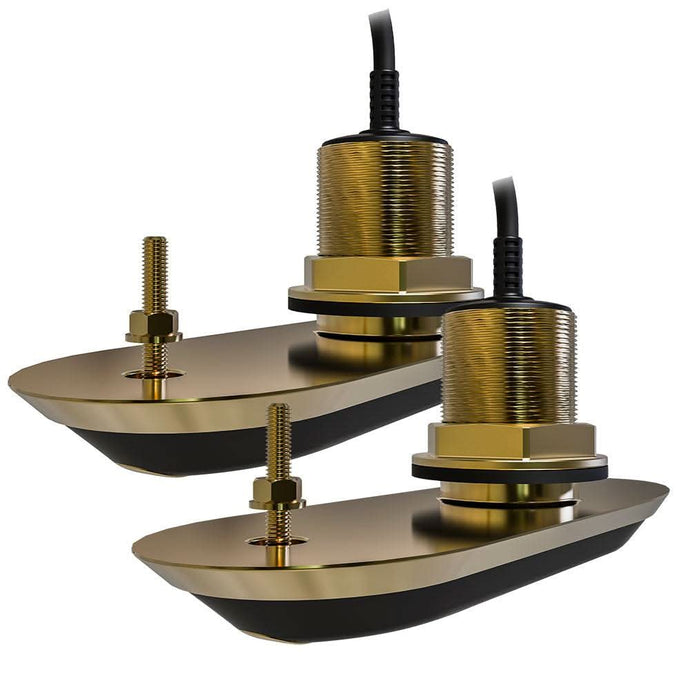

Raymarine RV-220 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 20 degree - 8M Cable Y-Cable - T70319

The Raymarine RV-220 RealVision 3D Bronze Transducer Pair Pack (T70319) is a high-performance sonar system designed for vessels with a significant hull deadrise. This pair of transducers provides a full 180° underwater view by splitting the signal between port and starboard sensors, effectively eliminating sonar "shadows" caused by deep keels.

Precision for Angled Hulls

The RV-220 is specifically engineered with a 20° internal offset, making it the ideal choice for boats with hull deadrise angles between 13° and 20°. This design allows the transducers to be mounted nearly flush with the hull, providing a true downward-looking beam without the need for bulky fairing blocks.

• RealVision 3D Technology: Combines DownVision, SideVision, high-frequency CHIRP, and 3D sonar into one system to help you identify underwater structures and fish with lifelike clarity.

• Built-in AHRS Stabilization: Features an internal Attitude Heading Reference System that compensates for vessel motion (pitch, roll, and heave) to keep your sonar imagery stable even in rough seas.

• Rugged Bronze Construction: The cast-bronze bodies are exceptionally durable and designed for use in both fiberglass and wooden hulls.

• Low-Profile Design: The near-flush mounting minimizes drag and cavitation, which is particularly beneficial for high-speed vessels and trailered boats.

Technical Specifications

• Part Number: T70319

• Deadrise Compensation: 20° (Suitable for 13° to 20° hull deadrise)

• Max Depth Range: 3D: 300ft | DownVision: 600ft | SideVision: 300ft | Conical CHIRP: 900ft

• Cable Length: Includes 2m pigtails on each transducer plus an 8m (26ft) extension cable and Y-cable (Total ~10m).

• Compatibility: Designed for direct connection to Raymarine Axiom RV, Axiom Pro RVX, and Axiom+ RV multifunction displays.
