Raymarine RV-212 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 12 degree - 8M Cable Y-Cable - T70318

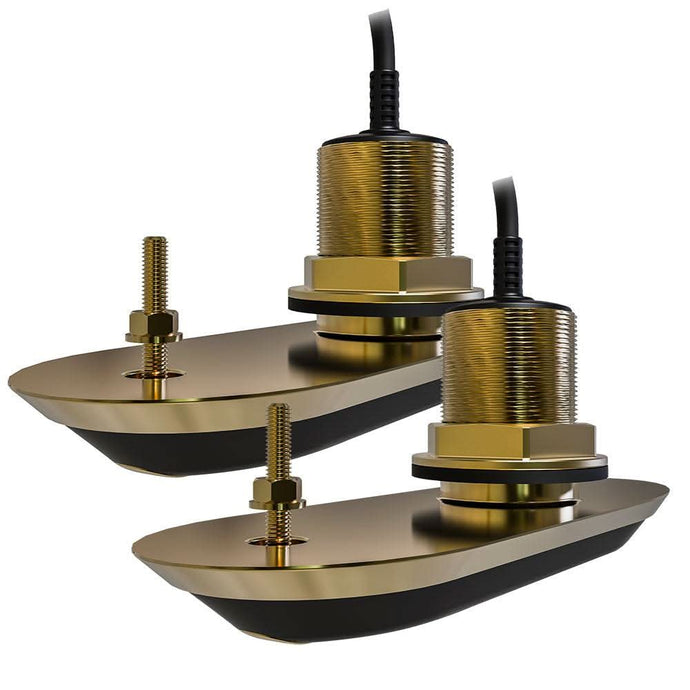

The Raymarine RV-212 Bronze Transducer Pack (T70318) is a premium, multi-channel sonar system designed for high-performance offshore fishing and cruising. This kit includes a pair of bronze thru-hull transducers specifically engineered for boats with a 12° hull deadrise, providing a complete RealVision 3D view of the underwater world.¹

Advanced 4-Channel Sonar

The RV-212 system utilizes four different sonar channels simultaneously to give you a comprehensive understanding of what is beneath and to the sides of your vessel By using a split-pair design (one for port and one for starboard), it eliminates the "shadowing" effect caused by the boat's keel.

• RealVision 3D Technology: Provides a life-like, 3D representation of the bottom, allowing you to easily identify structures and locate fish in relation to your boat.

• Integrated AHRS: Features a built-in Attitude Heading Reference System that stabilizes the sonar imagery by automatically compensating for the boat's pitch, roll, and heave.

• Bronze Construction: The rugged bronze housings are ideal for fiberglass or wooden hulls, providing superior durability and long-term reliability in saltwater environments.

• High-Definition Detail: Includes CHIRP SideVision, DownVision, and high-frequency conical CHIRP for exceptional target separation and clarity.

Technical Specifications

• Deadrise Compensation: 12° (Suitable for hulls with 6° to 18° deadrise).

• Cable System: Includes an 8-meter (26.2 ft) primary cable and a Y-cable to join the pair together.

• Connector: 25-pin RealVision connector (compatible with Axiom and Axiom Pro series).

• Material: Professional-grade bronze.

• Mounting: Thru-hull installation; does not require a fairing block due to the tilted element design.¹
