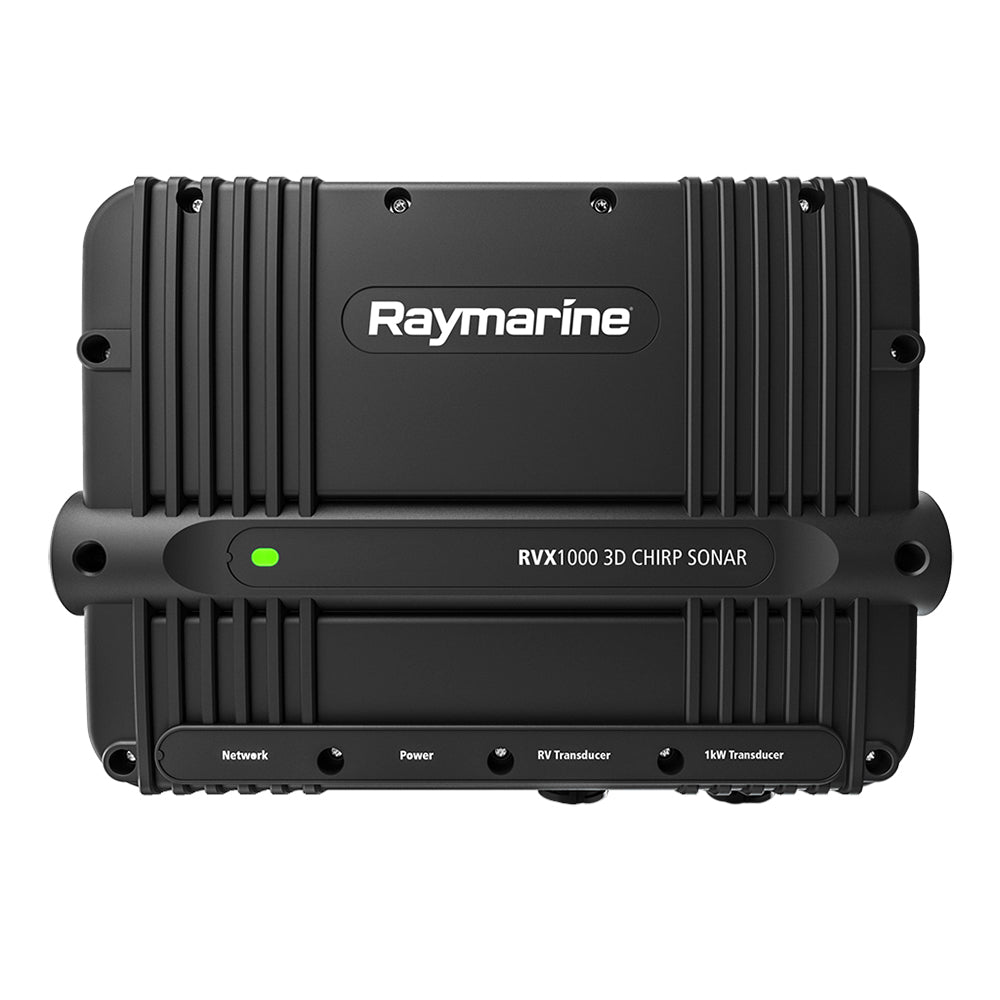

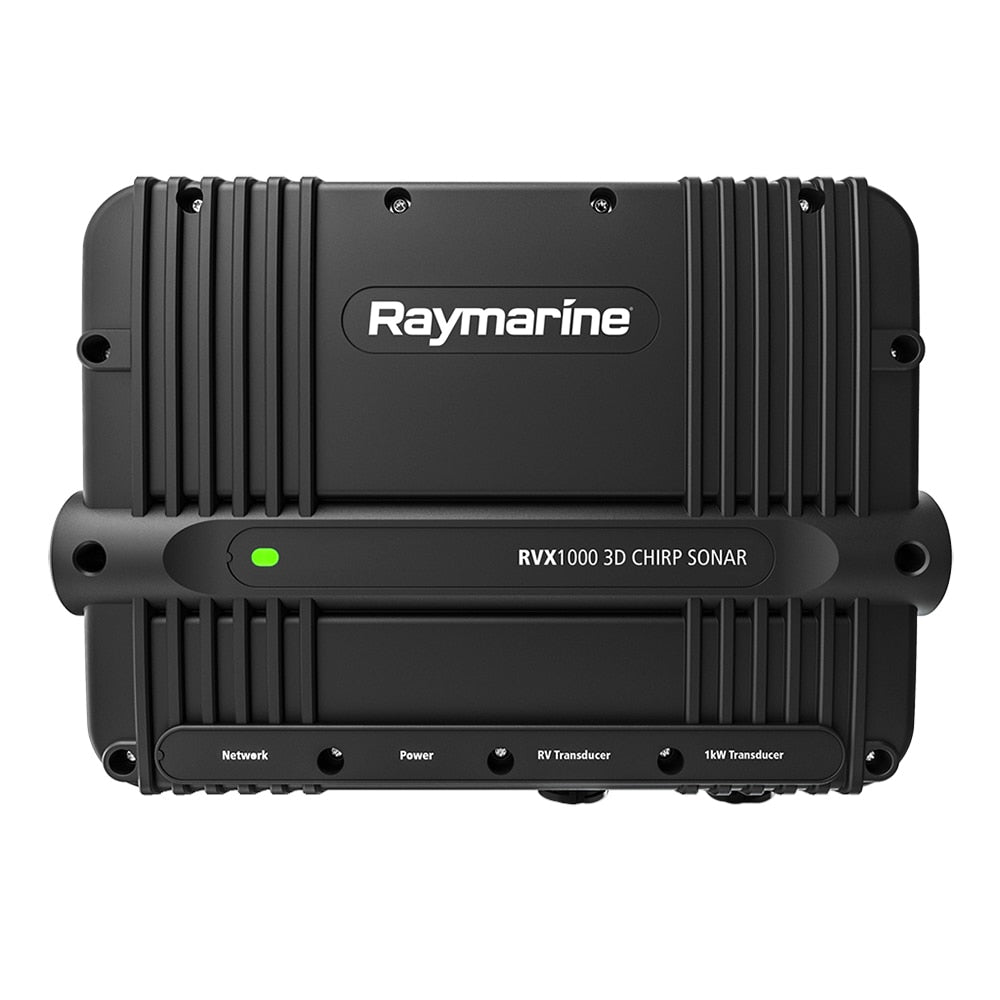

Raymarine RVX1000 3D Chirp Sonar Module - E70511
Manufacturer Part #: E70511
RVX1000 3D Sonar Module
The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.
Features:
- 5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
- RealVision 3D with GPS Track
- Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
- Raymarine’s TrueZoom magnification technology
- RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
- Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
- Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay
Specifications:
- Connections: 1x RVX Port = 25 pin RealVision connector | 1x 1kw Port = 11 pin 1kW connector | 1x Power connection | 1x Raynet connection
- Sonar: SonarRealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
- Sonar Depth: High Frequency CHIRP = 900 feet | DownVision = 600 feet | SideVision = 300 feet Port and Starboard | 1kw = 5,000 feet
- Nominal Supply Voltage: 12 V and 24 V DC
- Operating Voltage: Range10.8 V to 31.2 V DC
- Power Consumption: 10.4 W (Maximum)
- Current: 2.4 A Peak; 1.2 A RMS
- Fuse/Breakers: 5amp
- Waterproof Rating: IPX6/IPX7
- Operating Temperature: -25 C (-13 F) to +55 C (+131 F)
- Storage Temperature: -30 C (-22 F) to +70 C (+158 F)
The RVX1000 is compatible with all LightHouse 3 enabled Multifunction Displays running software version 3.4 or higher.
In the Box:
- RVX1000 Sonar Module (1)
- Power Cable, 1.5M (1)
- Fixing Screws, #8 (4)
- Documentation Pack (1)
- RayNet Network Cable, 2M (1)
Raymarine RVX1000 3D Chirp Sonar Module - E70511 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Reviews (0)
Reviews (0)
Accessories
Accessories

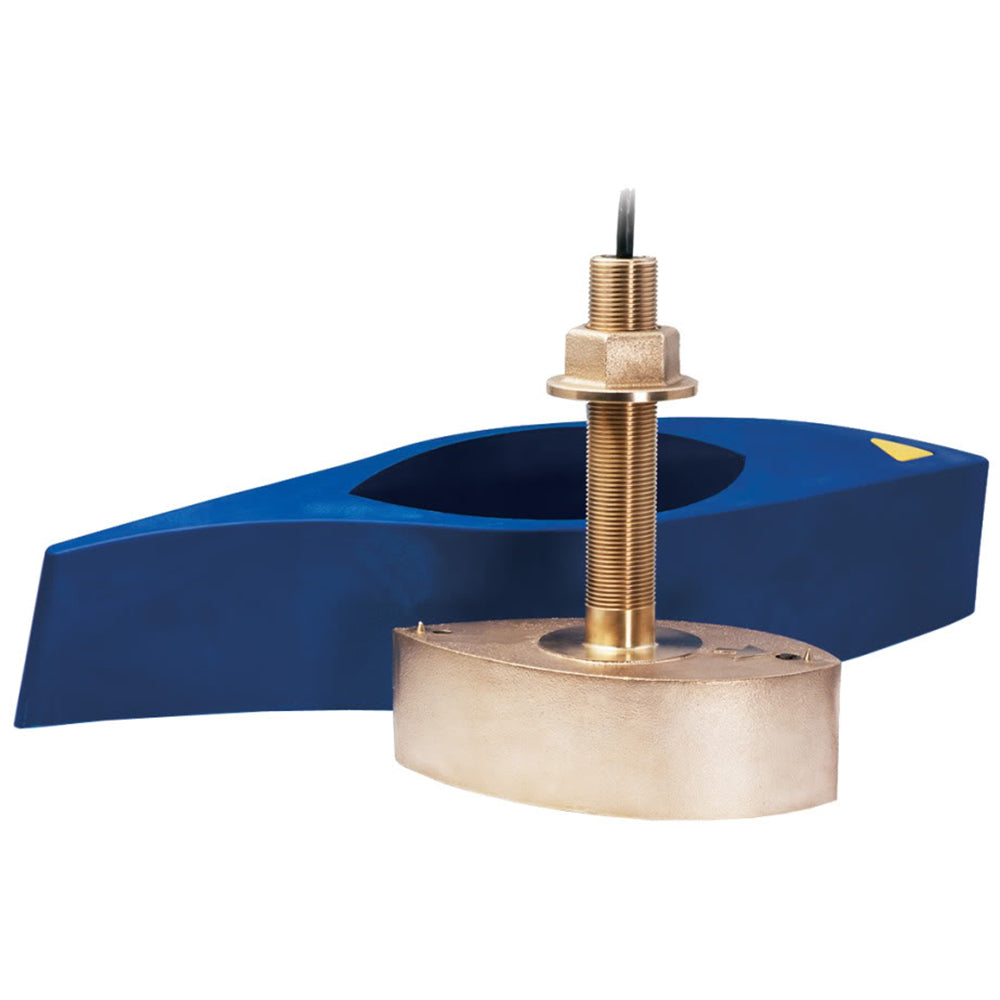

Raymarine B275LH-W Bronze Thru-Hull - Low & High Wide Frequency - A80322
![Raymarine B275LH-W Bronze Thru-Hull - Low & High Wide Frequency - A80322](http://anchorexpress.com/cdn/shop/products/CW62985.jpg?v=1705594435)

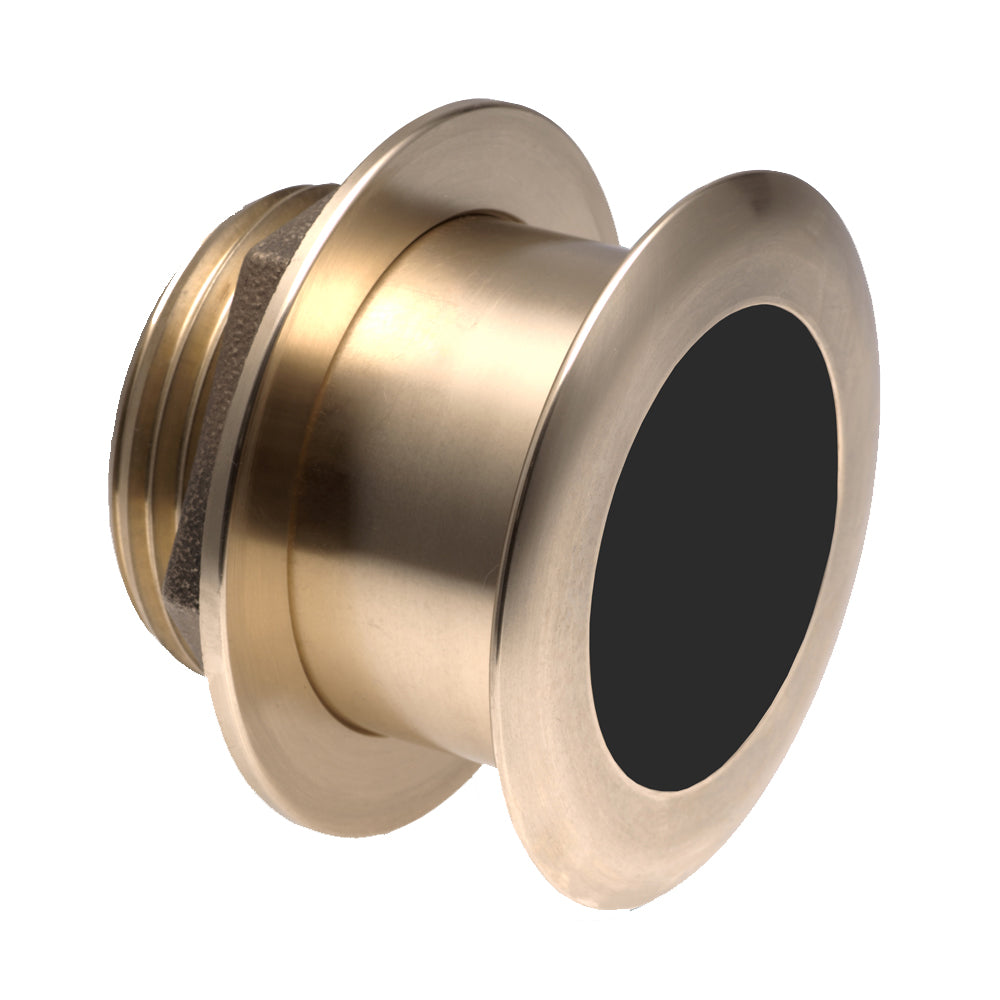

Raymarine B175H-W 20 degree Bronze Thru-Hull Tilted Element Transducer - 1kW - A80321
![Raymarine B175H-W 20 degree Bronze Thru-Hull Tilted Element Transducer - 1kW - A80321](http://anchorexpress.com/cdn/shop/products/CW65170.jpg?v=1705594443)
Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer - A80464
![Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer - A80464](http://anchorexpress.com/cdn/shop/products/CW65573.jpg?v=1705566908)
Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer - 0 degree - 8M Cable - A80465
![Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer - 0 degree - 8M Cable - A80465](http://anchorexpress.com/cdn/shop/products/CW65574.jpg?v=1705566911)
Raymarine RV-212 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 12 degree - 8M Cable Y-Cable - T70318
![Raymarine RV-212 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 12 degree - 8M Cable Y-Cable - T70318](http://anchorexpress.com/cdn/shop/products/CW65575.jpg?v=1705566915)
Raymarine RV-220 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 20 degree - 8M Cable Y-Cable - T70319
![Raymarine RV-220 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 20 degree - 8M Cable Y-Cable - T70319](http://anchorexpress.com/cdn/shop/products/CW65576.jpg?v=1705566863)

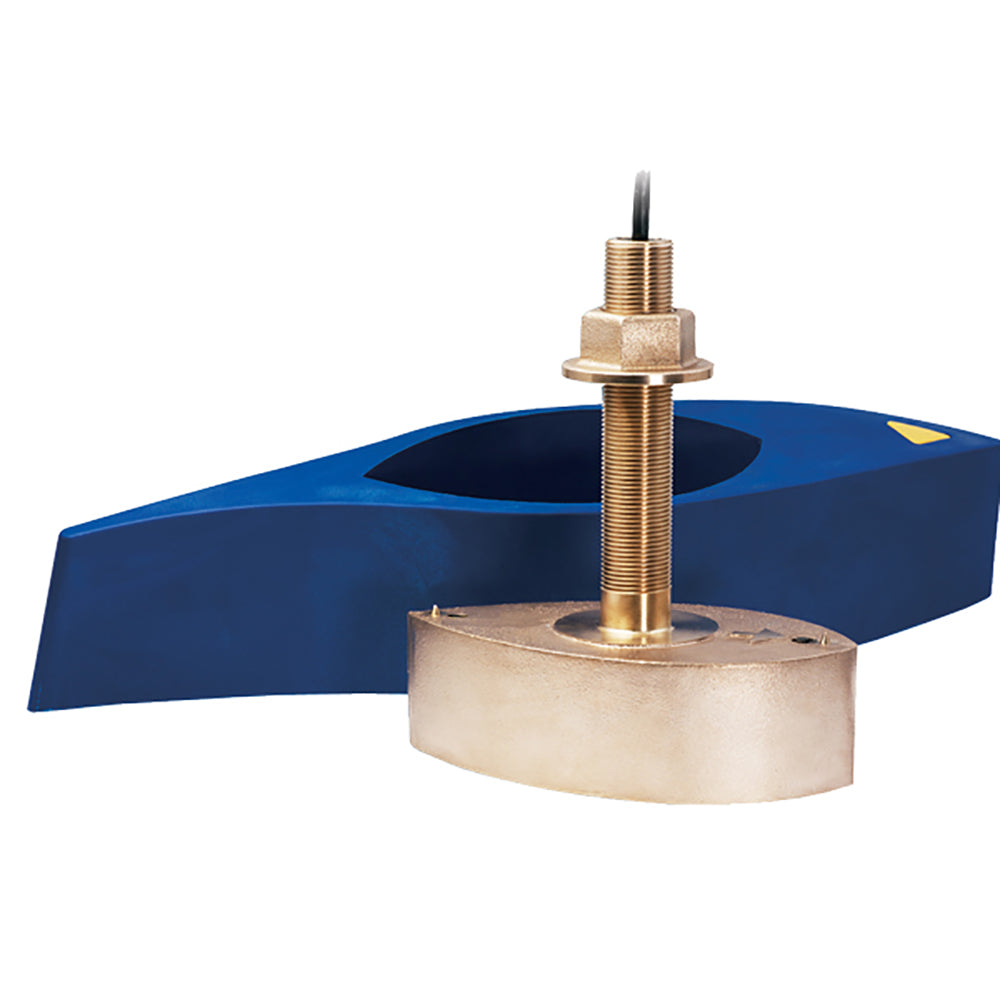

Raymarine B265LM Bronze CHIRP Thru-Hull Depth and Temp - A80011
![Raymarine B265LM Bronze CHIRP Thru-Hull Depth and Temp - A80011](http://anchorexpress.com/cdn/shop/products/CW66257.jpg?v=1705594458)

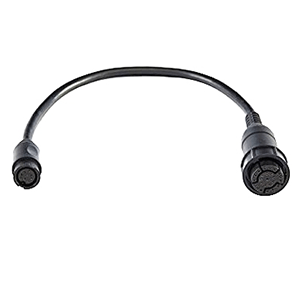

Raymarine Adapter Cable f/CPT-S Transducers To Axiom Pro S Series Units - A80490
![Raymarine Adapter Cable f/CPT-S Transducers To Axiom Pro S Series Units - A80490](http://anchorexpress.com/cdn/shop/products/CW66985.gif?v=1705568865)

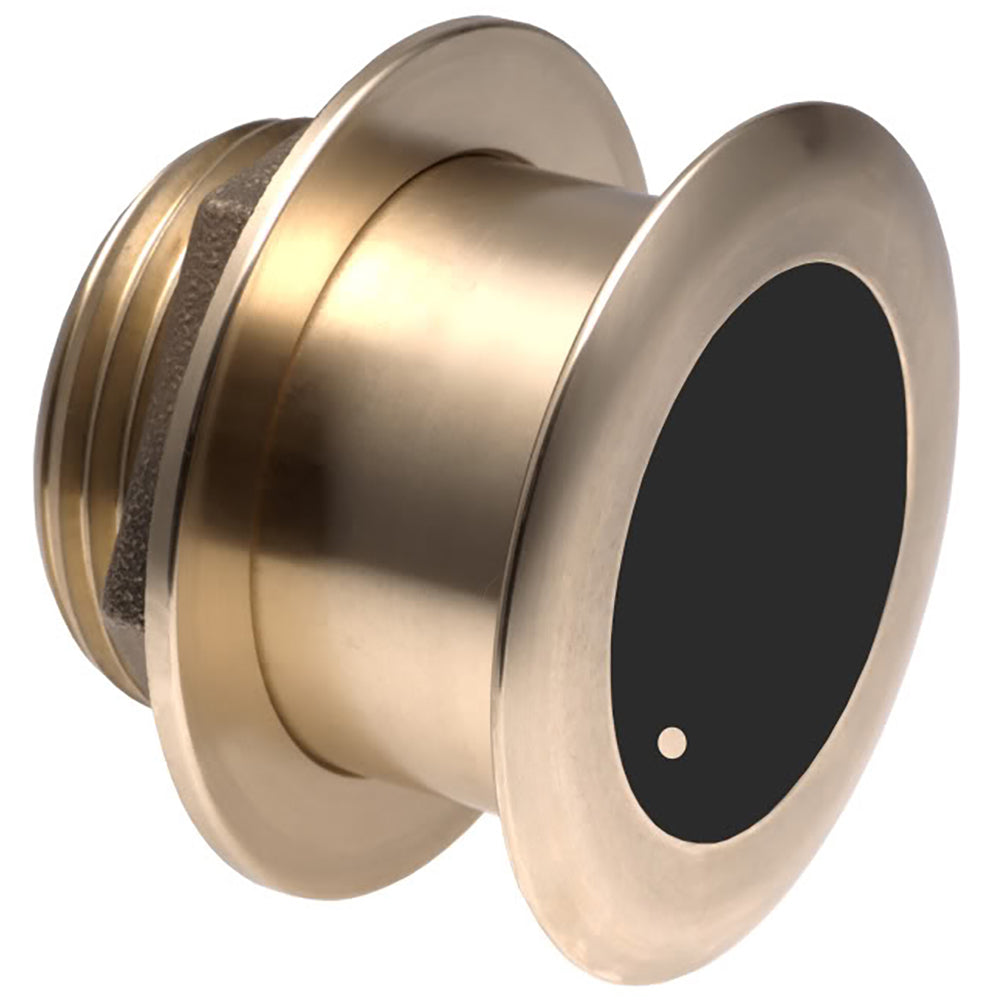

Raymarine B175M Bronze CHIRP 0 degree Thru-Hull Transducer - A80043
![Raymarine B175M Bronze CHIRP 0 degree Thru-Hull Transducer - A80043](http://anchorexpress.com/cdn/shop/products/CW69155.jpg?v=1705594480)

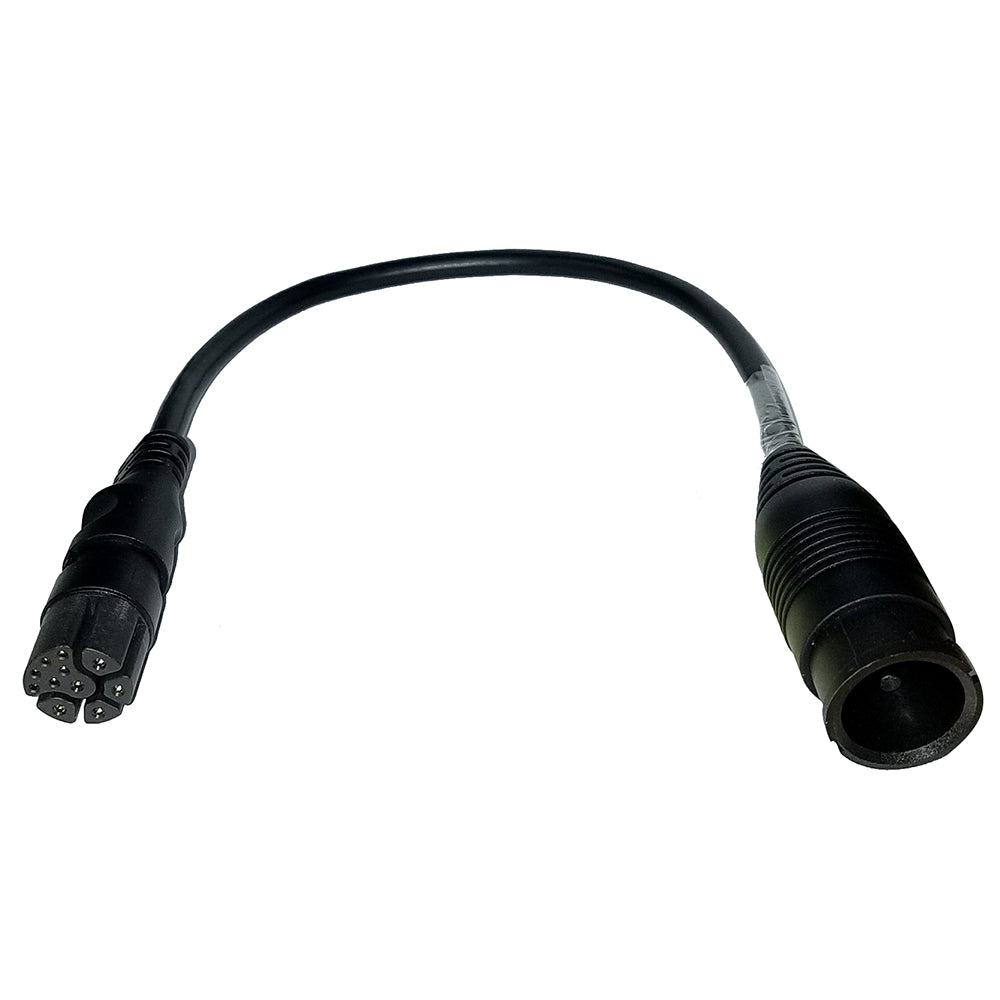

Raymarine Adapter Cable for Axiom Pro with CP370 Transducer - A80496
![Raymarine Adapter Cable for Axiom Pro with CP370 Transducer - A80496](http://anchorexpress.com/cdn/shop/products/CW69703.jpg?v=1705594496)
Raymarine RV-400 Stainless Steel Thru-Hull RealVision 3D 0 degree - A80615
![Raymarine RV-400 Stainless Steel Thru-Hull RealVision 3D 0 degree - A80615](http://anchorexpress.com/cdn/shop/products/CW75010.jpg?v=1705594513)
Raymarine RV-412 Stainless Steel Thru-Hull RealVision 3D 12 degree - Pair - T70450
![Raymarine RV-412 Stainless Steel Thru-Hull RealVision 3D 12 degree - Pair - T70450](http://anchorexpress.com/cdn/shop/products/CW75011.jpg?v=1705594516)
Raymarine RV-420 Stainless Steel Thru-Hull RealVision 3D 20 degree - Pair - T70451
![Raymarine RV-420 Stainless Steel Thru-Hull RealVision 3D 20 degree - Pair - T70451](http://anchorexpress.com/cdn/shop/products/CW75012.jpg?v=1705594520)

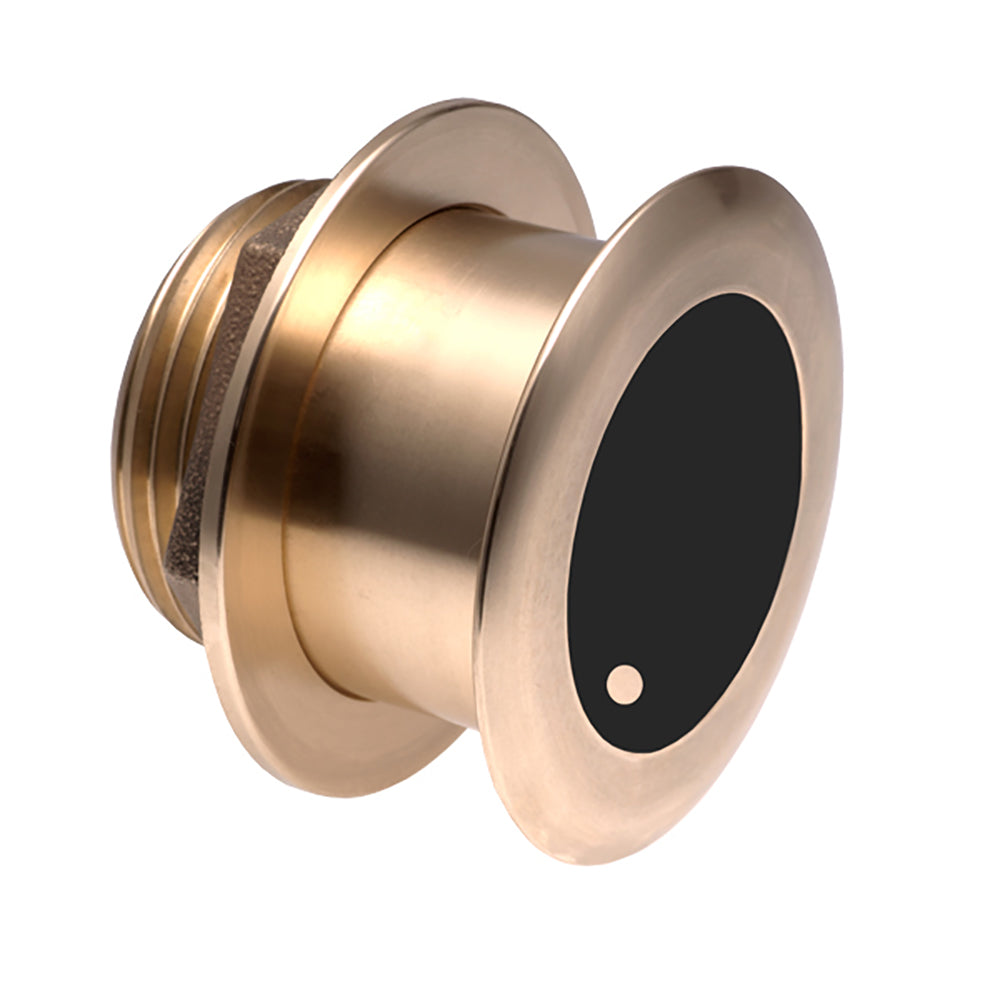

Raymarine B175M Bronze 1kW CHIRP 20 degree Tilt - A80049
![Raymarine B175M Bronze 1kW CHIRP 20 degree Tilt - A80049](http://anchorexpress.com/cdn/shop/products/CW75652.jpg?v=1705594529)
Raymarine B175H-W 1KW Bronze Thru Hull 12 Degree Tilted Element - A80320
![Raymarine B175H-W 1KW Bronze Thru Hull 12 Degree Tilted Element - A80320](http://anchorexpress.com/cdn/shop/products/CW77436.jpg?v=1705578172)

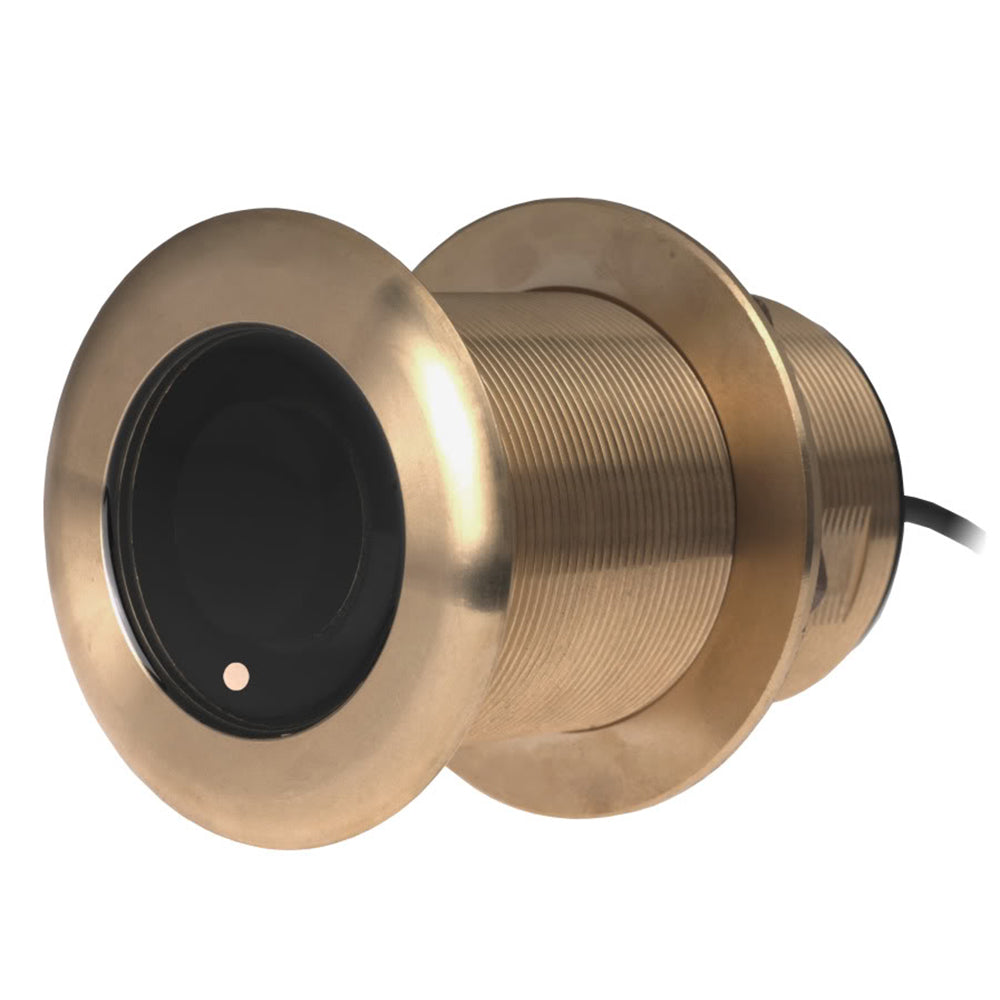

Raymarine B75M 600W Medium Frequency CHIRP Transducer 20 degree Tilt Single Operation Cable for 1 Transducer Install - A80036
