How does the Lenco LED Indicator Two-Piece Tactile Switch Kit improve boat maneuverability?

This switch kit provides clear LED indicators and responsive tactile control, allowing for precise trim adjustments that enhance boat handling, stability, and safety in various water conditions.

Is the Lenco LED Indicator Switch Kit suitable for my dual actuator trim tab system?

Yes, the Lenco 15271-001 is specifically designed for dual actuator trim tab setups, ensuring compatibility and reliable performance for your boat’s trim control system.

What are the installation benefits of the Lenco LED Indicator Switch Kit with Pigtail?

The kit includes a pigtail connector for quick, plug-and-play installation, making it easy to replace or add controls while ensuring a secure, corrosion-resistant connection suitable for marine environments.

How does the Lenco LED Indicator Switch Kit improve control for dual actuator systems?

The Lenco LED Indicator Switch Kit provides intuitive tactile feedback along with LED indicators, ensuring clear visibility and precise control over your dual actuator trim tabs in all lighting conditions, enhancing boat handling and stability.

Is the Lenco LED Indicator Switch Kit suitable for marine environments and resistant to corrosion?

Yes, the switch kit features a marine-grade, corrosion-resistant design that performs reliably in saltwater and freshwater conditions, making it ideal for all marine environments.

Popular right now
Lots of people have looked at this recently

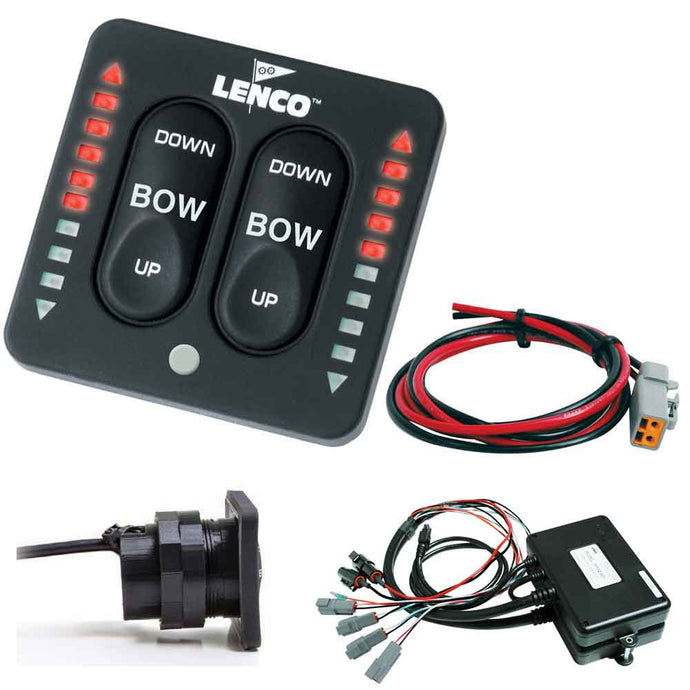

Lenco LED Indicator Two-Piece Tactile Switch Kit with Pigtail for Dual Actuator Systems - 15271-001

$523.99 ~~$929.78~~

SKU: 62836

Manufacturer Part #: 15271-001

Lenco LED Indicator Two‑Piece Tactile Switch Kit with Pigtail – Dual Actuator Systems (15271‑001)

The Lenco LED Indicator Two‑Piece Tactile Switch Kit with Pigtail (Model 15271‑001) is a premium control upgrade designed for dual‑actuator marine trim tab systems. This kit combines responsive tactile switches with bright LED indicators, providing intuitive, ergonomic control and clear visual feedback for both left and right tab actuation right from the helm.

Featuring a two‑piece design, this switch kit allows left and right controls to be positioned for optimal accessibility and comfort, while the integrated LED indicators give real‑time status of tab deployment. The included pigtail wiring harness simplifies installation and connection, reducing wiring complexity and improving system integration.

Built with marine‑grade, corrosion‑resistant materials, this switch kit is engineered to withstand the harsh conditions of both freshwater and saltwater environments, delivering long‑lasting performance and reliability. Whether you’re replacing an older control panel or upgrading to a more advanced switch solution, the Lenco 15271‑001 Two‑Piece Tactile Switch Kit provides enhanced precision, visibility, and control for dual‑actuator trim tab systems.

Key Features:

Designed for dual‑actuator marine trim tab systems
Two‑piece tactile switch setup for separate left/right control
Integrated LED indicators for real‑time deployment feedback
Includes pigtail wiring harness for easier installation
Marine‑grade, corrosion‑resistant construction
Ideal as an upgrade or replacement switch kit

The Lenco 15271‑001 LED Indicator Two‑Piece Tactile Switch Kit delivers precise control, visual clarity, and marine durability, giving boaters optimal trim tab management for better handling and ride quality.

Technical Specifications

Feature	Details
Model Number	15271-001 (Replaces 15171-001)
System Type	12V or 24V DC (Dual Actuator per tab)
Components	(1) Tactile Keypad & (1) Separate Control Box
Hole Cut-Out	2-1/16" Diameter
Mounting Depth	Low profile (Requires minimal dash depth)
Wiring	36" Power Pigtail included
Warranty	3-Year Limited Warranty

Key Features

Two-Piece Modular Design: By separating the keypad from the control box, Lenco allows for a very shallow mounting profile at the helm. This is ideal for thin dashboards or consoles crowded with other electronics.
Dual Actuator Management: The dedicated control box is specifically engineered to handle the higher amperage and synchronization requirements of four actuators (two per tab), ensuring level deployment and preventing blade torque.
LED Position Feedback: High-intensity LED displays provide real-time visual confirmation of your tab settings. The photo eye automatically dims the LEDs at night and brightens them for daytime visibility.
Built-in Auto-Retractor: Automatically raises the tabs to the fully "Up" position when the engine's ignition is turned off, protecting the actuators from marine growth and damage.
Solid State Engineering: No moving parts inside the control box makes the system highly resistant to shock, vibration, and moisture.

Pro-Tip for Dual Actuator Systems:

"Because a dual-actuator system draws more current than a single-actuator setup, ensure your power leads are connected to a high-quality circuit breaker and that your wire gauge is sufficient for the total run. The 15271-001 is the only way to ensure your tabs move in perfect synchronization, which prevents the stainless steel blades from warping under uneven pressure."

Installation & Compatibility

Plug & Play: Features waterproof Deutsch connectors for a simple, error-free connection between the keypad, control box, and actuators.
Retrofit Friendly: This kit is the standard replacement for older two-piece Lenco dual-actuator systems.
Voltage Sensing: The system is "universal" in that it automatically senses and operates on either 12V or 24V DC power.

In the Box: 15271-001 Kit

(1) LED Indicator Keypad: Dual-actuator specific interface.
(1) Dual Actuator Control Box: The specialized "brain" for 4-actuator systems.
(1) 36" Power Pigtail: For connection to the boat's DC power system.
(1) Installation Hardware: Includes gaskets and wiring connectors.
Note: To complete a full installation, you will also require (4) Lenco Actuators and the appropriate Extension Harnesses.

Selling fast!
Grab yours while you can

Reviews (0)

Accessories

Lenco Replacement LED Key Pad for 15270-001 & 15271-001 - 30343-001

Lenco Replacement Control Box for 123DR-V2 - 30342-001
