Lenco Replacement Control Box for 123DR-V2 - 30342-001
Manufacturer Part #: 30342-001
Couldn't load pickup availability

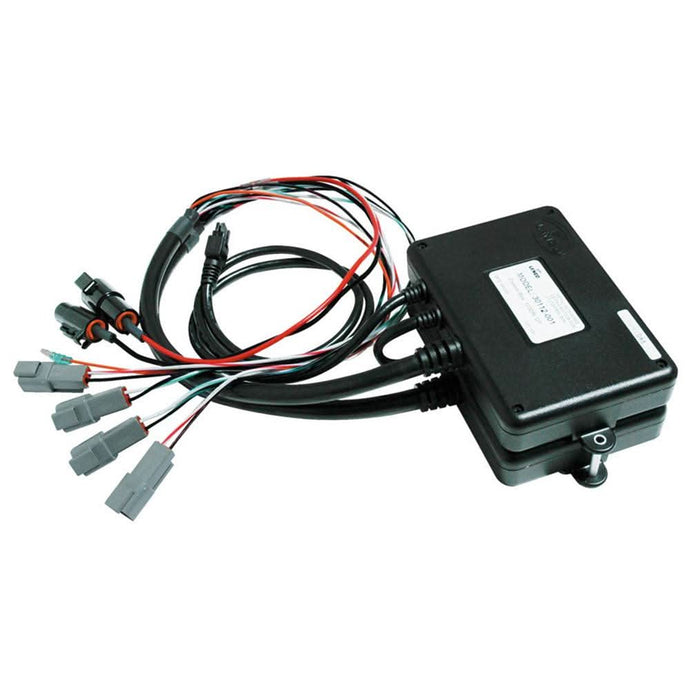

Lenco Replacement Control Box for 123DR-V2 - 30342-001
The Lenco Replacement Control Box for 123DR-V2 - 30342-001 is a high-performance, waterproof replacement unit designed for seamless integration with existing 123DR-V2 wiring. It serves as the central processing unit that translates commands from your helm's tactile switch into synchronized movement for dual-actuator setups.
Engineered for the marine environment, this control box features fully encapsulated electronics to prevent damage from salt, moisture, and vibration. It is a vital component for ensuring your boat stays level and efficient, even in heavy seas.
Compatibility
This control box is the direct replacement component for the following Lenco systems:
-
Switch Kit 15270-001: Single Actuator LED Indicator Switch.
-
Switch Kit 15271-001: Dual Actuator LED Indicator Switch.
-
Keypad 30343-001: Pairs specifically with the LED tactile keypad interface.
Key Features
-
Dual Voltage Compatibility: Works seamlessly with both 12-Volt and 24-Volt electrical systems.
-
Auto-Retract Logic: Built-in circuitry that automatically retracts the trim tabs when the ignition is turned off, preventing damage to the actuators and blades during hauling or storage.
-
Synchronized Movement: For dual-actuator systems, this box ensures that both motors on a single tab move in perfect unison to prevent the stainless steel blade from twisting.
-
Diagnostic Protection: Protects the system against short circuits and over-current scenarios that could otherwise damage your actuators or helm keypad.
Key Features
-
Dual Actuator Mastery: Specifically programmed to handle the power requirements of two actuators per trim tab.
-
Plug-and-Play Design: Uses industry-standard Deutsch connectors for quick, error-free replacement.
-
Universal Voltage: Compatible with both 12-volt and 24-volt electrical systems.
-
Instant Response: Precision engineering ensures zero-lag between switch input and actuator movement.
Technical Specifications
| Feature | Specification |
| Manufacturer | Lenco Marine |
| Part Number | 30342-001 |
| Compatible System | 123DR-V2 Dual Actuator Series |
| Operating Voltage | 12V / 24V DC |
| System Configuration | Dual Station / Dual Actuator |
| Weight | 1.65 lbs |
| Dimensions | Approx. 5" H x 7" W x 10" L |
| Connector Type | Waterproof Deutsch Connectors |
In the Box: 30342-001
-
(1) Lenco 123DR-V2 Replacement Control Box
-
Note: This is the Control Box only. It does not include the helm keypad, power pigtail, or extension harnesses.
Installation & Maintenance Note
When installing the Lenco Replacement Control Box for 123DR-V2 - 30342-001, ensure the control box is mounted on a vertical surface with the wires facing downward. This orientation is critical to prevent moisture from pooling at the wire entry points and is required to maintain the manufacturer's warranty.
Pro-Tip for Troubleshooting:
"Before replacing the 30342-001, check the 'Orange' wire in your power pigtail. This wire connects to your ignition's accessory power and triggers the auto-retract. If this connection is loose, your system may appear dead even if the control box is functioning perfectly. If you decide to replace the box, ensure you mount it in a dry location—while the connectors are waterproof, the box itself should be protected from direct bilge water."
