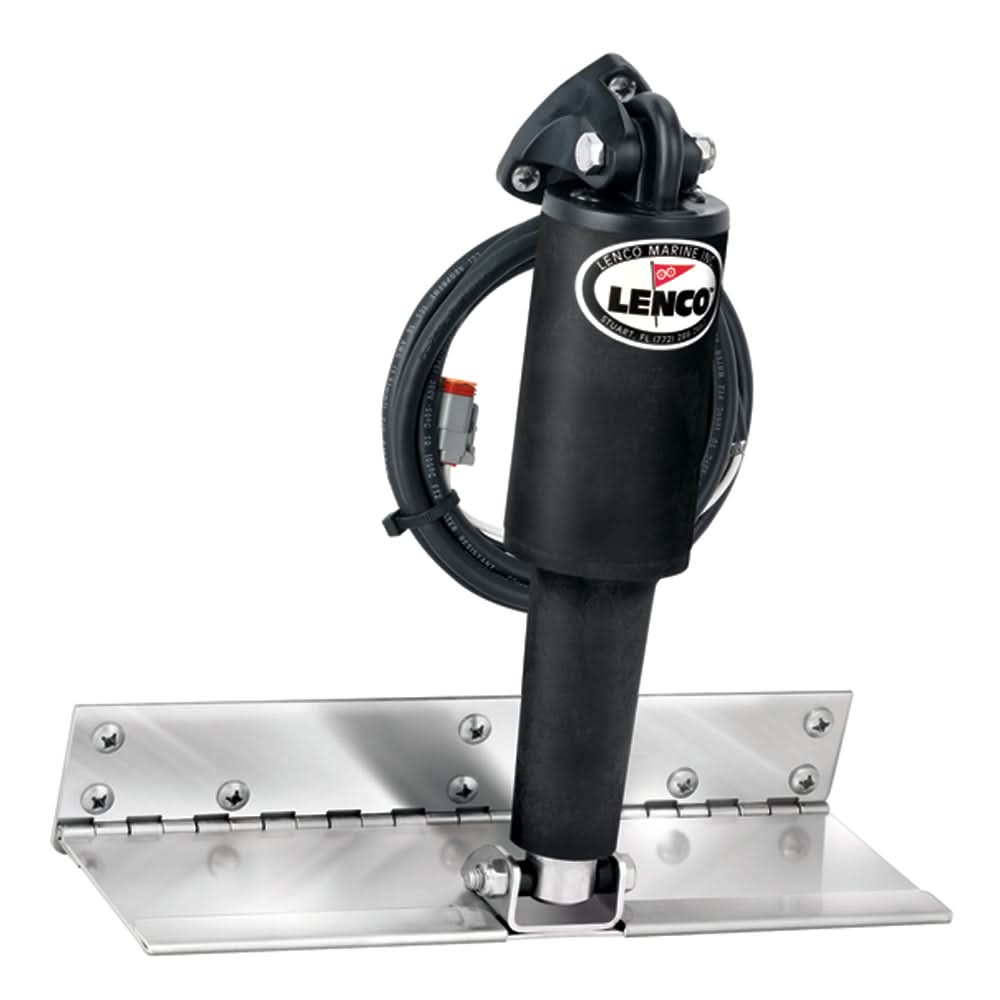

Lenco 4" x 12" Limited Space Trim Tab Kit without Switch Kit 12V - Electro-Polished - Short Actuator - 15088-101
Manufacturer Part #: 15088-101
Couldn't load pickup availability
4" x 12" Limited Space Trim Tab Kit w/o Switch Kit -12V - Electro-Polished - Short Actuator
Lenco Electric Limited Space Trim Tab Kits are ideal for boats with a swim platform and/or ladder. They can be fitted to transoms that have a limited mounting area. Blades are 12 gauge - 304 SS with front of blade folded to provide a smooth trailing edge and 1/8" diameter hinge pin. Fast response electric actuators for precise control. All units have Plug and Play connections and are fully submersible.
Kit Contents:
- 2 each of 12-gauge 304 stainless steel trim tab blades
- 2 each of #15057-001 XD actuator with 6' lead and Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 2 each of #15085-001 (116) upper mounting bracket with gland seal
- 1 each of the Lenco owner’s / installation manual
- All necessary stainless steel mounting hardware
Specifications:
- Suggested Boat Length: 14' to 25'
- Length of Tab: 4"
- Width of Tab: 12"
- Minimum Transom Height: 13"
- Blades: 12 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Actuators: 12-volt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Lenco 4" x 12" Limited Space Trim Tab Kit without Switch Kit 12V - Electro-Polished - Short Actuator - 15088-101 is backordered and will ship as soon as it is back in stock.
