Lenco LED Indicator Integrated Tactile Switch Kit w/Pigtail for Single Actuator Systems - 15170-001

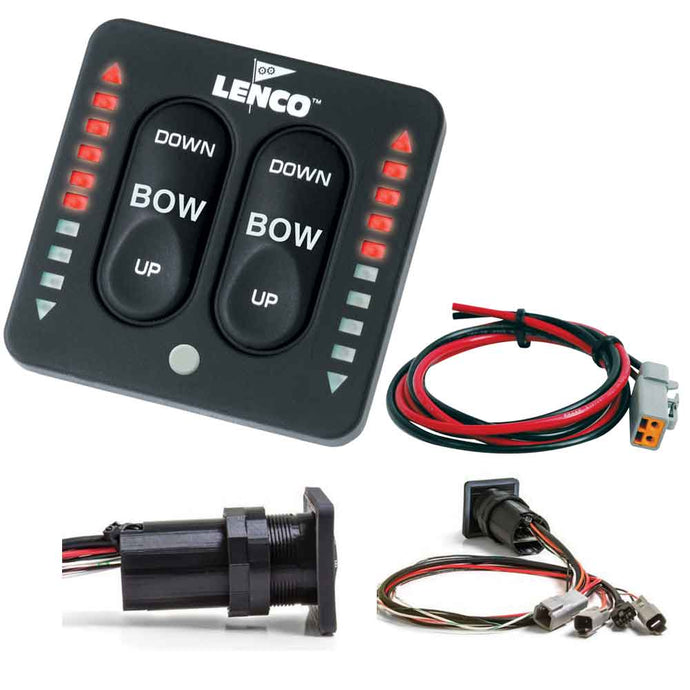

The Lenco LED Indicator Integrated Tactile Switch Kit (15170-001) is a high-performance, all-in-one control solution for single-actuator trim tab systems. Unlike older systems that require a separate, bulky control box, this kit integrates the control box functionality directly into the keypad bezel, saving space and simplifying installation.

Product Overview: Lenco 15170-001 Switch Kit

This maintenance-free switch technology improves accuracy and provides instant response. It features high-intensity LED displays that show your exact trim tab position, along with a photo eye that automatically adjusts LED brightness based on ambient light conditions for optimal visibility day or night.

• All-In-One Design: Eliminates the need for an external control box.

• Automatic Tab Retraction: Built-in feature retracts tabs when the ignition is turned off.

• Plug-and-Play: Features waterproof Deutsch connectors for a quick and secure installation.

• Backlit Keypad: Automatically illuminates for night viewing.

Lenco 15170-001 Integrated Switch Kit is the standard choice for most single-actuator setups, requiring 4.08 inches of clearance behind the console. If your console is shallow, you may instead need the Lenco Two-Piece Switch Kit, which uses an external box to reduce the mounting depth to 2.33 inches.

Technical Specifications

The following specs apply to the 15170-001 integrated model:

• System Type: 12-Volt and 24-Volt Single Actuator Systems

• Bezel Size: 2.75" x 2.75" (Standard Lenco footprint)

• Hole Cut-Out: 2-1/16" diameter

• Mounting Depth: 4.08" clearance required behind the keypad

• Cabling: Includes 36" power pigtail and 30" wiring harness from the bezel

• Connectors: Waterproof Plug & Play Deutsch connectors

• Compliance: CE Certified

• Compatibility: Not compatible with pre-2016 Lenco switch components
