Sea Catch is a revolutionary line of quick-release hooks designed for the heavy-duty maritime industry. Unlike standard hooks, Sea Catch uses a patented toggle-linkage mechanism that allows a load to be released safely and reliably even while under extreme tension. This makes it an essential tool for towing, anchor handling, fast rescue craft deployment, and heavy-duty lifting.
At Anchor Express, we stock a wide range of Sea Catch models, from the compact TR3 to the massive TR10, catering to professional mariners who prioritize mechanical precision and safety.
1. Why Sea Catch? The Toggle Release Advantage
The genius of the Sea Catch design is its simplicity and reliability in high-stress marine environments.
-
Release Under Load: Designed specifically to release objects or lines while they are under full tension with minimal effort.
-
No Springs: There are no internal springs to rust, lose tension, or fail. The mechanism relies on mechanical leverage.
-
Multi-Directional Release: Can be tripped via a lanyard from almost any angle—perpendicular or parallel to the load.
-
Safety First: Every unit features a hitch-pin safety lock to prevent accidental release during transport or rough seas.
2. Popular Sea Catch Models & Specs
| Model |
Recommended Shackle |
Safe Working Load (SWL) |
Break Load |
| TR3 |
1/4" |
1,302 lbs (0.65 tons) |
6,510 lbs |

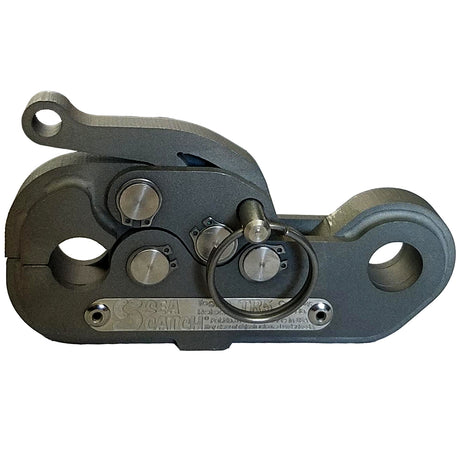

| TR5 |
7/16" |
3,323 lbs (1.66 tons) |
16,618 lbs |
| TR7 |
5/8" |
7,042 lbs (3.52 tons) |
35,210 lbs |

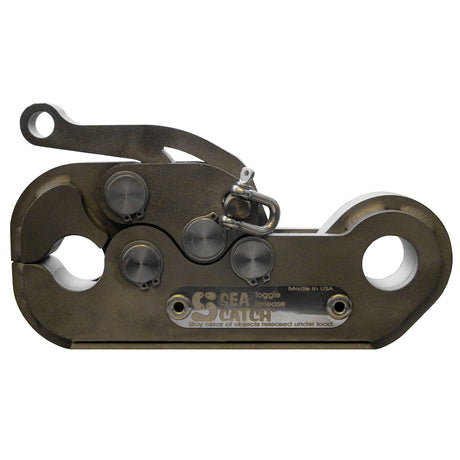

| TR8 |
3/4" |
9,574 lbs (4.78 tons) |
47,870 lbs |
| TR10 |
1" |
15,840 lbs (7.92 tons) |
79,200 lbs |
3. Specialized Configurations
-

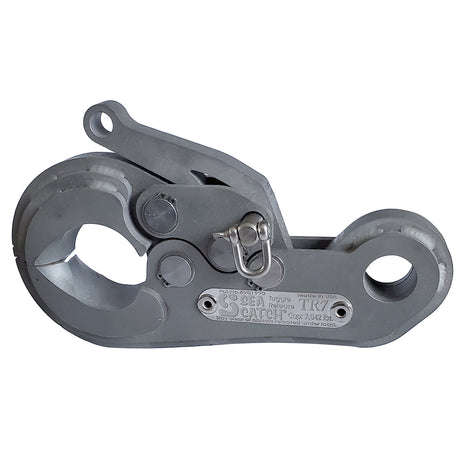

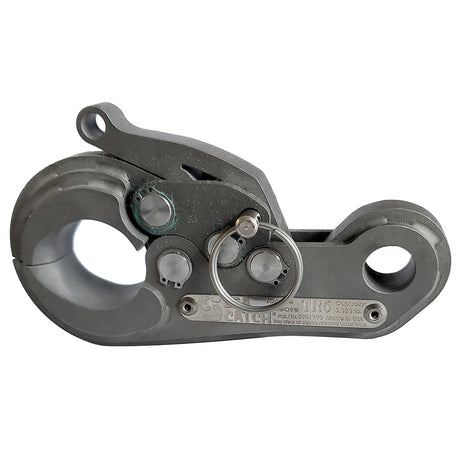

Large Mouth (LM) Models: Feature an enlarged jaw opening to accommodate oversized shackles or heavy thimbles.
-
Air/Hydraulic Activated: For automated or remote-controlled systems, Sea Catch offers units that can be tripped using pneumatic or hydraulic cylinders rather than a manual lanyard.
-

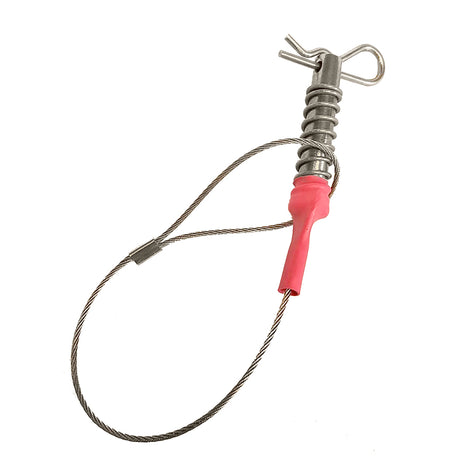

Spring-Loaded Safety Pins: An optional upgrade for 2026 that ensures the safety pin stays securely in place until you are ready to arm the device.
Sea Catch Quick Release Hooks are the gold standard for controlled load release in the most demanding marine applications. At Anchor Express, we provide professional-grade Sea Catch hardware precision-cut from aerospace-grade stainless steel. Used globally for towing, buoy laying, and subsea vehicle deployment, these hooks eliminate the dangers of "kick-back" and manual unhooking under load. Whether you are outfitting a commercial tug or a research vessel, Sea Catch’s lineup offers the ultimate in mechanical reliability and low-friction operation.
