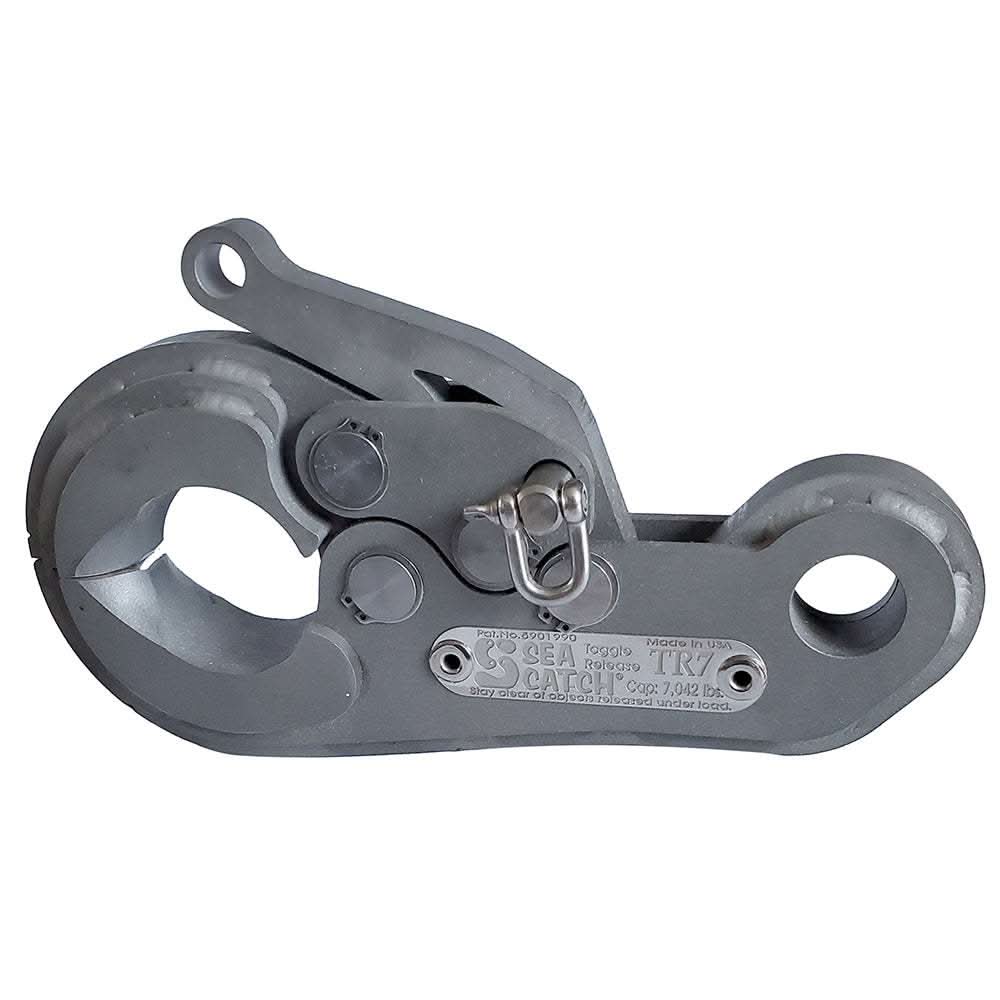

Sea Catch TR7LM with Safety Pin - Large Mouth - TR07LM

TR7LM with Safety Pin - Large Mouth (1.6" mouth diameter)

The LM models (LM = Large Mouth) are provided with a front jaw enlarged to receive straps, cable or fiber line. Additional side plates at the jaw area are provided to spread the load and minimize chafing.

Features:

• Designed for use with a 5/8" shackle at rear of device
• Perpendicular or parallel release directions

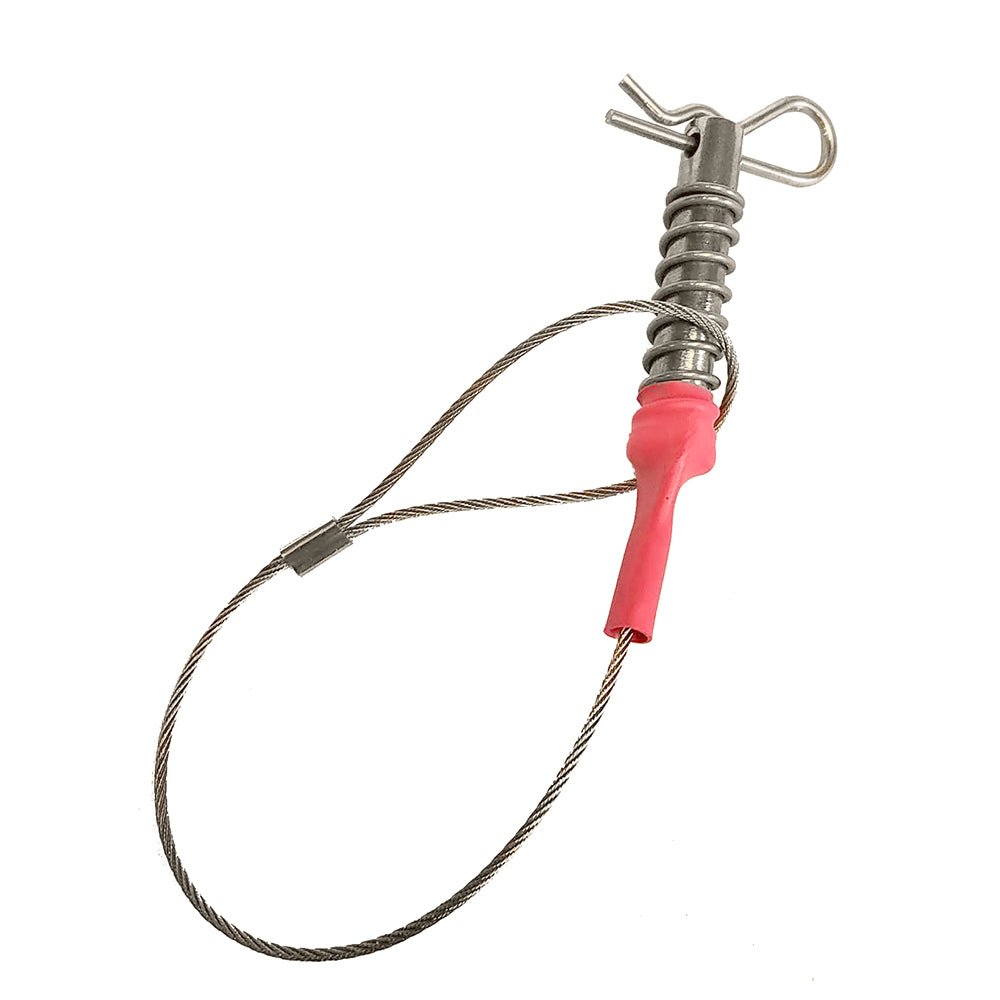

• Hitch pin lock for device locking safety
• Computer generated parts precision-cut from aerospace grade stainless steel plate
• Low friction, low effort lanyard-style release for maximum user safety
• On load/off load releasing
• All parts 100% stainless steel
• No springs
• Break Load - 35,210 pounds and SWL 7,042 pounds

Product : SEA CATCH TR7LM W/SAFETY PIN W/ 5/8" SHACKLE
Manufacturer : Sea Catch
Manufacturer Part No : TR07LM
