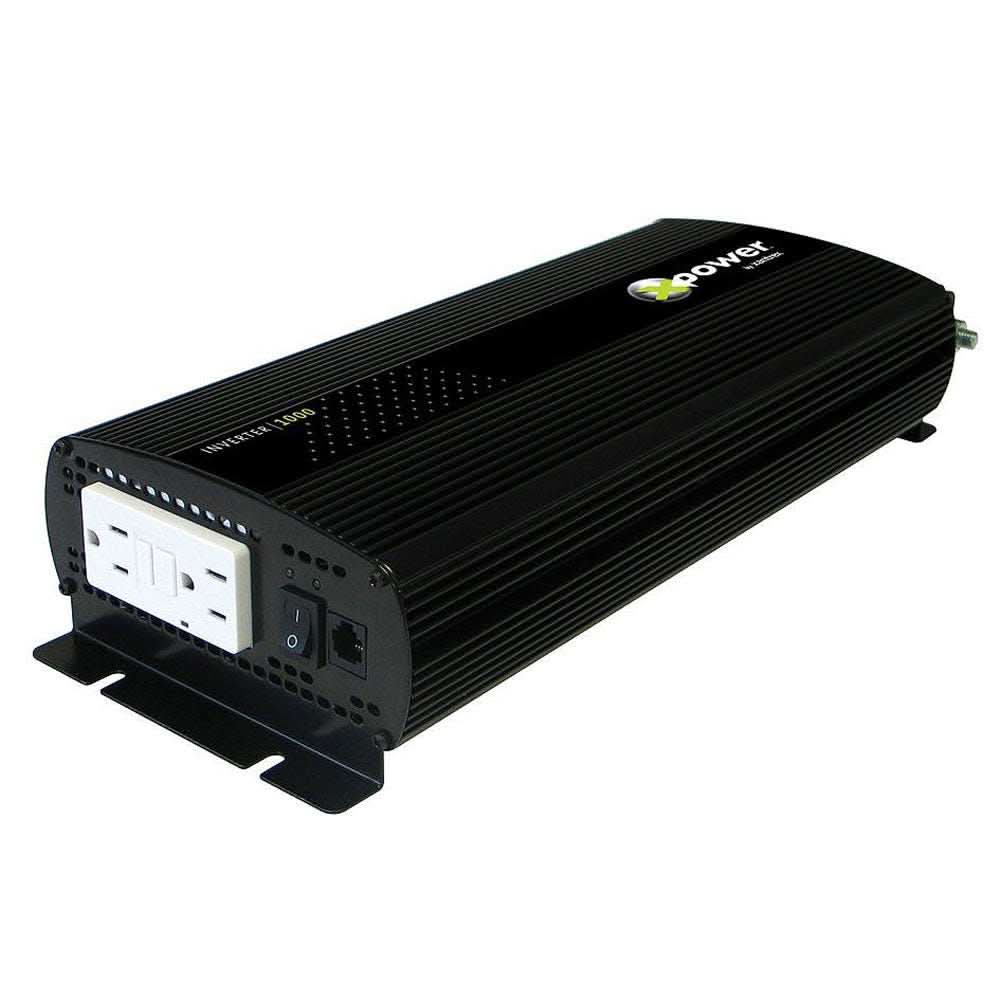

Xantrex XPower 1000 Inverter GFCI & Remote ON/OFF UL458 - 813-1000-UL

Xantrex XPower 1000 Inverter – GFCI & Remote ON/OFF – 813-1000-UL

The Xantrex XPower 1000 Inverter (813-1000-UL) is a high-performance 1,000W inverter designed for marine, RV, and off-grid applications. With UL458 certification, integrated GFCI protection, and remote ON/OFF capability, it provides safe and convenient AC power wherever mobility and reliability are essential.

Delivering clean AC power from a 12V DC battery system, the XPower 1000 is ideal for powering sensitive electronics, tools, and appliances while protecting users and equipment from ground faults. Its compact and rugged design allows flexible installation in cabins, control panels, or vehicle interiors.

Perfect for installations requiring UL458 compliance, onboard safety, and remote control, the XPower 1000 is a complete solution for mobile and off-grid AC power needs.

🔧 Technical Specifications

Electrical

• Inverter Type: True Sine Wave

• Continuous Power Output: 1,000 watts

• Surge Power: 2,000 watts

• DC Input Voltage: 12 VDC

• AC Output Voltage: 120 VAC ±5%

• Output Frequency: 60 Hz ±0.05%

• Maximum AC Output Current: 8.3 amps

• Peak Efficiency: Up to 90%

• No-Load Power Draw: Low idle consumption

GFCI & Remote

• GFCI Protection: Integrated

• Remote On/Off: Included

• Safety Features: Overload, short-circuit, over-temperature, reverse polarity, low battery shutdown

Connectivity

• AC Connections: Dual outlets and hardwire terminal

• DC Connections: Battery terminals

• Optional Accessories: Remote display panel

Environmental

• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)

• Cooling: Variable-speed temperature-controlled fan

Physical

• Dimensions (L × W × H): Approx. 13.0″ × 7.0″ × 3.5″

• Weight: Approx. 9.0 lb (4.1 kg)

• Mounting: Horizontal or vertical

• Color: Black

Certifications

• UL458 Certified

• FCC Class B

• Marine ignition protection

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• 1,000W continuous true sine wave AC output

• Integrated GFCI protection for enhanced safety

• Remote ON/OFF control included for convenient operation

• High surge capacity up to 2,000W for motor-driven devices

• Compact, rugged design for marine, RV, and off-grid applications

• UL458 certified for mobile power safety compliance

• Multiple built-in protections: overload, short-circuit, over-temp, reverse polarity

Product Features:

• Portable power for AC products

• Two GFCI AC receptacles for connecting multiple loads

• High surge capacity for products that require more power to start

• High efficiency - converts virtually all the battery's available power to AC

• Mounting brackets for convenient installation

• Heavy duty stud connectors

• Remote on/off switch included


Protection Features:

• Overload and over temperature shutdown

• Over voltage protection (15.0 VDC)

• Low voltage alarm (11.0 VDC)

• Low voltage cut-out (10.5 VDC)


Product Applications:

• Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans

• Handheld Power Tools: drills, jigsaws, sanders and buffers

• Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment

• Office Equipment: computers with 17" monitors, facsimile machines



WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Xantrex
Manufacturer Part No : 813-1000-UL
UPC : 715535896430
