Xantrex Statpower Prosine 1800 GFCI - 806-1800
Manufacturer Part #: 806-1800
Couldn't load pickup availability
Xantrex Statpower Prosine 1800 GFCI - 806-1800

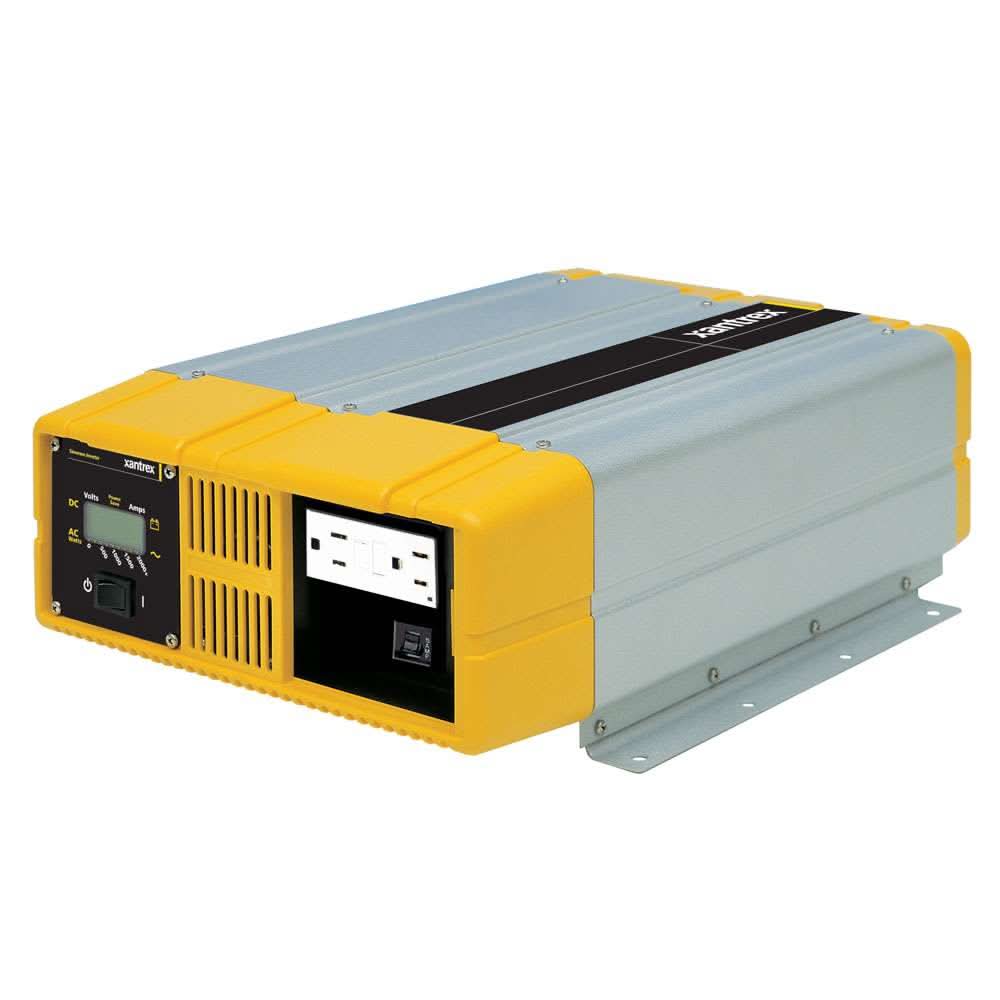

The Xantrex Statpower Prosine 1800 GFCI (806-1800) is a high-performance, 12V pure sine wave inverter engineered for both recreational and industrial applications. It is specifically designed to provide "utility-grade" power, making it safe for sensitive electronics like laptops, high-definition TVs, and medical equipment.
Product Overview
The Xantrex Statpower Prosine 1800 GFCI is highly regarded for its clean power output and compact, lightweight design. Utilizing high-frequency switching technology, it is significantly smaller than traditional inverters with similar power ratings. The integrated GFCI (Ground Fault Circuit Interrupter) outlet adds a critical layer of safety, especially in marine or RV environments where moisture may be present.
-
Pristine Power Quality: Delivers true sine wave output with less than 3% total harmonic distortion, ensuring interference-free operation for all AC equipment.
-
High Surge Capacity: Capable of a 2900-watt surge (for 5 seconds), providing the extra "kick" needed to start motorized loads like small refrigerators or power tools.
-
User-Friendly Monitoring: Features a backlit LCD display that provides real-time data on battery voltage, DC amperage, and output wattage. The panel is removable and can be remotely mounted for convenience.
-
Energy Efficient: Includes a Powersave mode that reduces the idle draw to just 1.5 watts when no load is detected, preserving your battery bank.
Technical Specifications
This 12V model is a staple for professional-grade off-grid power systems.
-
Continuous Power: 1800 Watts
-
Surge Rating: 2900 Watts
-
Input Voltage: 12 VDC (10 – 16 VDC range)
-
Output Voltage: 120 VAC / 60 Hz
-
Peak Efficiency: 89%
-
Safety Certifications: UL 458 (with Marine supplement) and CSA certified.
-
Protection Suite: Automatic shutdown for over-temperature, over-load, and short-circuit conditions, plus high/low battery voltage protection.
Additional Options
If your installation requires a different setup, there are variations of the Prosine 1800 available:
-
Xantrex Prosine 1800 Hardwire Transfer: Designed for permanent installation into an electrical system with a built-in transfer switch.
-
Xantrex Pro Sine 1800/24 Hard Wired Inverter: A 24-volt version of the 1800W inverter for larger battery banks.
Provides 1800 watts of sine wave AC power from a DC source
Offering superior quality true sine wave output, the Prosine 1800 stand-alone inverter is ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.
Product Features
- 1800 watt inverters (2900 watt surge capability)
- True sine wave AC output (crystal controlled)
- Removable LCD display can be mounted remotely for control and monitoring
- Unique DC terminals offer 180-degree connections for easy installation in tight places
- Powersave mode draws only 1.5 watts under no load
- Two year warranty
Protection Features
- Over temperature shutdown and automatic overload protection
- Over voltage and under voltage protection
- Short circuit and AC backfeed protection
With less than 3% total harmonic distortion, Prosine 1000 and 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes Prosine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.
Light and compact
Prosine inverters are lighter and more compact than other inverters with similar power ratings because they use high-frequency switching technology in the power conversion process.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Xantrex
Manufacturer Part No : 806-1800
UPC : 715535618001
Xantrex Statpower Prosine 1800 GFCI - 806-1800 is backordered and will ship as soon as it is back in stock.
