Xantrex Lithium-Battery - 240Ah - 12VDC - 883-0240-12
Manufacturer Part #: 883-0240-12
Couldn't load pickup availability

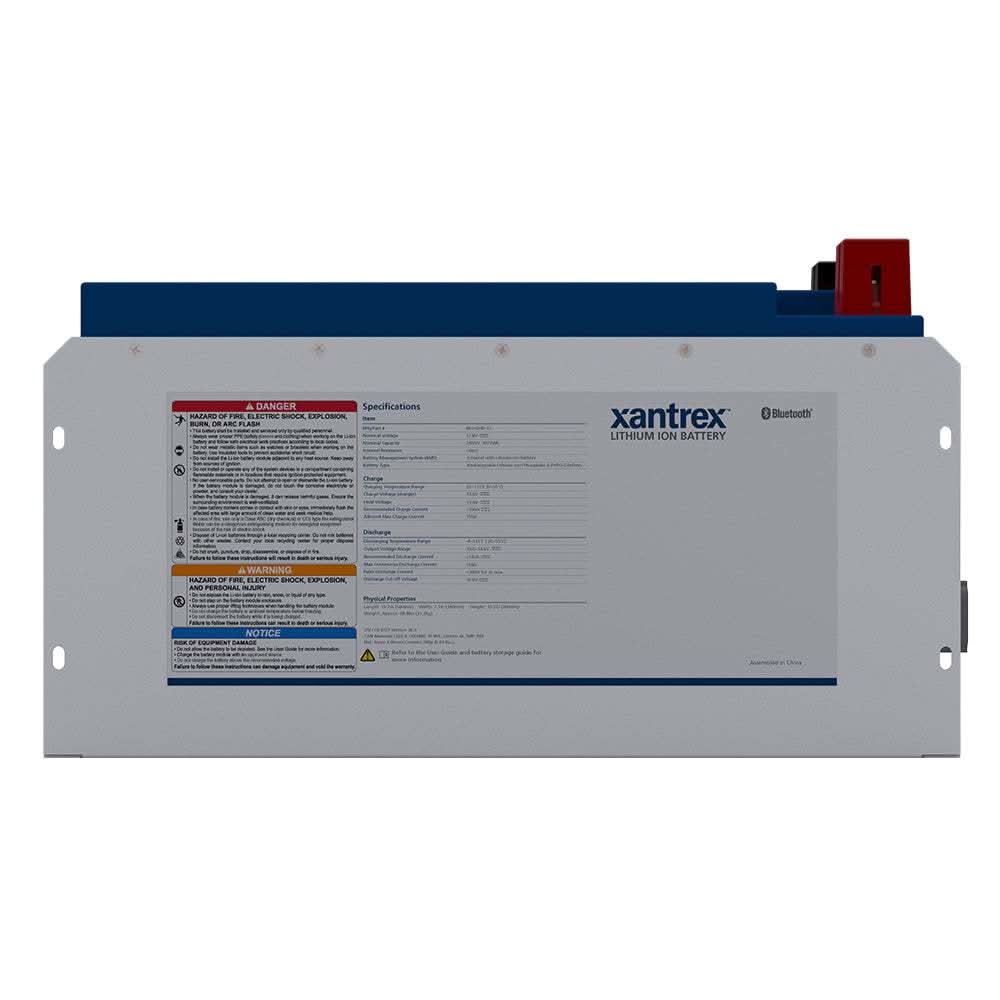

Xantrex Lithium-Battery - 240Ah - 12VDC - 883-0240-12
The Xantrex Lithium-Ion 240Ah Battery (883-0240-12) is a high-capacity, heavy-duty 12.8V energy storage solution designed for the most demanding mobile and marine applications. Offering 3072 Watt-hours of energy, it provides massive power density in a compact, rugged metal enclosure.
Product Overview
The Xantrex Lithium-Ion Battery - 240Ah utilizes premium Lithium Iron Phosphate (LiFePO4) chemistry and UL1973 certified cells. It is engineered to replace traditional lead-acid or AGM banks, offering roughly 10 times the cycle life and significantly faster charging capabilities.
-
Exceptional Durability: Rated for up to 6,000 cycles under ideal conditions, providing long-term reliability for off-grid living or long-range cruising.
-
Smart Connectivity: Features built-in Bluetooth, allowing you to monitor real-time data—including State of Charge (SOC), voltage, and temperature—directly from the Xantrex mobile app.
-
Integrated Protection: The internal Battery Management System (BMS) handles cell balancing and protects against over-voltage, under-voltage, and extreme temperatures.
-
Scalable Power: Supports parallel stacking of up to 4 batteries, allowing you to build a massive 960Ah battery bank for extended autonomy.
Technical Specifications
This 240Ah model is designed for high-current discharge and rapid replenishment.
-
Nominal Capacity: 240 Ah (3072 Wh)
-
Continuous Discharge: 150 Amps
-
Peak Discharge (3 sec): 300 Amps
-
Max Charge Current: 150 Amps (100A recommended)
-
Enclosure: Heavy-duty metal with dual metal handles
-
Weight: 69.4 lbs (31.5 kg) — significantly lighter than two Group 31 AGM batteries.
-
Dimensions: 19.7" L x 7.1" W x 10.3" H
Critical Accessories
To maximize the life of your lithium investment, consider these specific add-ons:
-
Heater Blanket (881-0180-12): Essential for maintaining charging performance in freezing temperatures.
-
Remote On/Off Switch (881-0267-12): Allows you to safely disconnect the battery bank from a remote location.
Lithium-Battery - 240Ah - 12VDC
More Power In Less Space - Xantrex manufactures a variety of lithium-ion batteries for mobile applications including marine, RV, truck, and specialty vehicles. We offer our lithium-ion batteries in popular Group 31 and Group 27 sizes as well.
Many RV manufacturers, boat builders, and specialty vehicle manufacturers exclusively use Xantrex batteries and other solutions for their power needs.
The Xantrex Lithium-Ion Iron Phosphate (LiFePO ) battery uses UL1973 certified cells. Equipped with redundant safety features, the Xantrex lithium battery is the safest on the market today. Specifically designed to withstand the harsh operating environments of mobile and marine applications, the Xantrex lithium battery lasts up to 6,000 cycles compared to the traditional lead-acid or AGM battery, which typically lasts 400-500 cycles. The Xantrex lithium battery offers exceptional power density and is also available with a heating blanket option if installation is outside the main cabin. With the Bluetooth connection enabled gathering real-time data from the battery is incredibly simple and always accurate.
Features:
- Internal BMS - Reduces footprint
- Cell Balancing - extends the lifetime of the battery
- LED's to the Monitor State of Charge
- Remote Panel - view status of the battery, turn the battery on and off
- Bluetooth - connect to the Xantrex mobile app to view the status of the battery
- Parallel Stack up to 2 batteries
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer : Xantrex
Manufacturer Part No : 883-0240-12
