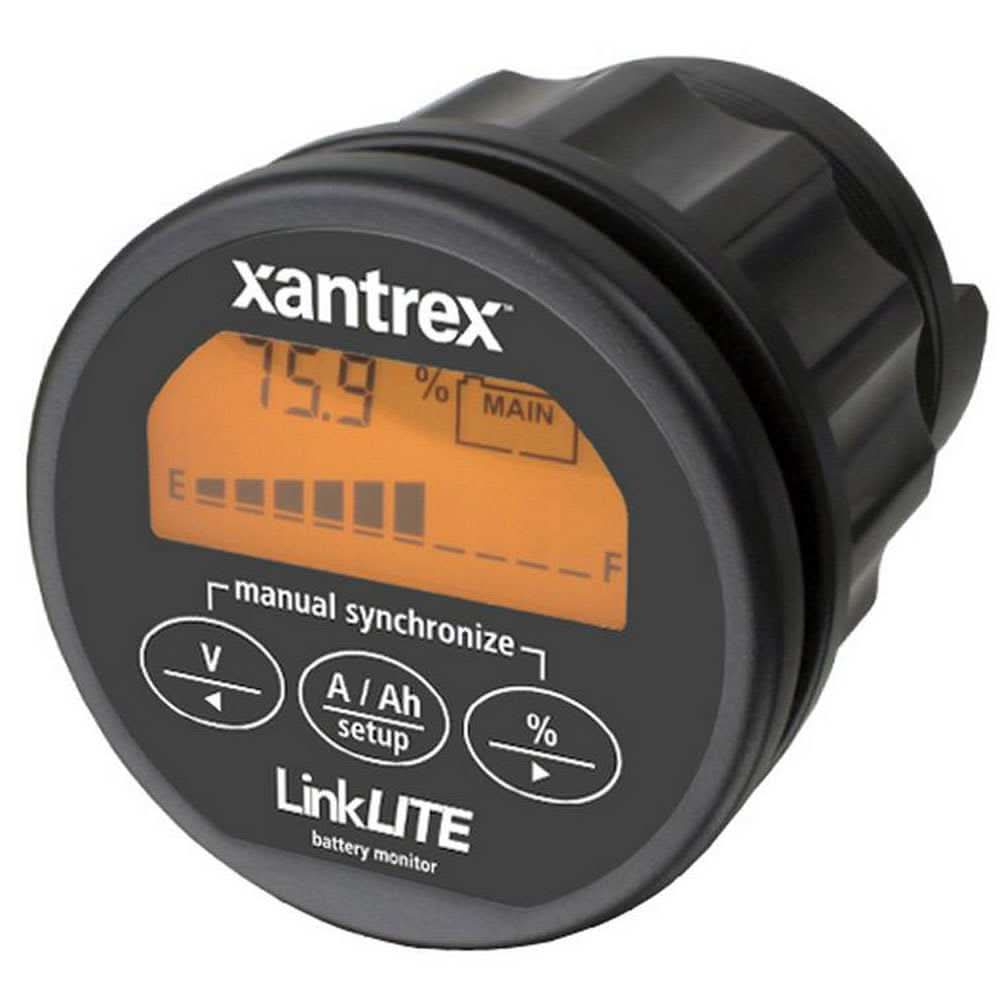

Xantrex LinkLITE Battery Monitor - 84-2030-00

Xantrex LinkLITE Battery Monitor – 84-2030-00

The Xantrex LinkLITE Battery Monitor is a compact and reliable battery monitoring system designed for marine, RV, and off-grid applications. It provides real-time monitoring of battery voltage, current, and state of charge, helping users manage power usage, extend battery life, and maintain system reliability.

With a clear digital display, the LinkLITE shows essential information including battery voltage, current draw, amp-hours, and percentage of charge remaining. Its straightforward interface makes it easy to install and operate, providing accurate monitoring for lead-acid, AGM, and gel batteries.

Ideal for small to medium battery systems, the Xantrex LinkLITE helps optimize energy usage in boats, RVs, off-grid cabins, and mobile power applications.

🔧 Technical Specifications

Electrical

• Monitor Type: Battery monitoring system

• Measured Parameters: Voltage, current, state of charge, amp-hours

• Battery Compatibility: Flooded, AGM, Gel

• DC System Voltage: 12 / 24 VDC

Display

• Type: Digital LCD

• Information Displayed: Battery voltage, current draw, amp-hours used, state of charge

Connectivity

• Shunt Included: Yes

• Remote Monitoring: Not required, compact standalone operation

• Communication Interface: Wired connection to battery system

Environmental

• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)

• Humidity: Up to 95% non-condensing

Physical

• Dimensions (H × W × D): Approx. 4.0″ × 3.0″ × 1.5″

• Weight: Approx. 0.9 lb (0.41 kg)

• Mounting: Panel mount

• Color: Black

Certifications

• Designed for use with UL-listed Xantrex battery systems

Warranty

• 1-Year Manufacturer Warranty

⭐ Key Features

• Real-time monitoring of voltage, current, amp-hours, and state of charge

• Compatible with lead-acid, AGM, and gel batteries

• Compact digital LCD display for easy system readout

• Includes shunt for precise current measurement

• Ideal for marine, RV, and off-grid battery systems

• Helps maximize battery life and optimize energy usage

• Easy installation with simple wiring

Performance Features

• Read your battery bank like a fuel gauge

• Provides critical information about the status of your battery bank

• Displays voltage, current, consumed amp hours and remaining battery capacity

• Two battery inputs

• Auto sensing battery voltage inputs

• Large backlit LCD Display

• Quick nut mounting construction

• Programmable alarm relay

• Shunt selection capability enables flexible system integration

• Splash proof front panel

• 500 Amp shunt included

• CE and e-mark certified

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Xantrex
Manufacturer Part No : 84-2030-00
UPC : 687873687912
