Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 1000W/50A - 817-1050

Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger – 12V – 1000W / 50A (817-1050)

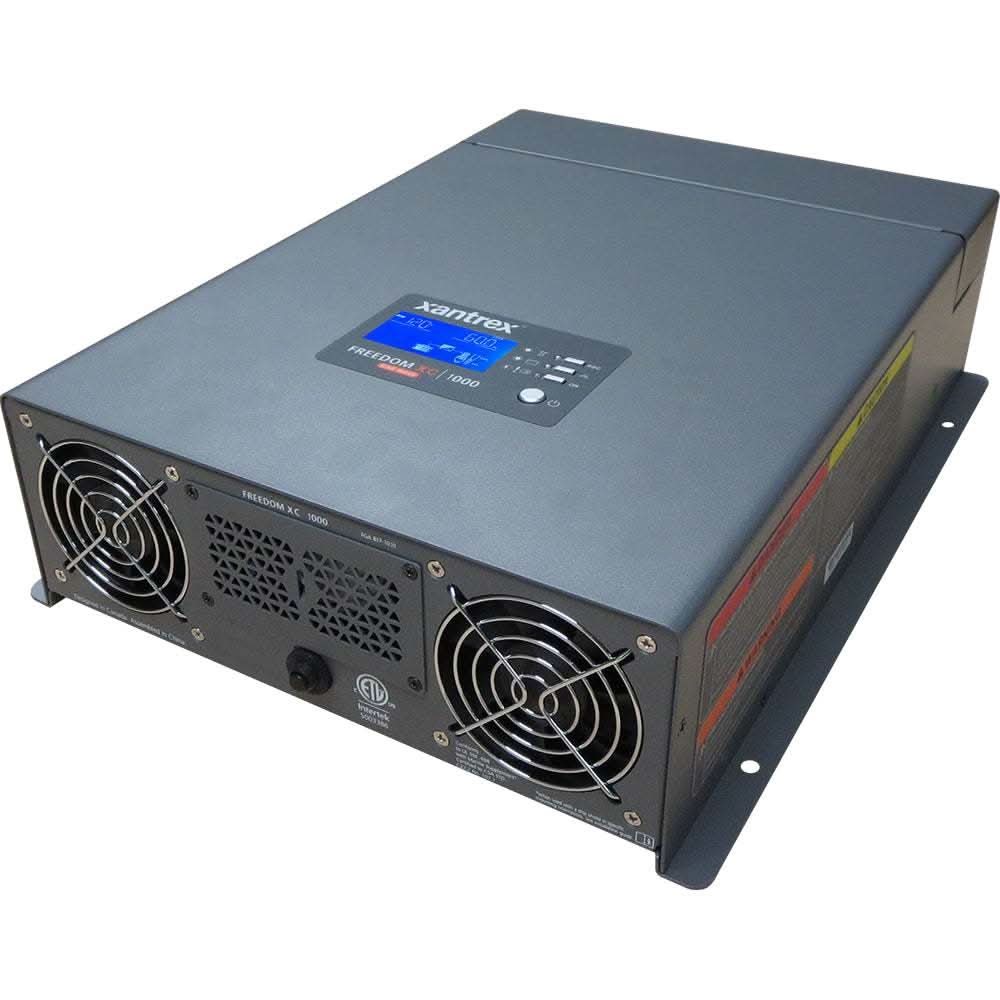

The Xantrex Freedom XC 1000 True Sine Wave Inverter/Charger (817-1050) is a compact, all-in-one power solution designed for marine, RV, commercial vehicle, and off-grid applications. Combining a 1,000-watt true sine wave inverter with a 50-amp multi-stage battery charger, the Freedom XC delivers clean, reliable AC power while efficiently managing battery charging from shore or generator power.

True sine wave output ensures safe operation of sensitive electronics, including laptops, navigation systems, TVs, medical devices, and audio equipment. The integrated automatic transfer switch provides seamless switching between inverter and AC input power, simplifying installation and improving system reliability.

Built for demanding mobile environments, the Freedom XC 1000 features marine ignition protection, robust electrical safeguards, and a compact footprint ideal for tight installations. With optional remote monitoring and advanced battery management, this inverter/charger is an excellent choice for dependable onboard and mobile power.

Key Performance Features

• True Sine Wave Output: Provides clean 120V AC power, ensuring your sensitive electronics run cooler, quieter, and more efficiently.

• Extended Surge Rating: Capable of delivering 2000 Watts of peak power for 2 seconds to start high-draw appliances like small refrigerators or power tools.

• 50A Multi-Stage Charging: Features a "smart" charger that can be programmed for Flooded, Gel, AGM, or Lithium (LiFePO4) batteries, ensuring your house bank is topped off quickly and safely.

• Integrated Transfer Switch: Automatically switches between shore power and battery power in less than 20 milliseconds, so your clocks and electronics don't reset when you unplug from the dock.

• Cold Climate Performance: Engineered to operate in temperatures as low as -4°F (-20°C), making it a favorite for four-season RVers and northern boaters.

• Dead Battery Charging: Unlike many chargers, the Freedom XC can initiate a charge on batteries that have dropped as low as 0 Volts.

🔧 Technical Specifications

Inverter

• Inverter Type: True Sine Wave

• Continuous Power Output: 1,000 watts

• Surge Power: 2,000 watts

• DC Input Voltage: 12 VDC

• AC Output Voltage: 120 VAC ±5%

• Output Frequency: 60 Hz ±0.05%

• Maximum AC Output Current: 8.3 amps

• Peak Efficiency: Up to 90%

• No-Load Power Draw: Low idle consumption

Battery Charger

• Charging Output: 50 amps

• Charger Type: Multi-stage smart charger

• AC Input Voltage: 120 VAC, 60 Hz

• Power Factor Corrected: Yes

• Battery Types Supported: Flooded, AGM, Gel (selectable)

Transfer & Connectivity

• Automatic Transfer Switch: Yes

• Transfer Time: < 30 ms

• AC Connections: Hardwire terminals

• DC Connections: Battery terminals

• Remote Panel Support: Optional Freedom XC remote

Protection & Safety

• Overload and short-circuit protection

• Over-temperature shutdown

• High and low battery voltage protection

• Ground fault protection

• Ignition protected (marine compliant)

Environmental

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Cooling: Variable-speed, temperature-controlled fan

Physical

• Dimensions (L × W × H): Approx. 13.5″ × 7.5″ × 4.0″

• Weight: Approx. 10 lb (4.5 kg)

• Mounting: Horizontal or vertical

Certifications

• UL 458

• Marine ignition protection compliant

• FCC Class B

Warranty

• 1-Year Manufacturer Warranty

Installation & Wiring Pro-Tips

• Wire Gauge Matters: For a 1000W inverter at 12V, you are pulling significant amperage. Use at least 1/0 AWG marine-grade tinned copper cables for runs under 5 feet to prevent voltage drop and overheating.

• Overcurrent Protection: You must install a fuse (typically a 150A ANL or MRBF fuse) on the positive cable as close to the battery bank as possible to protect the vessel from a short circuit.

• Remote Panel: While the unit has a built-in display, if you are mounting the XC in a lazarette or under a seat, consider the Xantrex Remote Panel (808-0817) to monitor your battery levels from the cabin.

• Ventilation: Ensure at least 3 inches of clearance around the cooling fans. This unit is high-efficiency, but it still generates heat when charging at 50A or inverting at full load.
