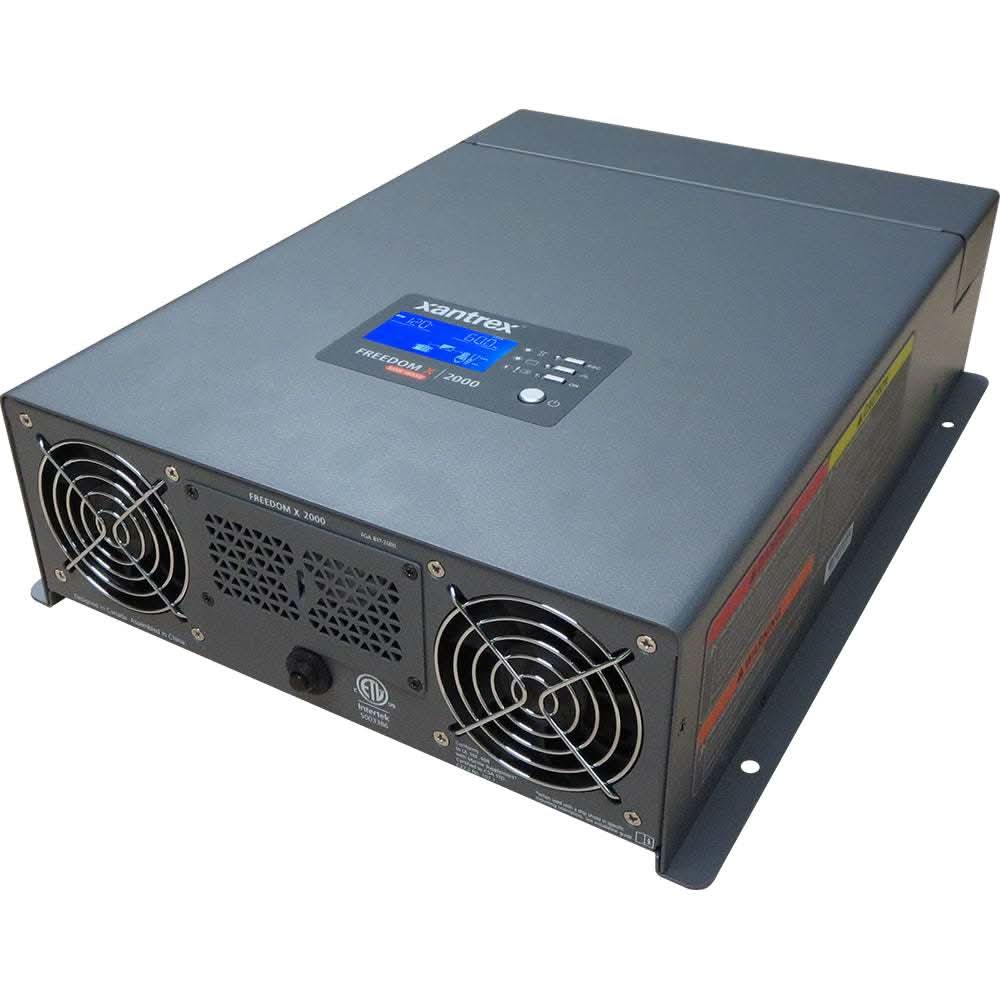

Xantrex Freedom X 2000 True Sine Wave Power Inverter - 24VDC - 120VAC - 2000W - 817-2000-21

The Xantrex Freedom X 2000 (817-2000-21) is a high-efficiency 24V power inverter designed for rugged mobile environments like work trucks, heavy-duty vehicles, and marine vessels. This unit is specifically engineered to provide "utility-grade" true sine wave power, making it safe for both sensitive electronics and high-startup motor loads.

Product Description

The Xantrex Freedom X 2000 24V offers premium performance in a lightweight, compact package. It features a 4000-watt surge capacity for up to 2 seconds, which is essential for starting difficult loads like residential refrigerators, microwaves, and power tools. With its wide 20-32 VDC input range, it remains fully operational even when paired with high-voltage modern alternators.

• Premium Pure Sine Power: Protects sensitive electronics and ensures motor-driven appliances run cooler and quieter.

• Intelligent Ignition Control: Includes a dedicated terminal to turn the inverter on/off via a 24V signal, preventing battery drain when the engine is off.

• Built-in 30A Transfer Switch: Automatically transitions between battery power and shore power/generator power to ensure an uninterrupted supply.

• All-Climate Performance: Cranks out full 2000W output in temperatures ranging from -4°F to 104°F (-20°C to 40°C).

Technical Specifications

The Xantrex Freedom X 2000 True Sine Wave Power Inverter - 817-2000-21 is the dedicated 24-volt variant of the Freedom X series.

• Continuous Power: 2000 Watts @ 40°C

• Surge Power (2 sec): 4000 Watts

• Input Voltage: 24 VDC (Nominal)

• Output Voltage: 120 VAC (Configurable to 110/108 VAC)

• Transfer Relay Rating: 30 Amp (24A continuous)

• Peak Efficiency: 92.4%

• Dimensions (with flanges): 14.6" L x 12.0" W x 3.9" H

• Net Weight: 15.9 lbs (7.2 kg)

• Certifications: ETL listed to UL458 (with Marine Supplement), CSA 107.1, and ABYC standards.
