Xantrex Freedom X 1000 True Sine Wave Power Inverter - 12VDC - 120VAC - 1000W - 817-1000

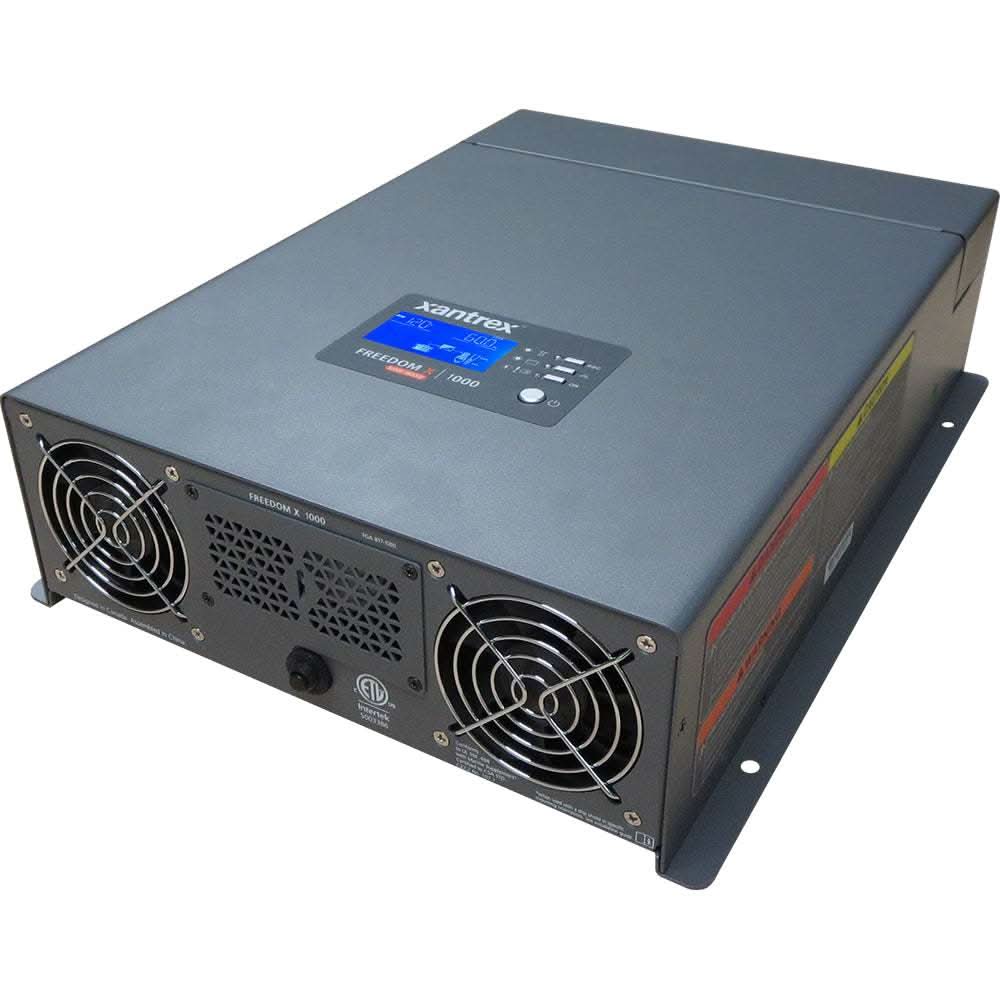

Xantrex Freedom X 1000 True Sine Wave Power Inverter – 12V – 1000W (817-1000)

The Xantrex Freedom X 1000 True Sine Wave Power Inverter (817-1000) delivers clean, reliable AC power from a 12-volt battery system, making it an excellent solution for marine, RV, truck, van, and off-grid power applications. Designed to power both everyday appliances and sensitive electronics, this inverter provides 1,000 watts of continuous output with a strong surge capacity for starting motors and compressors.

With true sine wave technology, the Freedom X 1000 produces utility-grade power that is safe for laptops, TVs, navigation equipment, medical devices, and audio/video electronics. Its compact and lightweight design allows for easy installation in tight spaces, while advanced internal protections ensure dependable operation in demanding mobile environments.

Built to Xantrex’s high reliability standards, the Freedom X 1000 offers quiet operation, high efficiency, and trusted performance for anyone needing dependable onboard or mobile AC power.

🔧 Technical Specifications

Electrical

• Inverter Type: True Sine Wave

• Continuous Power Output: 1,000 watts

• Surge Power: 2,000 watts

• DC Input Voltage: 12 VDC

• AC Output Voltage: 120 VAC ±5%

• Output Frequency: 60 Hz ±0.05%

• Maximum AC Output Current: 8.3 amps

• Peak Efficiency: Up to 90%

• No-Load Power Draw: Low idle consumption

Input & Output

• AC Receptacles: Dual GFCI-protected outlets

• Hardwire Capability: Yes

• DC Connection: Battery terminals

• Remote On/Off: Optional Freedom X remote panel

Protection & Safety

• Overload protection

• Short-circuit protection

• Over-temperature shutdown

• High and low battery voltage protection

• Ground fault (GFCI) protection

• Ignition protected (marine compliant)

Environmental

• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)

• Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)

• Cooling: Variable-speed, temperature-controlled fan

Physical

• Dimensions (L × W × H): Approx. 13.5″ × 7.5″ × 4.0″

• Weight: Approx. 9 lb (4.1 kg)

• Mounting: Horizontal or vertical

Certifications

• UL 458

• Marine ignition protection compliant

• FCC Class B

Warranty

• 1-Year Manufacturer Warranty

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring
