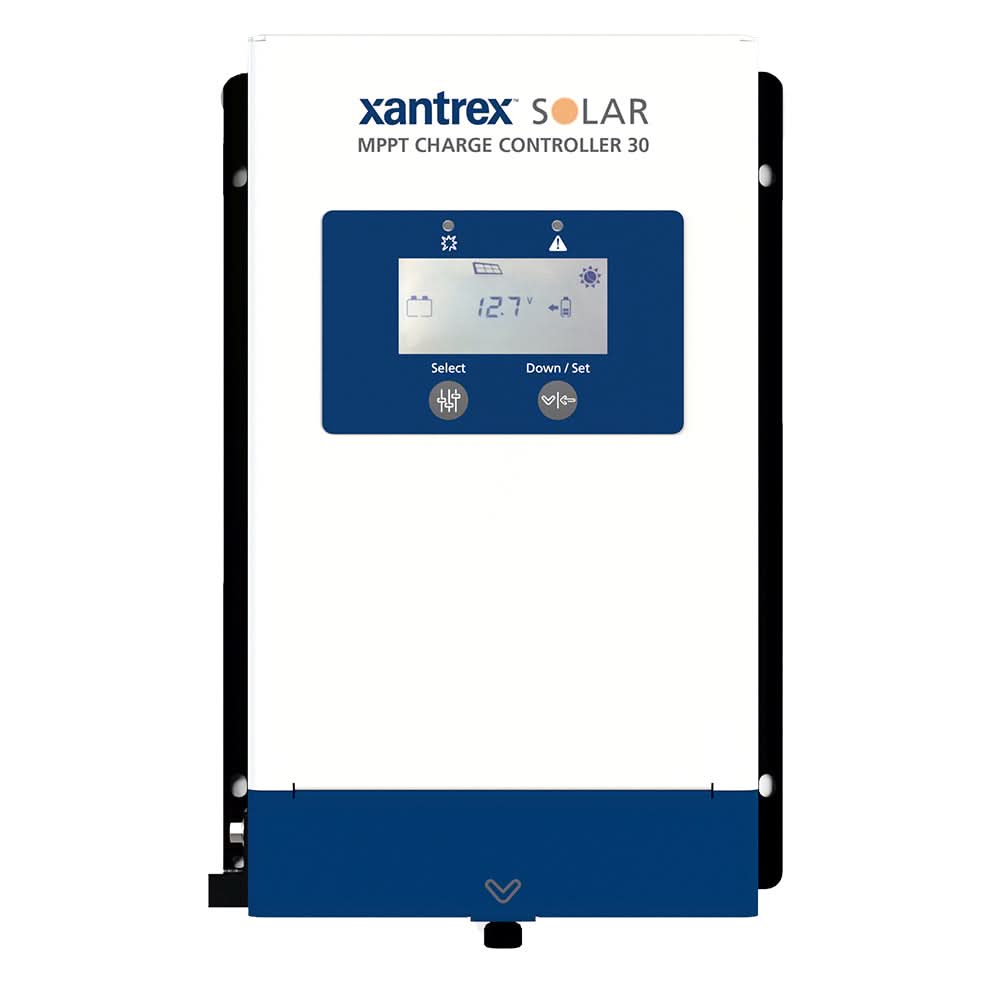

Xantrex 30A MPPT Charge Controller – 710-3024-01

The Xantrex 30A MPPT Charge Controller (Model 710-3024-01) is a high-efficiency solar charge controller designed to maximize the performance of your solar power system. Utilizing advanced Maximum Power Point Tracking (MPPT) technology, it can deliver 20–30% more energy harvest compared to traditional PWM controllers, making it ideal for marine, RV, work trucks, specialty vehicles, and off-grid solar setups.

Equipped with dual-battery bank charging, this controller can simultaneously charge a house battery and a starter battery. It features industry-leading PV array and battery protection, a built-in LCD display for real-time system data, and support for multiple battery chemistries including AGM, gel, flooded, and lithium iron phosphate (LiFePO₄).

🔧 Technical Specifications

Electrical

• Model: 710-3024-01

• Rated Charge Current: 30 A (Battery-1), 1 A (Battery-2)

• System Voltage: 12 V / 24 V auto-detect

• Battery Voltage Range: 8–32 V

• Max PV Open Circuit Voltage: 100 V

• MPP Voltage Range: (Battery voltage + 2 V) up to 72 V

• Max PV Input Power: 580 W (12 V), 1170 W (24 V)

• Rated Charge Power: 390 W (12 V), 780 W (24 V)

• Self-Consumption: 17 mA (12 V), 10 mA (24 V)

• Temperature Compensation: –3 mV/°C/2 V

• Grounding: Common negative

Battery Compatibility

• Supports AGM, gel, flooded lead-acid, and LiFePO₄ for the house battery

• Starter battery support: AGM, gel, flooded

Environmental

• Operating Temperature: –25 °C to 45 °C (fully-rated output)

• Storage Temperature: –30 °C to 80 °C

• Relative Humidity: ≤ 95 %, non-condensing

• Enclosure Protection: IP33

Mechanical

• Dimensions: 9.9″ × 6.5″ × 2.5″ (252 × 165 × 63 mm)

• Net Weight: ~3.3 lbs (1.5 kg)

• Cable Capacity: Battery 1 / PV up to 6 AWG; Battery 2 up to 12 AWG

⭐ Key Features

• Advanced Maximum Power Point Tracking (MPPT) for increased energy harvest vs PWM controllers

• 30 A rated output with dual battery bank support

• Automatic 12 V / 24 V system detection for flexible use

• Built-in LCD display for real-time voltage, current, and power metrics

• Supports multiple battery types: AGM, Gel, Flooded, LiFePO₄

• Best-in-class PV array and battery protections

• Compact, durable IP33 enclosure with common negative grounding

• Optional remote panel and temperature sensor accessories available

Features:

• Advanced Maximum Power Point Tracking (MPPT) technology increasing daily energy harvest by 20-30% compared to PWM technology
• Dual-battery bank charging to simultaneously charge house and starter batteries
• Best-in-class PV array and battery protections
• House battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate(LiFePO4)
• 5-year warranty

Product : XANTREX 30A MPPT CHARGE CONTROLLER
Manufacturer : Xantrex
Manufacturer Part No : 710-3024-01
