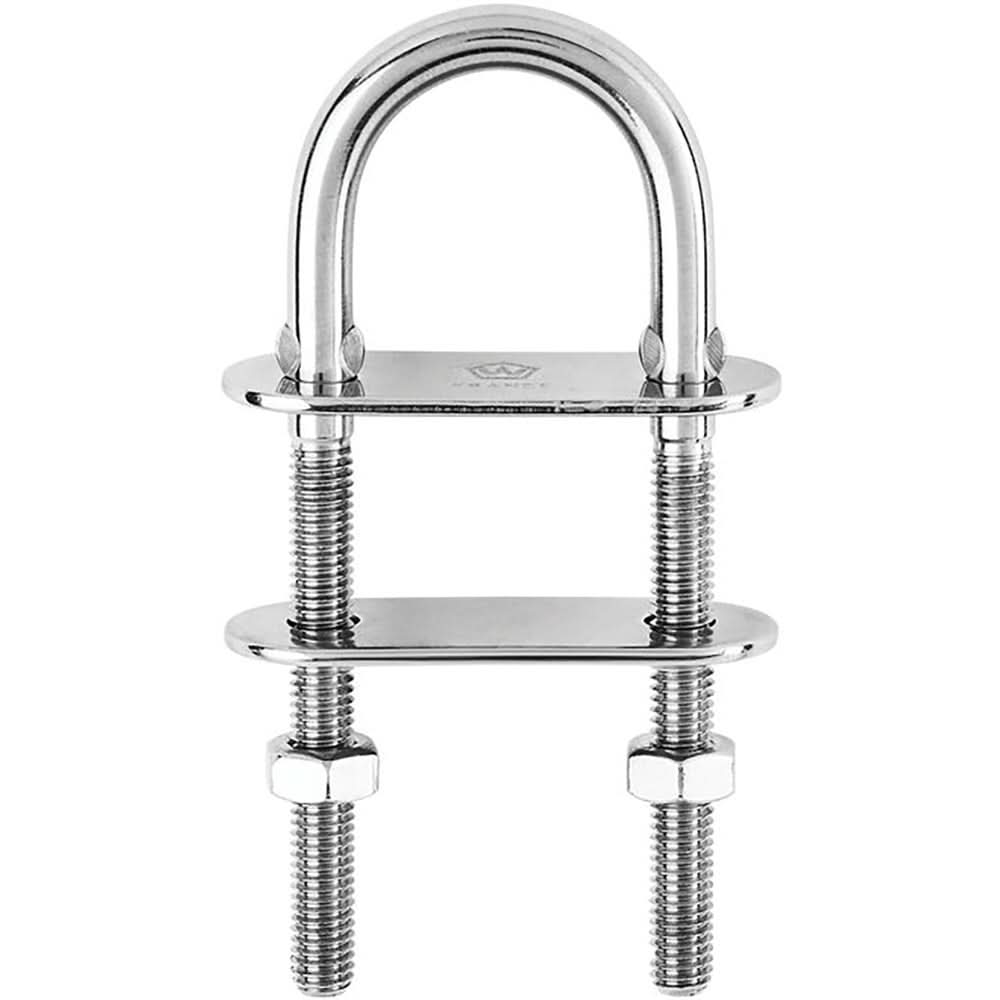

Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64" - 6516

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.703 / (g) 319

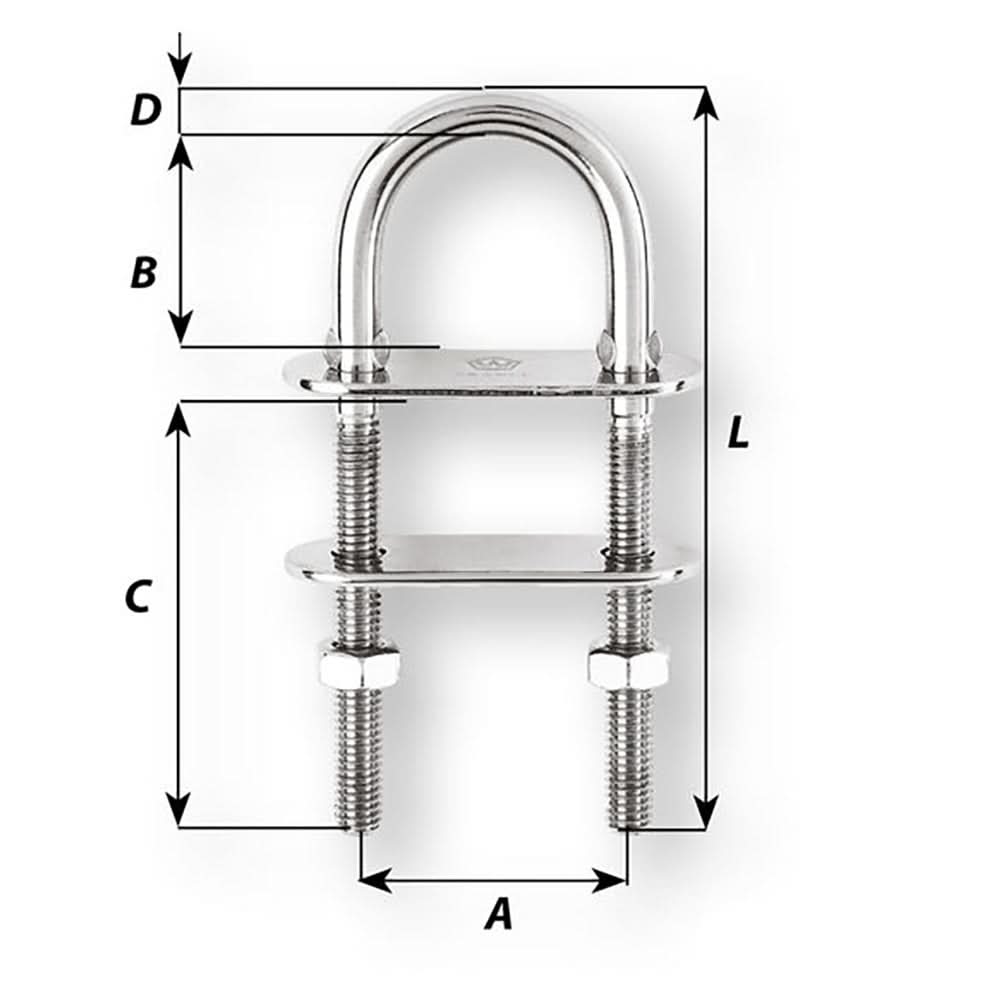

Dimensions:

• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 11/32" / (mm) 34
• C: (inch) 1 31/32" / (mm) 50
• D diameter: (inch) 15/32" / (mm) 12
• Length: (inch) 4 21/64" / (mm) 110

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
