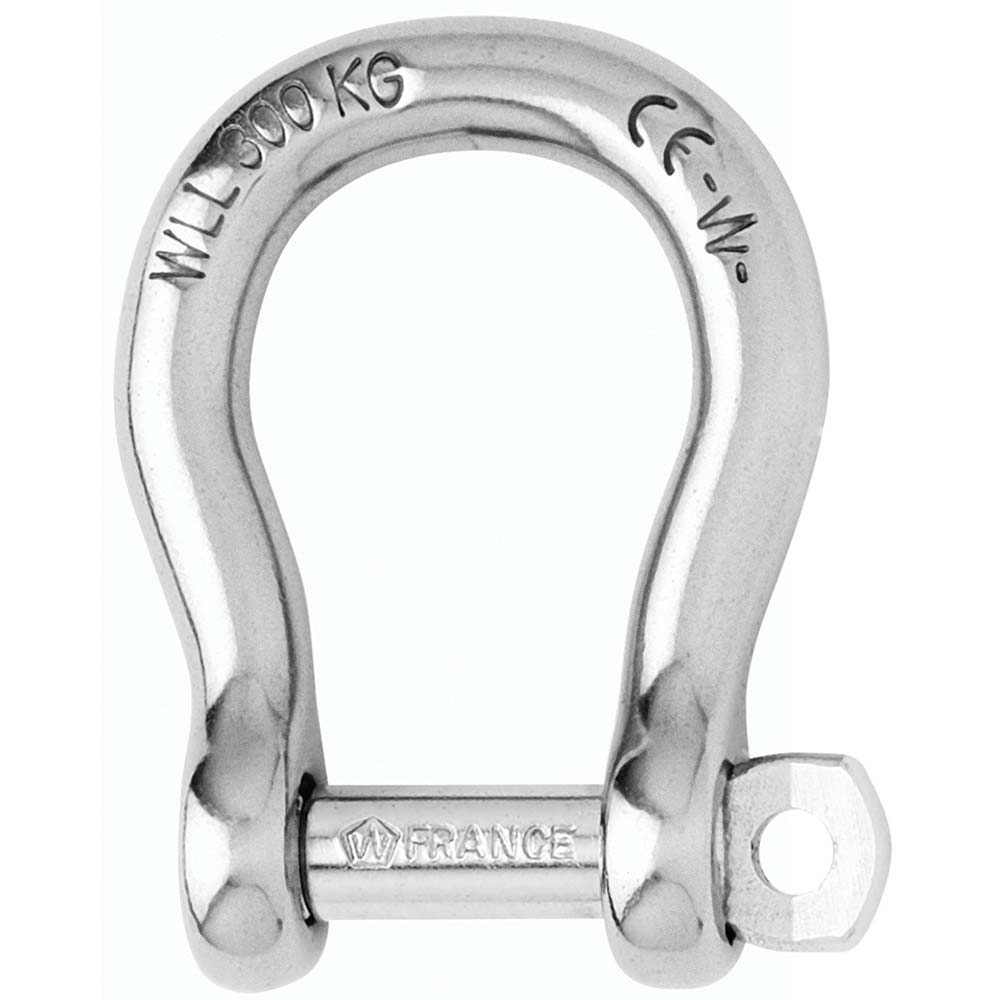

Self-Locking Bow Shackle - Diameter 10mm - 13/32"

Features:

• Self-locking bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• WLL (lb) 1890
• Breaking load (lb) 9470
• Weight (lb) 0.302

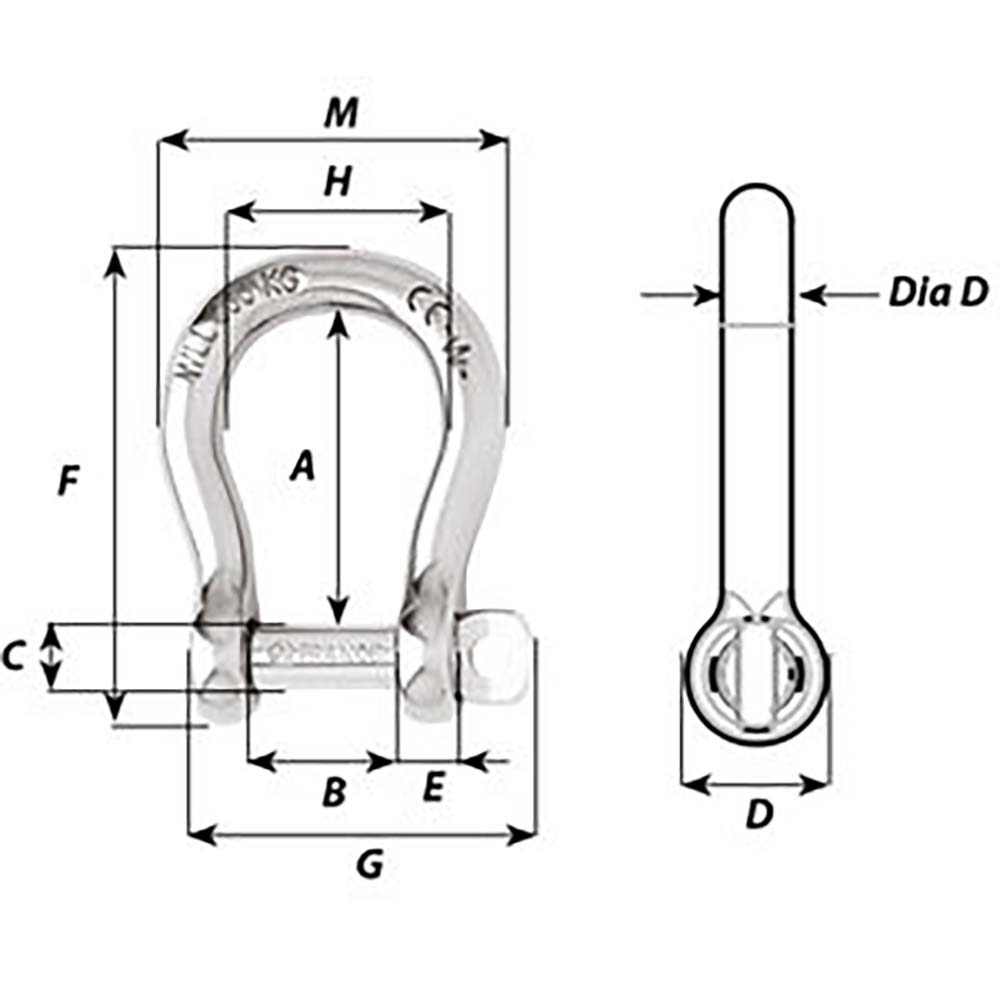

Dimensions (see 2nd image):

• A (inch) 1-27/32"
• B (inch) 25/32"
• C (inch) 25/64"
• D (inch) 25/32"
• D diameter (inch) 25/64"
• E (inch) 23/64"
• M (inch) 2-3/64"

Product : WICHARD 13/32 SELF LOCKING BOW SHACKLE
Manufacturer : Wichard Marine
Manufacturer Part No : 01245
