Wichard HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64" - 2675

Wichard HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64" - 2675

HR Quick Release Snap Shackle With Swivel Eye - 90mm Length - 3-35/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 7050 / (kg) 3200

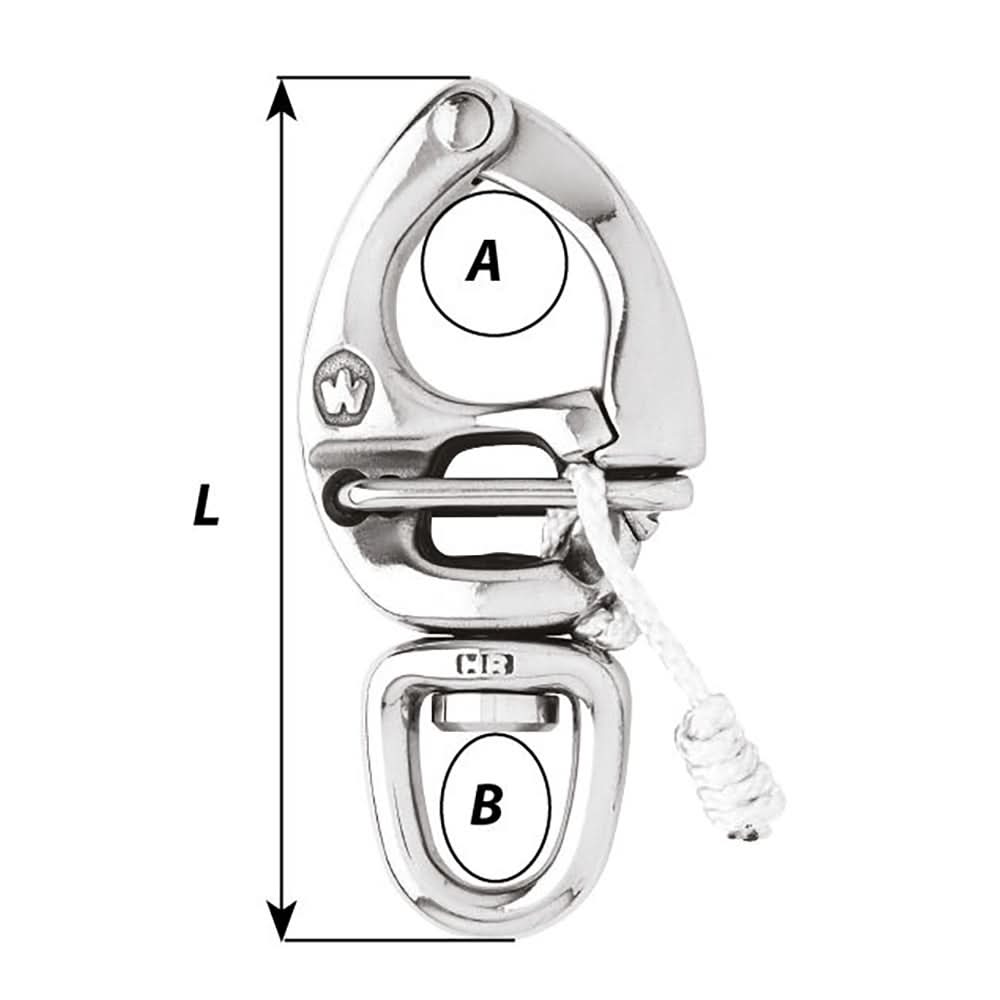

Dimensions:

• A: (inch) 25/32" / (mm) 20
• B: (inch) 17/32" / (mm) 13.5
• Length: (inch) 3 35/64" / (mm) 90

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Product : WICHARD 3 17/32 QUICK RELEASE SNAP SWIVEL EYE
Manufacturer : Wichard Marine
Manufacturer Part No : 02675
Product : WICHARD 3 17/32 QUICK RELEASE SNAP SWIVEL EYE
