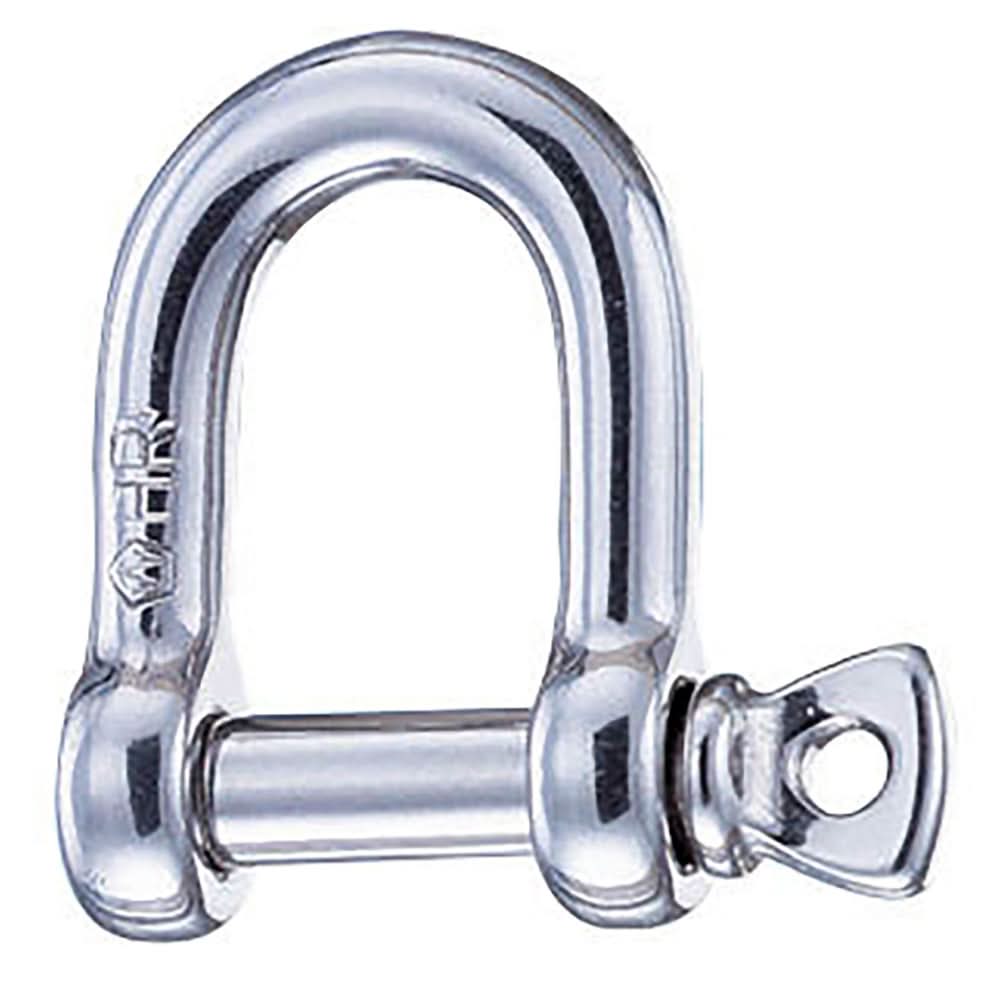

Wichard HR D Shackle - 20mm Diameter - 25/32" - 11209

HR D Shackle - 20mm Diameter - 25/32"

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head …
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 19400 / (kg) 8800
• WLL: (lb) 12340 / (kg) 5600
• Breaking load: (lb) 61720 / (kg) 28000
• Weight: (lb) 1.896 / (g) 860

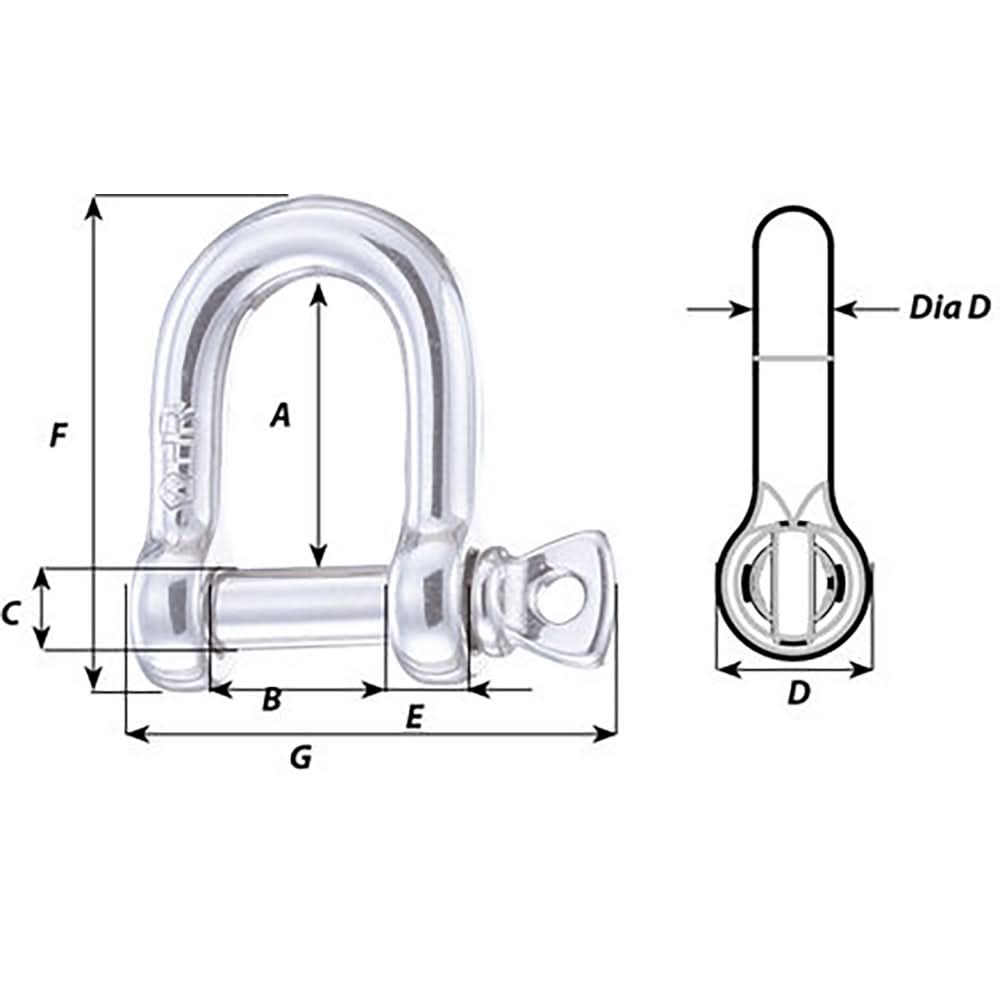

Dimensions:

• A: (inch) 2 3/4" / (mm) 70
• B: (inch) 1 37/64" / (mm) 40
• D diameter: (inch) 25/32" / (mm) 20

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
