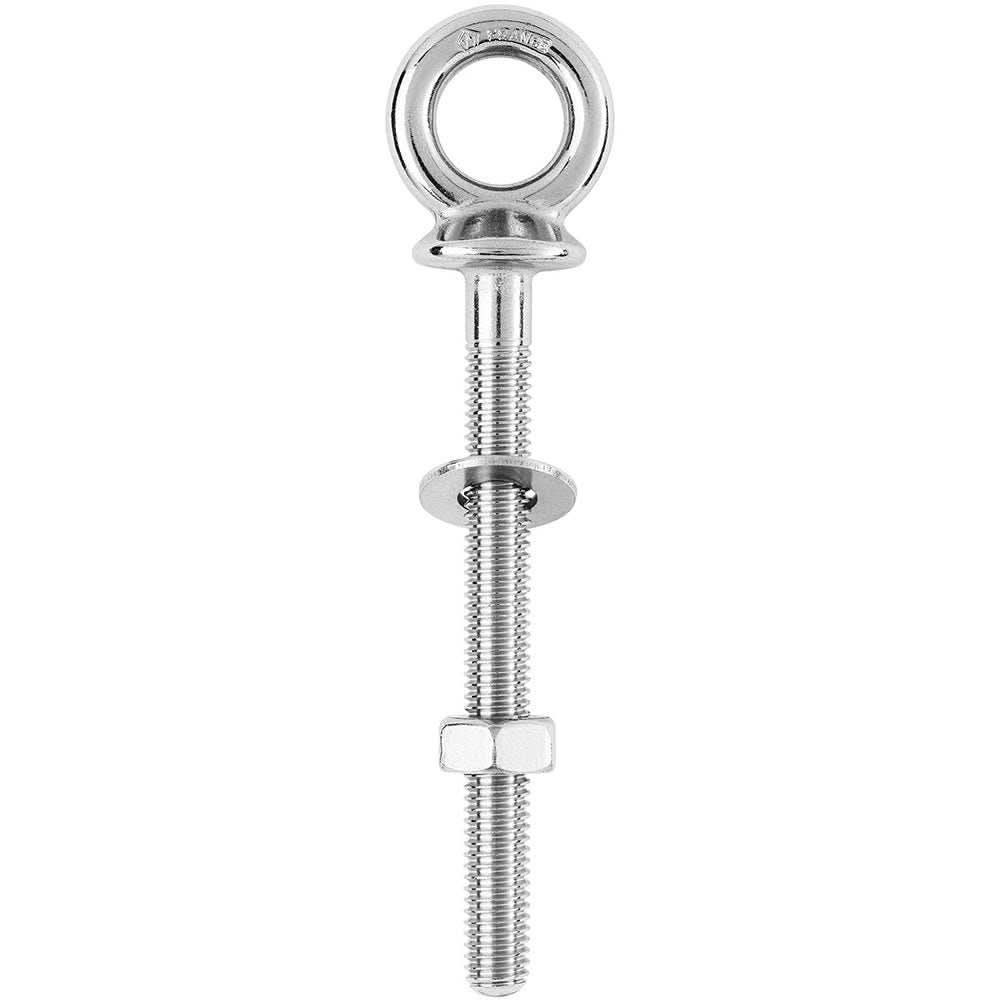

Wichard Eye Bolt - Diameter 15/32" - Length 2-3/8" - 6491

Eye Bolt - Diameter 15/32" - Length 2-3/8"

Features:

• A complete range of single piece forged products for fastenings applications
• Outstanding working and breaking loads
• Available in different sizes
• Max tightening torque: 7,5 Nm

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials 316L stainless steel grade
  • Working load (lb) 1230
  • Breaking load (lb) 1980
  • Weight (lb) 0.06

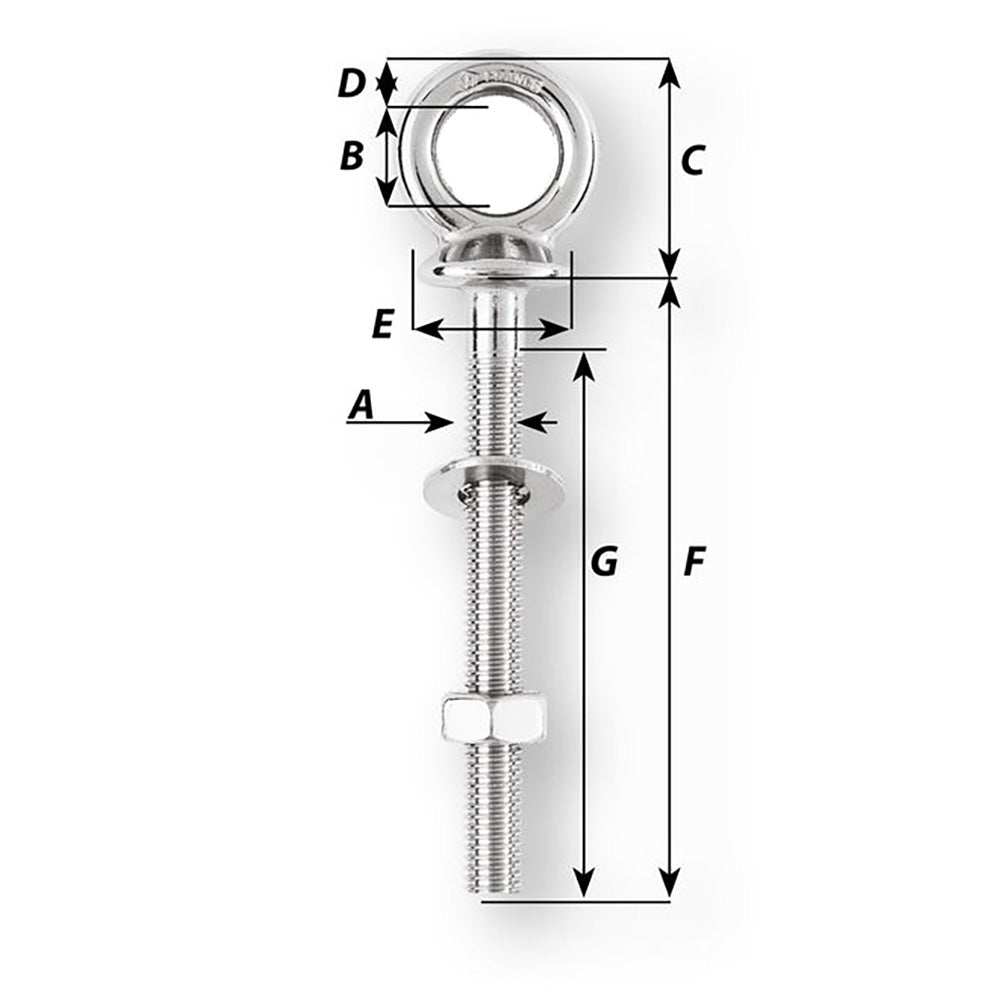

  • A (inch) M6 x 100
  • B (inch) 15/32"
  • C (inch) 63/64"
  • D (inch) 13/64"
  • E (inch) 43/64"
  • F (inch) 2 23/64"
  • G (inch) 2 1/8"
