Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16" - 1442

Captive Pin Bow Shackle - Diameter 5mm - 3/16"

Features:

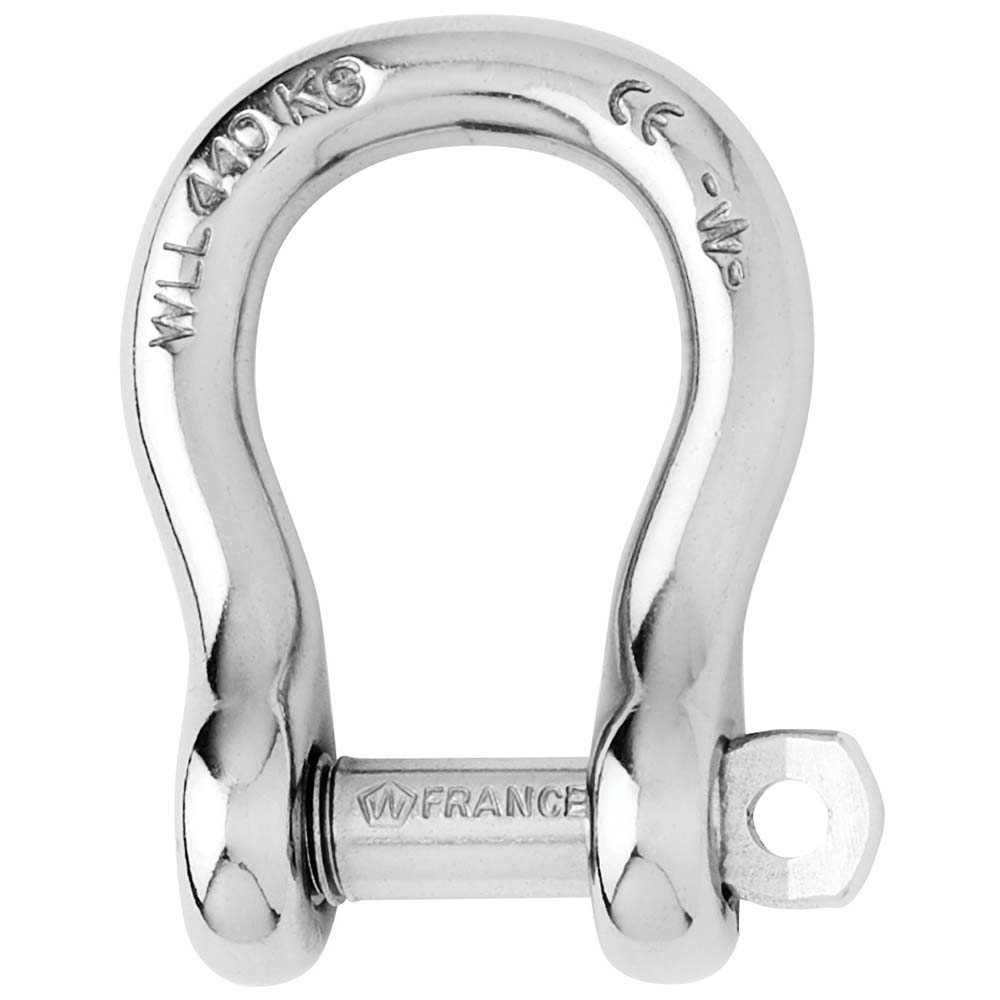

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• WLL (lb) 660
• Breaking load (lb) 3300
• Weight (lb) 0.042

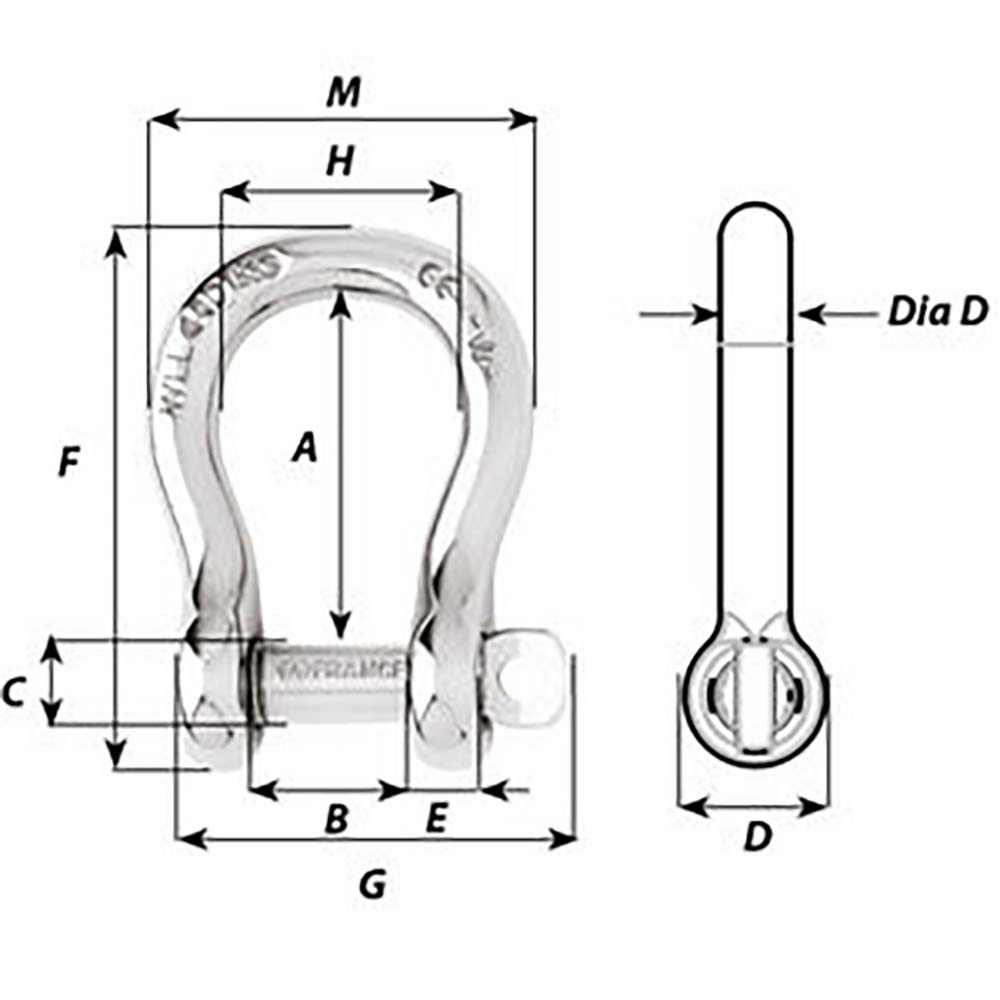

Dimensions (see 2nd image):

• A (inch) 29/32"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• M (inch) 1-1/32"
