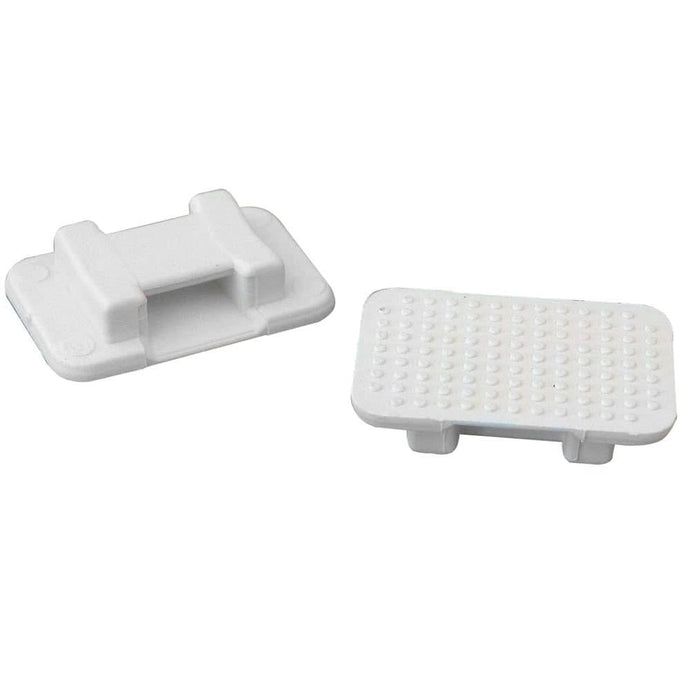

Weld Mount AT-5 Large White Nylon Tie Mount – Qty. 500 | MPN: 805500

Key Features & Performance Advantages

• 150 lbs Average Pull Strength: Industrial-grade holding power ensures heavy wire bundles, battery leads, and fluid hoses stay securely fastened even during high-impact hull pounding.


• No Drilling Required: Eliminates the risk of drilling through outer fiberglass skins, aluminum panels, or core materials, preserving structural integrity and preventing leak pathways.


• Approved for Submerged Bilges: Built from heavy-duty white nylon that resists fuel, oil, saltwater, and continuous moisture. Fully rated for installation in wet bilges and engine compartments.


• Versatile Installation Methods: Can be bonded to finished fiberglass, aluminum, steel, and plastics using acrylic structural adhesives, or bedded into wet resin during composite hull construction.


• Accommodates Heavy-Duty Cable Ties: Accepts standard #5 wire ties and heavy-duty cable ties up to 0.375" (3/8") wide.


• Reduces Installation Labor & Material Costs: Eliminates time-consuming wooden backing block preparation, fiberglassing, sanding, and screwing.



Technical Specifications

Ideal Applications

• Marine Rigging: Secure main wiring harnesses, battery cables, and control cables along hull sides, under gunwales, and inside center console cabs.


• Bilge & Engine Rooms: Route bilge pump wiring, float switch leads, and engine sensor harnesses through tight, wet compartments.


• RV & Specialty Vehicles: Clean, organized electrical layouts across smooth gelcoat, fiberglass walls, or bare metal panels without external fasteners.


• Commercial Shipbuilding: Fast-track wire routing in OEM production environments without compromising watertight bulkheads.



Installation Instructions

1. Surface Preparation: Clean the target mounting area using isopropyl alcohol or solvent to remove grease, mold release agents, or sanding dust.


2. Adhesive Application: Apply a small bead of recommended structural acrylic adhesive (such as Weld Mount AT-2010) directly to the center of the AT-5 base.


3. Mounting: Press the mount firmly against the substrate. Use a slight twisting motion to evenly spread the adhesive under the base.


4. Cure Time: Allow the adhesive to cure according to manufacturer specifications prior to cinch-tightening cable ties or running heavy wiring loops.
