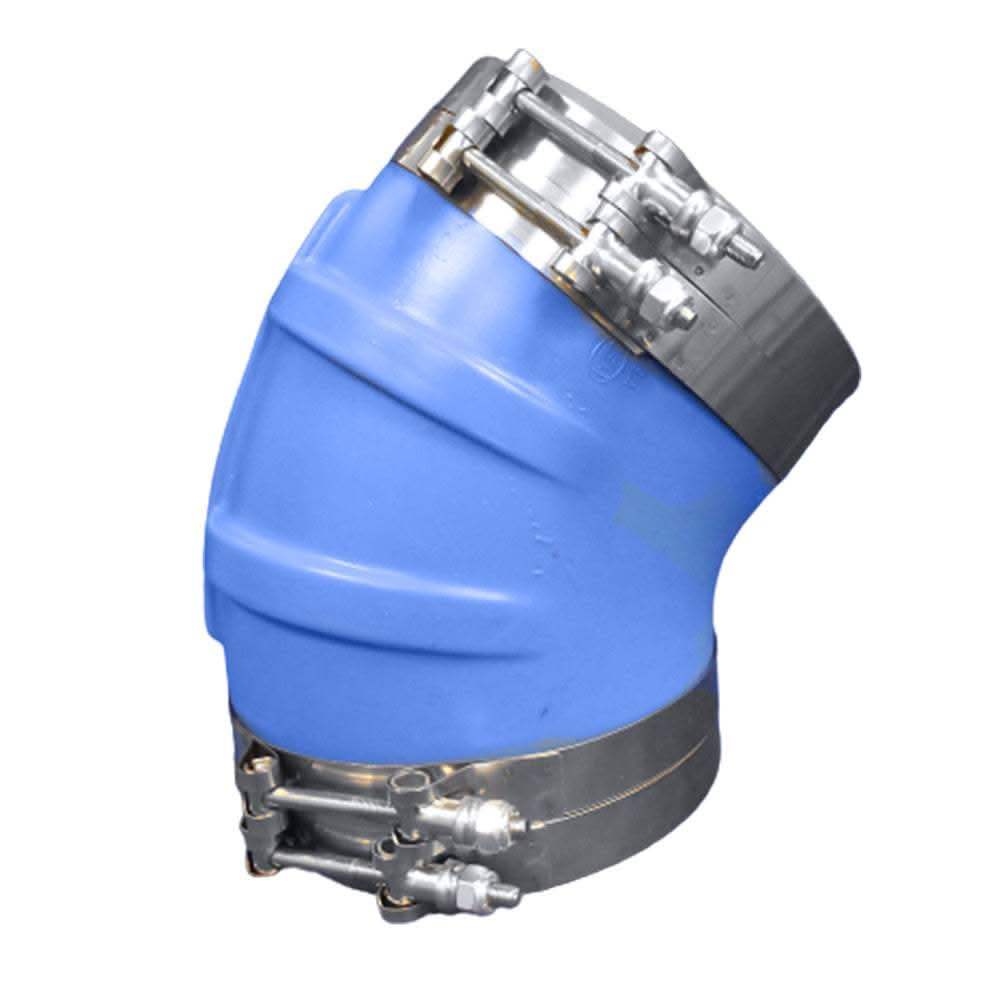

Trident Marine 8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps - 240V80000-S/S

Trident Marine 8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps -

8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Construction:

• Color: Blue
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 350°F (177°C)

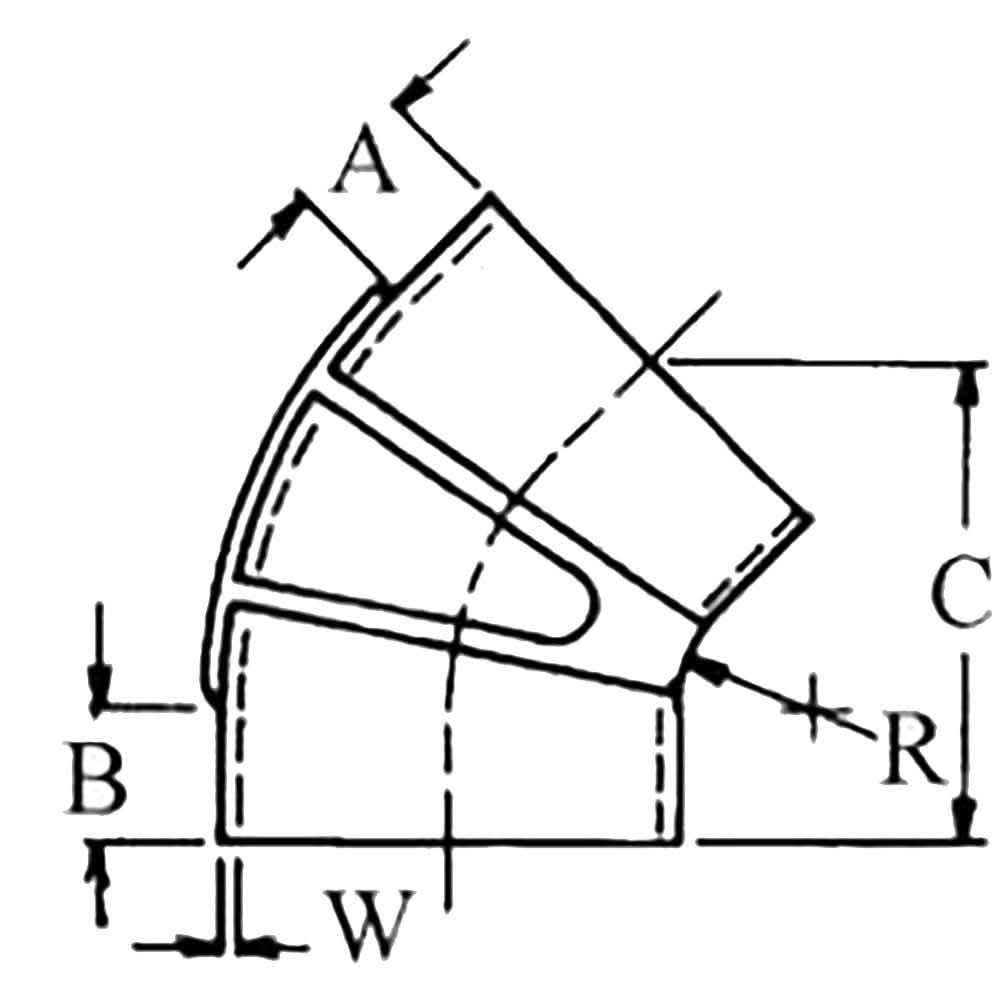

Specifications:

• Inner Diameter: (inch) 8” / 203.2 mm
• A: (inch) 2.25” / (mm) 5.7
• B: (inch) 2.25” / (mm) 5.7
• C: (inch) 8.5” / (mm) 21
• R: (inch) 2.12” / (mm) 5.4
• W: (inch) 0.37" / (mm) 9.4
• Elbow Degree: 45 degrees

Product : TRIDENT 8" ID 45 DEGREE BLUE SILICONE MOLDED WET EXHAUST
Manufacturer : Trident Marine
Manufacturer Part No : 240V80000-S/S
Product : TRIDENT 8" ID 45 DEGREE BLUE SILICONE MOLDED WET EXHAUST
