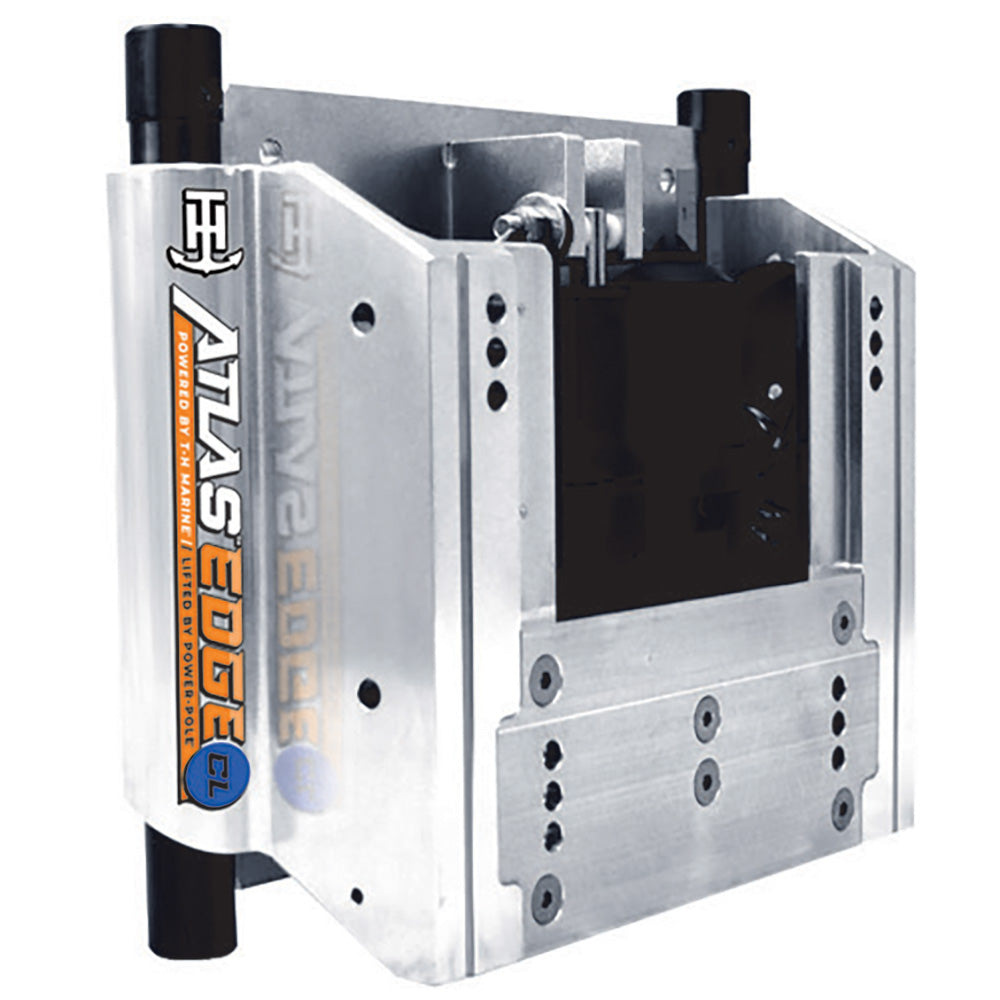

T-H Marine ATLAS EDGE 10" Set Back Hydraulic Jack Plate - Classic - Silver - AHJE-10V-DP

Frequently Asked Questions (FAQs)

1. What is the T-H Marine ATLAS EDGE AHJE-10V-DP used for?

The T-H Marine ATLAS EDGE AHJE-10V-DP is a hydraulic jack plate designed to adjust the vertical position of an outboard motor. It helps boaters optimize engine height for improved handling, acceleration, shallow-water operation, and overall boat performance.

2. How much setback does the ATLAS EDGE AHJE-10V-DP provide?

This model features a 10-inch setback, positioning the outboard motor farther behind the boat's transom. This configuration provides additional clearance and flexibility for motor height adjustments.

3. How much vertical lift does the ATLAS EDGE 10" jack plate offer?

The ATLAS EDGE provides approximately 5.75 inches of hydraulic vertical travel, allowing boaters to raise or lower their outboard motor to accommodate different boating conditions.

4. What is the maximum horsepower rating for the ATLAS EDGE AHJE-10V-DP?

The ATLAS EDGE is rated for compatible outboard motors up to 300 horsepower, with a maximum motor weight of 625 pounds. Always verify your boat's transom rating and engine compatibility before installation.

5. Does the ATLAS EDGE hydraulic jack plate use a brushless motor?

Yes. The ATLAS EDGE features advanced brushless motor technology designed to provide responsive operation, improved efficiency, and reduced maintenance compared with conventional brushed motor systems.

6. What is the benefit of a hydraulic jack plate?

A hydraulic jack plate allows boaters to adjust outboard motor height without manually repositioning the engine. Proper adjustment may improve shallow-water access, acceleration, handling, and running efficiency, depending on the boat and operating conditions.

7. Does the ATLAS EDGE AHJE-10V-DP have programmable height presets?

Yes. The ATLAS EDGE features three customizable Quick Set height positions, allowing boaters to save preferred outboard motor heights for takeoff, cruising, and fishing or trailering.

8. What is the One-Touch Height Control feature?

One-Touch Height Control allows users to move the jack plate to a saved height with a single command. This reduces the need for repeated manual adjustments when changing operating conditions.

9. Can the ATLAS EDGE lift speed be adjusted?

Yes. The system offers three selectable lift speeds: Slow, Medium, and Fast. These settings allow users to customize the speed of outboard height adjustments.

10. What is Auto Height Mode on the ATLAS EDGE?

Auto Height Mode allows the jack plate to move automatically to a saved motor height. A single tap activates the selected preset, while a double-tap commands movement at full speed.

11. Does the ATLAS EDGE include a height display?

The ATLAS EDGE system features a Smart Gauge with an automatically adjusting display brightness. It provides convenient height monitoring and control in varying lighting conditions.

12. Is the T-H Marine ATLAS EDGE suitable for saltwater use?

The ATLAS EDGE is constructed with heavy-duty aluminum components designed for demanding marine environments. Regular freshwater rinsing, inspection, and proper maintenance are recommended after saltwater exposure.

13. Can the ATLAS EDGE 10" jack plate improve shallow-water performance?

Yes. Raising the outboard motor can help reduce the motor's operating depth, potentially improving shallow-water access. However, safe engine height depends on water pressure, propeller performance, and manufacturer operating limits.

14. Will the ATLAS EDGE improve boat speed and fuel efficiency?

Proper motor height adjustment may reduce drag and improve running efficiency, potentially increasing speed or reducing fuel consumption. Actual results depend on the boat, engine, propeller, load, and water conditions.

15. What boats are compatible with the ATLAS EDGE AHJE-10V-DP?

This model is intended for compatible single-outboard boats, including bass boats, bay boats, flats boats, and other performance-oriented vessels. The boat must accommodate a 10-inch setback and support the additional transom loading.

16. What is the difference between the ATLAS EDGE Classic and Heavy Duty models?

The Classic model AHJE-10V-DP supports outboards up to 300 HP and 625 lbs dry weight. The corresponding 10-inch Heavy Duty model, AHJE-10VHD-DP, supports up to 450 HP and 810 lbs.

17. Does the ATLAS EDGE require professional installation?

Professional marine installation is recommended. Proper installation requires verifying transom strength, engine mounting hardware, steering clearance, electrical connections, and outboard compatibility.

18. What maintenance does the ATLAS EDGE hydraulic jack plate require?

Regular maintenance includes inspecting mounting bolts, checking electrical connections, cleaning exposed components, and examining the hydraulic system for leaks or damage. Follow the manufacturer's maintenance instructions for the brushless motor and lift mechanism.

19. Does the ATLAS EDGE AHJE-10V-DP include everything needed for installation?

The AHJE-10V-DP is sold as an ATLAS EDGE hydraulic jack plate system. However, the exact supplied mounting hardware, wiring, and control components should be confirmed against the manufacturer's package list before purchase.

20. What is the difference between a 6", 8", 10", and 12" setback jack plate?

The setback measurement indicates how far the jack plate positions the outboard motor behind the transom. Larger setbacks may improve access to cleaner water and offer additional mounting clearance, but they also increase leverage on the transom. The correct setback depends on the boat's design and manufacturer recommendations.
