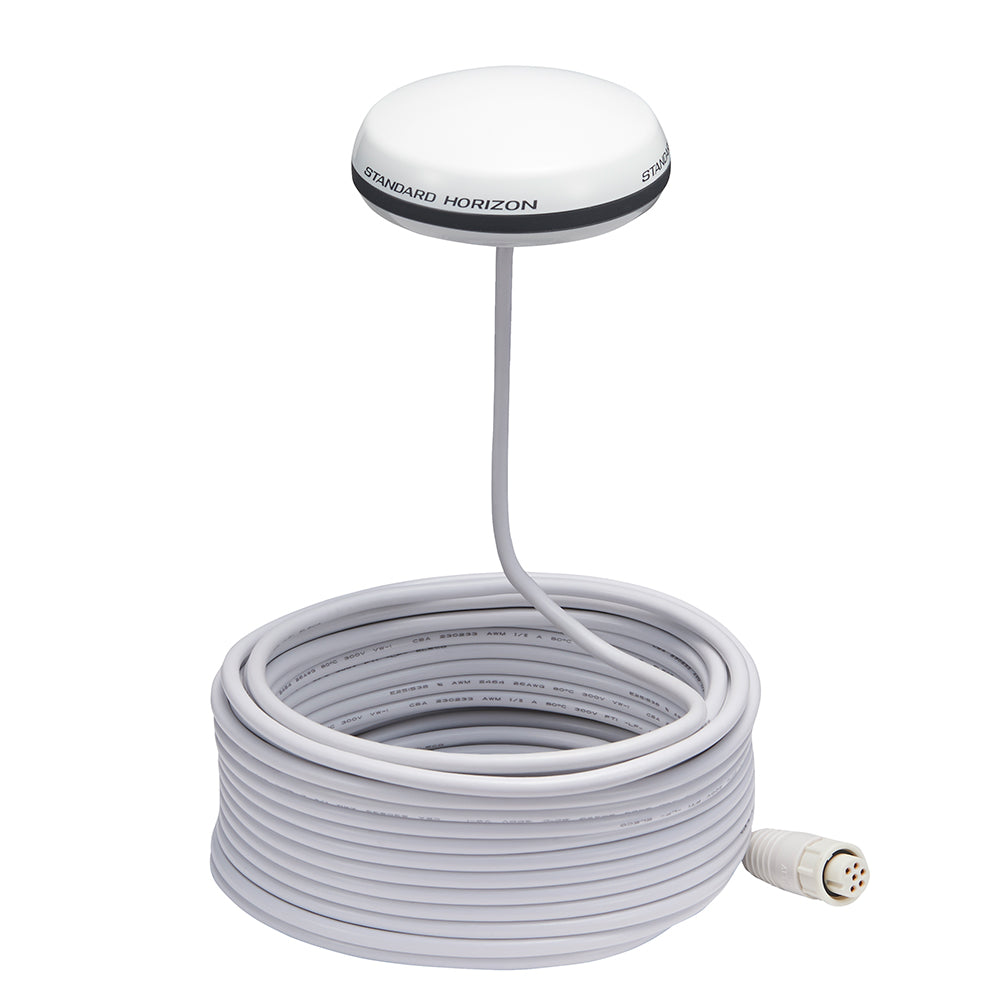

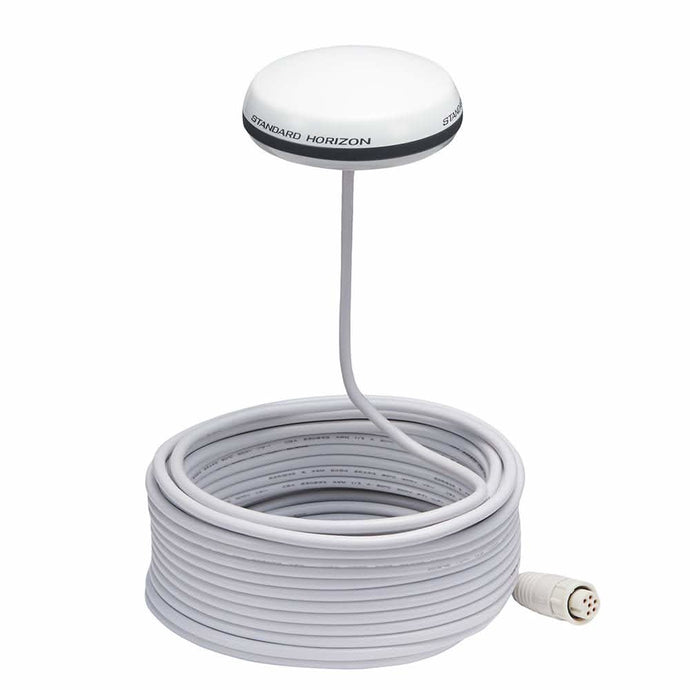

Standard Horizon SCU-31 GPS Smart Antenna

Key Features

• High Precision Navigation: Delivers accuracy of less than 3 meters by utilizing SBAS (Satellite Based Augmentation System) correction signals.

• Rapid Acquisition: The 66-channel WAAS receiver ensures fast signal lock-on times, reducing the delay when viewing your position on a navigation screen.

• Flexible Connectivity: Outputs standard NMEA 0183 data.³ While it can plug directly into compatible Standard Horizon radios, the cable can also be cut and spliced to act as a GPS source for any NMEA 0183-compatible device.

• Rugged Build: The antenna features a UV-protected ivory white housing to prevent fading and is backed by a 3-year waterproof warranty.

• Generous Cable Length: Comes supplied with 49 feet (15 meters) of routing cable, allowing for optimal placement on a radar arch or mast.

Technical Specifications

• Receiver: 66-Channel WAAS GPS.

• Data Protocol: NMEA 0183 (4800 Baud).

• Voltage: 10–35V DC.

• Mounting: Supports base mounting (1"-14 TPI thread), pole mounting, or flush mounting.

• Dimensions: Approximately 4" x 4" x 2".

What is in the Box

• SCU-31 Smart Antenna with 49ft attached cable.

• Antenna Base (Socket) (Part #RA6054200).

• Stainless Steel Mounting Screws (M3x8 SUS).

• Flush Mount Template & Instruction Sheet.

Installation Tip

Mount the SCU-31 at least 3 feet away from radar arrays or other transmitting antennas to avoid signal interference. If you are connecting this to a Standard Horizon GX1400, be aware that you may need to splice the wires directly into the radio's NMEA 0183 input/output wires rather than using a plug-and-play connector.
