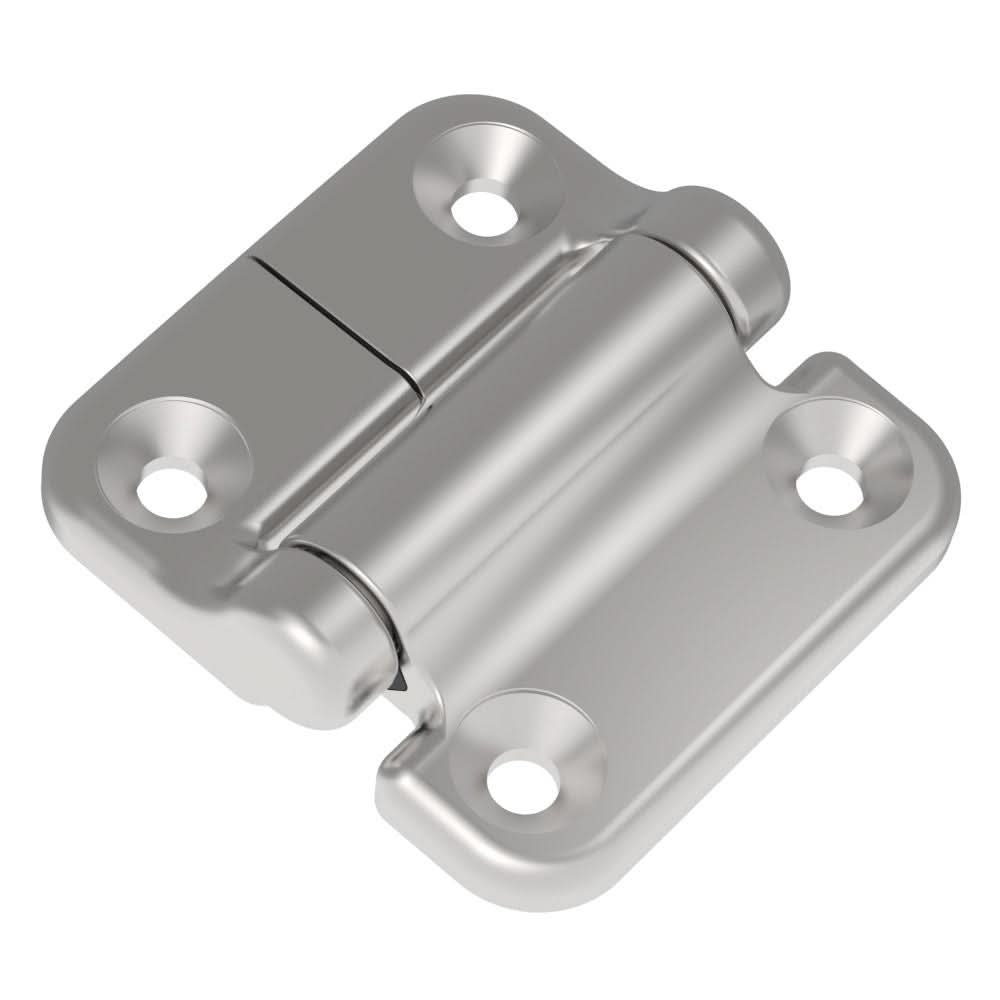

Southco Constant Torque Hinge Symmetric Forward Torque - 3.4 N-m - Reverse Torque - Large - Stainless Steel 316 - Polished - E6-71-430S-85

$53.99 $77.99
SKU: 97098

Manufacturer Part #: E6-71-430S-85


Southco Constant Torque Hinge Symmetric Forward Torque - 3.4 N-m - Reverse Torque - Large - Stainless Steel 316 - Polished - E6-71-430S-85

Constant Torque Hinge Symmetric Forward Torque - 3.4 N-m - Reverse Torque - Large - Stainless Steel 316 - Polished

Southco’s line of Constant Torque Position Control Hinges provide constant resistance throughout the entire range of motion, enabling users to easily position doors, display screens, and other mounted components and hold them securely at any desired angle – fully opened, fully closed, or anywhere in between. Hinges are available in a wide variety of sizes, materials, and torque ranges to satisfy application needs across industries.

Features:

  • Preset in our manufacturing facility and never requires adjustment
  • Zero-drift and backlash, even under vibration or dynamic loads
  • Robust construction suitable for indoor and outdoor use
  • Multiple sizes and torque ratings to accommodate a range of load requirements
  • Easy integration and simple installation without the added cost

Available Options:

  • Wide range of styles available including an abrasion-resistant satin chrome finish
  • Thru-hole and rear/concealed mounting options
  • Available in multiple colors and finishes to match application designs
  • Available with asymmetric torque for the easy lifting operation
  • Contact Southco for additional torque range, color, and finish possibilities
  • Available with plastic, aluminum, or die-cast zinc construction
  • Available with torque only in one direction
  • Extended housing option can replace two hinges in some applications

Specifications:

  • Long-lasting hinges are rated to stay within ±20% of rated torque value for 20,000 cycles
  • Hinge resistance ranges up to 12.4 N.m (110 in-lbf)

Manufacturer : Southco
Manufacturer Part No : E6-71-430S-85

Southco Constant Torque Hinge Symmetric Forward Torque - 3.4 N-m - Reverse Torque - Large - Stainless Steel 316 - Polished - E6-71-430S-85 is backordered and will ship as soon as it is back in stock.
