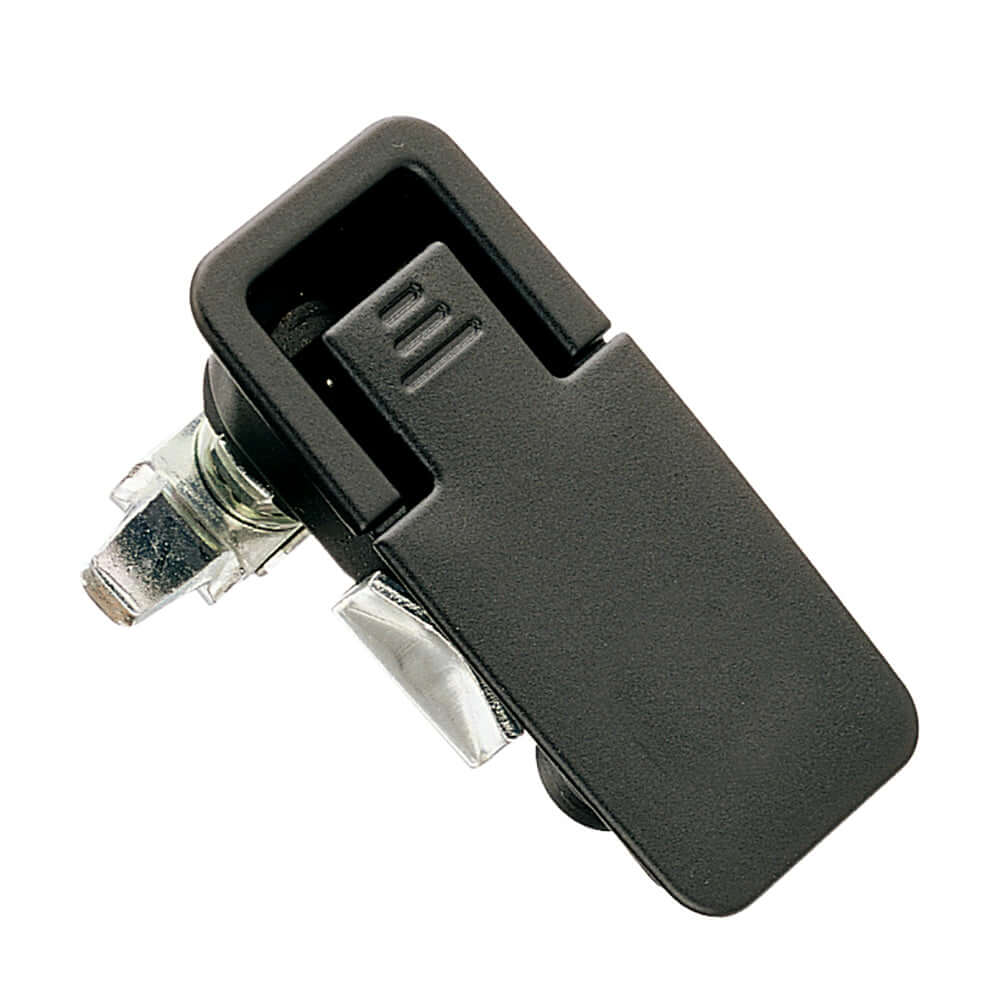

Southco Compression Latch Lift & Turn - Flush - Adjustable - 62-424-700

Southco Compression Latch Lift & Turn - Flush - Adjustable

Compression Latch Lift Turn - Flush - Adjustable

The composite Lift Turn latch is a light- to medium-duty latch, utilizing engineering plastic in its major components to reduce weight yet maintain excellent strength. When the lever is in the upright position, it rotates 360 to move the cam behind the support in any one of three 90 positions. Once in place, the lever closes flush with the housing, providing 5 mm of axial pull, locking the device with an over-center action.
The latch is secured into a panel by a mounting bracket that adjusts to various thicknesses. Snap-in installation is provided for 5 mm thick panels. By using cams of various off sets, different grip ranges are easily accommodated.

Features:

• Broad Application Range - Latch can be fi tted to panel range 0.5 mm 9.0 mm and has a grip range of between 10.5 mm 49.4 mm


• Double Action Latching Compression - Allows secure fastening of doors and panels which contain gaskets and seals


• No Adjustments Required When Fitted - Fixed cam design prevents incorrect grip setting


• 4 Cam Orientation Settings - Cam may be fitted at 90 / 180 / 270 / 360 to the latch body center line, allowing for a wide variety of mounting positions


• Robust Polyamide Construction - High strength nylon is used in the main components to ensure a durable product. The material has a V2 flammability rating to UL94

Typical Applications

• Telecoms base station doors side access panels


• Electrical switchgear cabinets


• Computer server racks enclosures


• Games machine doors panels


• HVAC control equipment enclosures


• Storage lockers on stations/building sites


• Cupboards/lockers on trains/boats/commercial vehicles

BRAND: Southco

Manufacturer Part Number: 62-424-700
