SmartPlug 50 Amp Angled RV Dual Configuration Cordset - 30 Feet - R50304A
Manufacturer Part #: R50304A
Couldn't load pickup availability
SmartPlug 50 Amp Angled RV Dual Configuration Cordset – 30 Feet – R50304A
The SmartPlug 50 Amp Angled RV Dual Configuration Cordset (R50304A) offers a safe, reliable, and convenient shore power solution for RV owners. Designed with SmartPlug’s dual configuration system, this cordset allows seamless connection to both SmartPlug SPS and traditional Park Power 50A outlets, eliminating the need for adapters.
The angled connector provides improved clearance and easier hookup in tight spaces at campgrounds and RV parks. With a 30-foot durable cord, this 50 Amp power cord offers flexibility and reach for a variety of parking and hookup scenarios. Built with solid pin technology, the SmartPlug R50304A reduces heat buildup, improves electrical contact, and enhances overall safety compared to conventional twist-lock cords.
Ideal for motorhomes, fifth wheels, and travel trailers, this dual configuration cordset ensures secure, weather-resistant connections for dependable RV power wherever your adventures take you.
What’s in the Box
The R50304A kit comes fully assembled and ready for use with the following components:
-

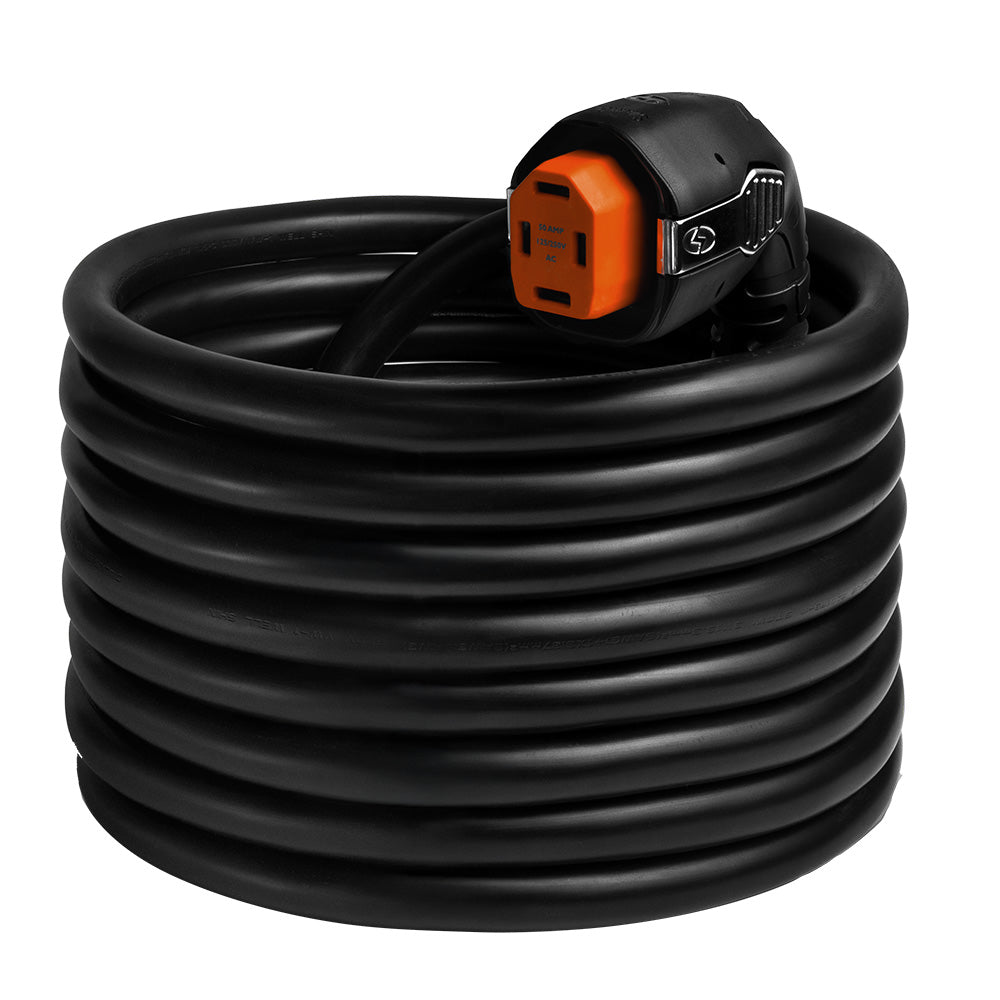

30' Heavy-Duty Cable: A marine-grade 6/4 AWG cord that is flexible and easy to coil even in cold weather.
-

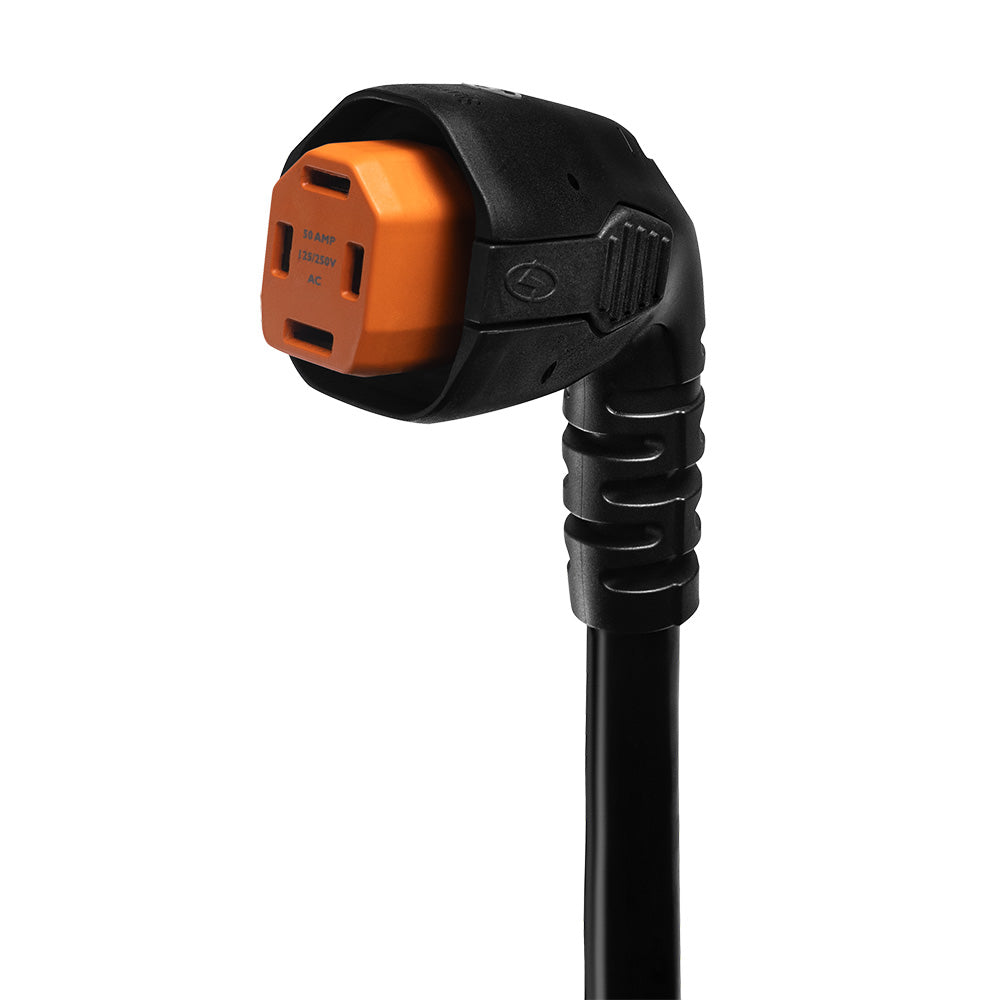

Angled SmartPlug Connector: The boat/RV side connector featuring side locking clips and a multi-point contact system.
-

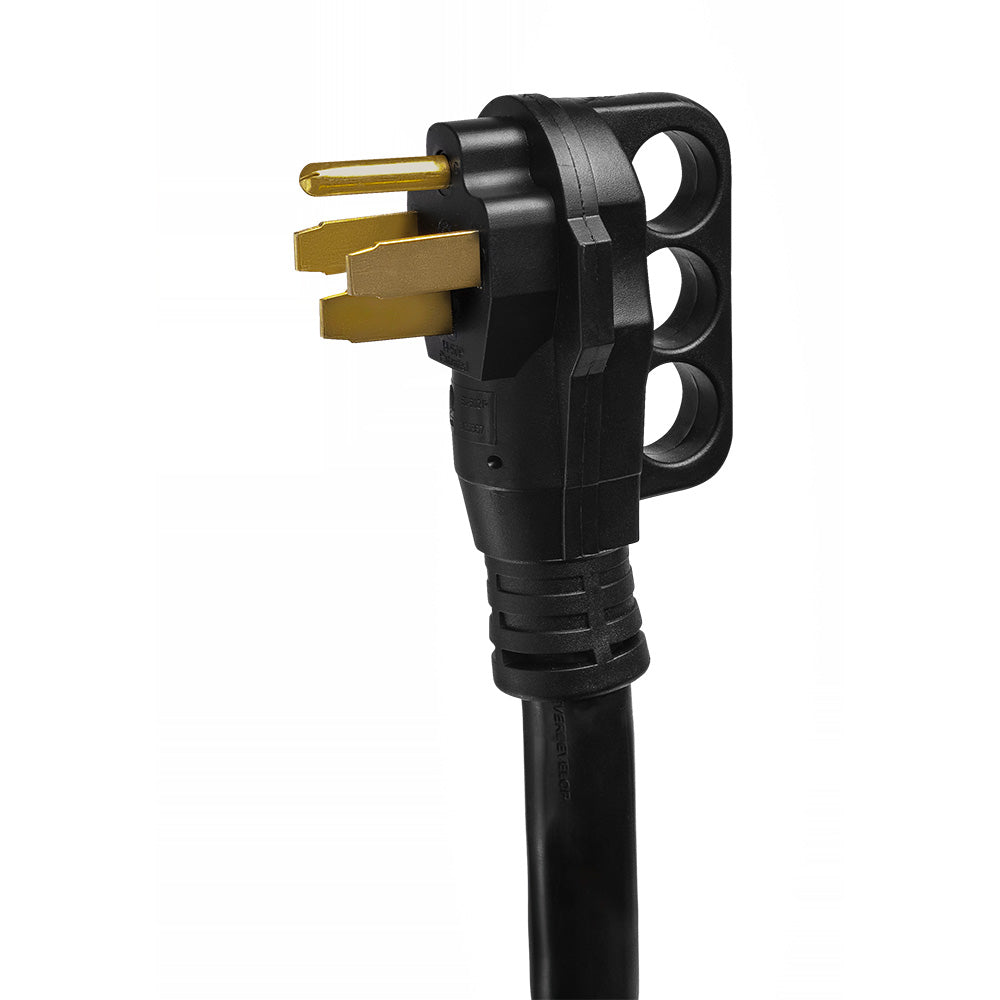

Marina Twist-Type Plug: A standard male end for connecting to traditional park power pedestals.
-
Integrated LED Indicator: A blue light on the connector head that confirms active power flow at a glance.
-
Weatherproof Seals: Pre-installed multi-fin silicone gaskets that protect the connection from water intrusion.
Key Features & Specifications
-
Dual Configuration: This cordset is unique because it is designed to work with both the SmartPlug inlet and legacy twist-lock inlets, offering maximum flexibility.
-
Push-to-Lock Technology: Eliminates the need for difficult twisting; the connector locks securely with a simple push.
-
High Amperage Support: Rated for 50 Amp 125/250V, making it capable of powering high-demand systems like dual A/C units and electric cooktops.
-
Safety First: The multi-point locking system provides 20x more electrical contact surface than standard twist-locks, which prevents the overheating and arcing that can lead to fires.
Installation Note
While this cordset works with existing twist-lock inlets, you will gain the full safety benefits (like the 20x contact surface and superior locking) by upgrading your RV's side to a SmartPlug 50 Amp Stainless Steel Inlet.
Ideal For:
-
RV owners needing safe and versatile shore power connections
-
Motorhomes, fifth wheels, and travel trailers
-
Upgrading from traditional twist-lock power cords
-
Campgrounds and RV parks with mixed 50A power outlets
The SmartPlug 50 Amp Angled RV Dual Configuration Cordset – R50304A delivers enhanced safety, flexibility, and convenience, making it a reliable choice for all RV shore power needs.
Available from Anchor Express—trusted supplier of premium RV and marine electrical solutions.
Frequently Asked Questions (FAQs)
1. What is the SmartPlug R50304A used for?
The SmartPlug R50304A is a 50 Amp RV shore power cordset designed to connect a compatible RV electrical inlet to a campground power pedestal. It provides a secure electrical connection for motorhomes, fifth wheels, and travel trailers equipped with compatible 50 Amp SmartPlug systems.
2. How long is the SmartPlug R50304A power cord?
The SmartPlug R50304A features a 30-foot power cable, providing convenient reach between your RV and campground electrical hookups.
3. What voltage does the SmartPlug R50304A support?
The R50304A is rated for 50 Amps at 125/250V AC, making it suitable for compatible 50 Amp RV shore power systems.
4. Does the SmartPlug R50304A have an angled connector?
Yes. The cordset features an angled SmartPlug connector on the RV side. This design helps reduce cable strain and allows the cord to hang more naturally along the side of the RV.
5. What does dual configuration mean on the SmartPlug R50304A?
Dual configuration refers to the cordset's two different connection types. It features a SmartPlug 50 Amp female connector on the RV side and a conventional 50 Amp RV male plug for connecting to compatible campground electrical pedestals.
6. Is the SmartPlug R50304A compatible with standard RV power inlets?
No. The RV-side connector requires a compatible SmartPlug 50 Amp inlet. It will not connect directly to a traditional twist-lock or other conventional RV inlet.
7. Can the SmartPlug R50304A connect to a standard 50 Amp campground pedestal?
Yes. The cordset is designed to connect to a compatible 50 Amp RV campground receptacle, typically using a standard NEMA 14-50 configuration. Always verify the pedestal's electrical rating and receptacle condition before connecting.
8. How does the SmartPlug R50304A help reduce overheating?
SmartPlug's straight-blade connection system provides increased electrical contact area compared with traditional twist-lock designs. This helps reduce electrical resistance and heat buildup at the RV-side connection.
9. Does the SmartPlug R50304A have a locking connector?
Yes. The SmartPlug RV-side connector uses a secure locking mechanism to help prevent accidental disconnection and maintain a reliable electrical connection.
10. Is the SmartPlug R50304A weather resistant?
Yes. The cordset is designed for outdoor RV applications and features weather-resistant construction. When properly connected to a compatible inlet, its sealing system helps protect the electrical connection against moisture and environmental exposure.
11. Can the SmartPlug R50304A be used with a 30 Amp RV electrical system?
The R50304A is designed for 50 Amp RV electrical systems. It should not be connected directly to a 30 Amp system without properly rated, compatible equipment. Never bypass electrical protection or use an unsafe adapter.
12. Is the SmartPlug R50304A suitable for motorhomes and fifth wheels?
Yes. The cordset can be used with compatible 50 Amp SmartPlug-equipped motorhomes, fifth wheels, travel trailers, and other recreational vehicles.
13. Does the SmartPlug R50304A require twisting to connect?
No. The RV-side SmartPlug connector uses a straight-in connection system that eliminates the twisting action required by traditional twist-lock connectors.
14. What are the benefits of an angled RV shore power connector?
An angled connector helps direct the cable downward along the RV's exterior, reducing strain on the inlet and minimizing the amount of cable extending outward from the vehicle.
15. Can the SmartPlug R50304A replace my existing RV shore power cord?
Yes, provided your RV has a compatible 50 Amp SmartPlug inlet and the campground connection matches the cordset's pedestal plug. If your RV uses a conventional inlet, a compatible SmartPlug inlet upgrade would be required.
16. Does the SmartPlug R50304A include the RV-side inlet?
No. The R50304A is a shore power cordset. The compatible 50 Amp SmartPlug RV-side inlet is a separate component unless specifically included in a retailer's bundle.
17. How should I maintain the SmartPlug R50304A cordset?
Regularly inspect the cable, connectors, locking mechanism, and electrical contacts for damage, corrosion, discoloration, or overheating. Keep connections clean and dry, and replace the cordset if signs of electrical damage are present.
18. Can I leave the SmartPlug R50304A connected while camping?
Yes. The cordset is designed for normal RV shore power use during campground stays. Ensure the connectors are fully seated, the locking mechanism is engaged, and the cable is protected from vehicle traffic, sharp edges, and standing water.
19. What is the difference between the SmartPlug R50304A and a traditional RV shore power cord?
The R50304A uses SmartPlug's straight-in, locking RV-side connector instead of a conventional twist-lock design. This provides increased electrical contact area, convenient connection, and improved resistance to accidental disconnection.
20. How do I know if the SmartPlug R50304A is right for my RV?
Confirm that your RV uses a 50 Amp, 125/250V electrical system, has a compatible SmartPlug 50 Amp inlet, and requires a 30-foot shore power cord with an angled RV-side connector. Also verify compatibility with your campground pedestal connection.
