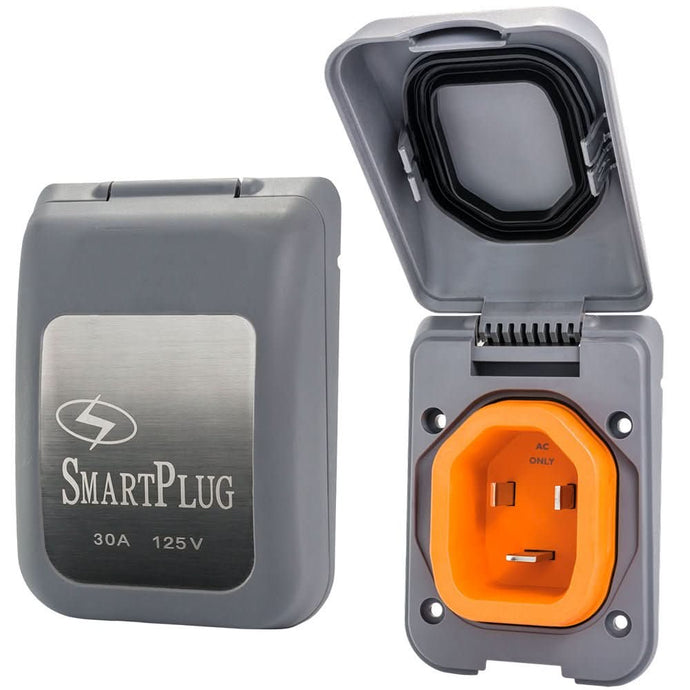

SmartPlug 30 Amp Non Metallic Gray Inlet - Boat and RV Side - BM30PG

Key Performance Features

• Triple Weather Seals: Features a heavy-duty gasket on the inlet face and internal silicone seals that engage when the plug is inserted, preventing moisture from reaching the electrical pins.

• Sleeve Design: The rectangular shape acts as a guide, ensuring the plug is always aligned correctly. The sleeve also bears the weight of the shore power cord, protecting the electrical pins from mechanical stress.

• Locking Side Clips: Dual stainless steel side levers lock the plug securely into the inlet. This prevents the cord from being accidentally pulled out or shaken loose by heavy winds or wake.

• Non-Metallic Construction: The high-performance, UV-stabilized polymer housing is impact-resistant and will never rust or corrode, making it ideal for the high-salt marine environment.

• Universal Bolt Pattern: Designed with a standard mounting footprint that fits the existing hole patterns of most 30 Amp twist-lock inlets, making it a simple "drop-in" upgrade.

Technical Specifications

In The Box

• 1 x 30 Amp Gray Non-Metallic Inlet

• 1 x Rear Protective Boot (Covers the wire terminals)

• 1 x Mounting Gasket

• Installation Hardware

Installation & Safety Pro-Tips

• Complete the System: Remember that the SmartPlug inlet only works with a SmartPlug power cord. If you currently have a standard twist-lock cord, you will need to purchase the SmartPlug 30A Connector (BF30) to retrofit your existing cable.

• Terminal Tightness: When wiring the back of the inlet, ensure the terminal screws are torqued tightly. Use a high-quality wire stripper to avoid nicking the copper strands, as a damaged strand can cause resistance and heat.

• No Twisting Required: The biggest habit to break is "twisting." Simply push the plug straight into the inlet until the side clips click into place.
