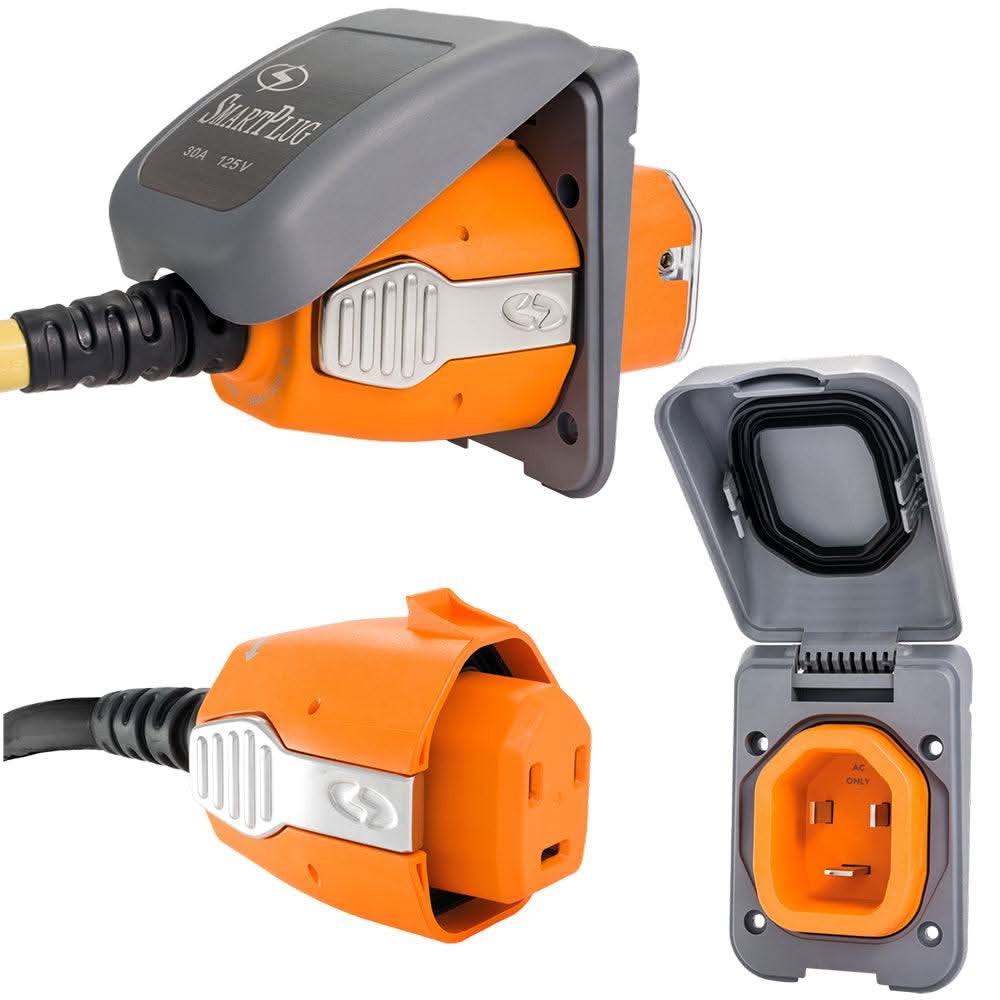

SmartPlug 30 Amp Connector & Non Metallic Inlet - Gray - B30ASSYPG

SmartPlug 30 Amp Connector & Non-Metallic Inlet – Gray (B30ASSYPG)

The SmartPlug 30 Amp Connector & Non-Metallic Inlet Combo provides a safer, more reliable shore power connection for marine and RV applications. Designed as a direct upgrade from traditional twist-lock systems, this SmartPlug kit reduces overheating and electrical failure through increased contact surface area and a secure multi-point locking design.

Rated for 30 amps at 125V AC, the SmartPlug connector features a push-in design that eliminates twisting and ensures proper alignment every time, even in low-light conditions. The included gray non-metallic inlet is corrosion-resistant and built for harsh marine environments, with weatherproof silicone seals that help prevent moisture intrusion.

Easy to install and compatible with standard twist-lock mounting patterns, the SmartPlug B30ASSYPG combo kit is ideal for boats, yachts, and RVs looking to improve shore power safety, reliability, and performance.

30 Amp Connector & Non Metallic Inlet - Gray

Includes: 30 Amp Boatside Gray Inlet (BM30PG) & Connector (B30ASSY)

Features:

• The 30 amp non-metallic inlet offers superior performance and ease of use

• The streamlined design includes all of the same high quality electrical components as our stainless inlet products

• Increased pin & clip surface area greatly improves electrical conductivity during high amperage demand

• Ease of Use - No twist required,the unique plug body shape and push-in design means it only goes in the right way every time - even in the dark!

• Multi-Point Locking System

• Side clips lock the plug securely into the inlet which eliminates any stress on the pins from movement of the power cord

• Weatherproof Seals

• Multi-fin silicone gaskets installed in the inlet cover and interior of the plug body eliminates moisture penetration

• Quick & Easy Installation

Technical Specifications — SmartPlug 30 Amp Connector & Non-Metallic Inlet (Gray) — B30ASSYPG

⚡ Electrical

• Amperage Rating: 30 Amps – suitable for 30A shore power circuits used in boats and RVs.

• Voltage: 125 V AC – standard North American shore power.

• Frequency: 50/60 Hz (typical AC shore power frequency).

🔌 Connector & Inlet

• Connector Type: Female SmartPlug connector designed to retrofit onto existing 30A power cord.

• Inlet Type: Gray non-metallic shore power inlet for boatside or RV installation.

• Push-In Design: Unique body shape allows correct insertion without twisting, even in low light.

• Multi-Point Locking System: Side clips and inlet cover lock the plug securely into position to minimize stress on electrical contacts.

• Weather-Resistant Seals: Multi-fin silicone gaskets in the inlet cover and plug body help prevent moisture intrusion.

• Retro-Fit Compatibility: Female connector can be used with existing cord by cutting off old plug end and installing this connector.

🛠️ Installation & Build

• Housing Material: High-performance, flame-resistant non-metallic construction (Gray).

• Mounting: Inlet mounting flange holes match standard twist-lock inlet patterns for easy retrofit installation.

• Installation Time: Typically completed in ~30 minutes with common tools.

🌊 Applications

• Marine Shore Power: Ideal for replacing outdated twist-lock shore power inlets on boats and yachts.

• RV Shore Power: Also suitable for RV shore power inlet installations where 30 A service is required.

📦 Kit Contents

• Female SmartPlug 30 A connector (retro-fit end)

• Gray non-metallic shore power inlet housing

• Rear mounting inlet gasket (typical kit inclusion)

• Cable strain relief and installation hardware (may vary by seller)
