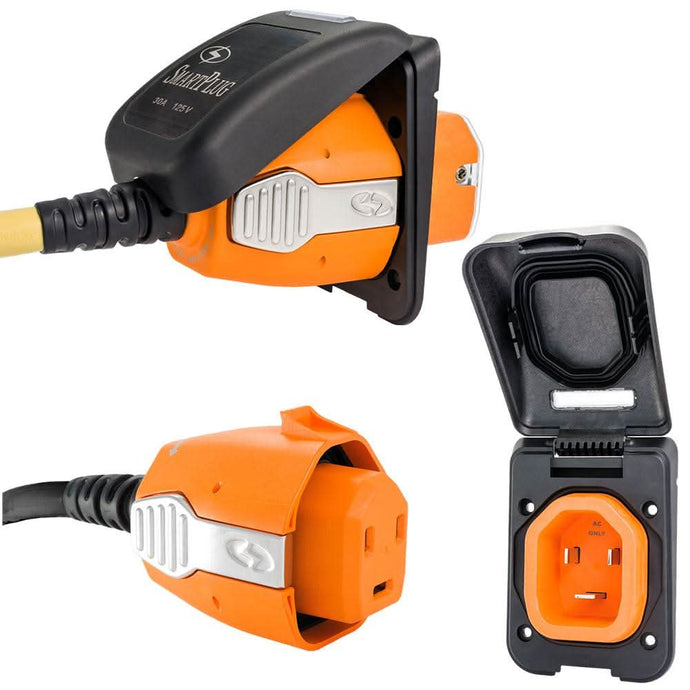

SmartPlug 30 Amp Connector & Non Metallic Inlet - Black - B30ASSYPB

SmartPlug 30 Amp Connector & Non Metallic Inlet - Black - B30ASSYPB

The SmartPlug 30 Amp Connector & Non-Metallic Inlet (B30ASSYPB) provides a safer, more reliable shore power connection for boats and marine applications. Engineered with SmartPlug’s patented solid pin technology, this system delivers increased electrical contact and significantly reduces heat buildup compared to traditional twist-lock connectors, enhancing onboard electrical safety.

This kit includes a 30 Amp SmartPlug connector and a non-metallic black inlet, offering a sleek, corrosion-resistant installation that performs reliably in harsh marine environments. The non-metallic inlet housing eliminates corrosion issues commonly associated with metal inlets, while the SmartPlug’s locking design ensures a secure connection that resists accidental unplugging at the dock.

Ideal for upgrading older shore power systems, the SmartPlug B30ASSYPB delivers dependable performance, improved safety, and a clean, modern appearance for both freshwater and saltwater boats.

Ideal For:

• Boats requiring reliable 30 Amp shore power

• Upgrading from traditional twist-lock shore power inlets

• Boaters seeking cooler-running, safer electrical connections

• Marine installations where corrosion resistance is essential

The SmartPlug 30 Amp Connector & Non-Metallic Inlet – Black – B30ASSYPB is a modern, safer alternative to conventional shore power systems, delivering consistent power and peace of mind at the dock.

Available from Anchor Express—your trusted source for premium marine electrical solutions.

Includes: 30 Amp Boatside Black Inlet(BM30PB) and Connector (B30ASSY)

Features:

• The 30 amp non-metallic inlet offers superior performance and ease of use

• The streamlined design includes all of the same high quality electrical components as our stainless inlet products

• Increased pin & clip surface area greatly improves electrical conductivity during high amperage demand

• Ease of Use - No twist required,the unique plug body shape and push-in design means it only goes in the right way every time - even in the dark!

• Multi-Point Locking System

• Side clips lock the plug securely into the inlet which eliminates any stress on the pins from movement of the power cord

• Weatherproof Seals

• Multi-fin silicone gaskets installed in the inlet cover and interior of the plug body eliminates moisture penetration

• Quick & Easy Installation

Technical Specifications — SmartPlug 30 Amp Connector & Non-Metallic Inlet (Black) — B30ASSYPB

⚡ Electrical

• Amperage Rating: 30 Amps — suitable for standard 30 A shore power circuits in marine and RV applications.

• Voltage Rating: 125 V AC — designed for typical North American shore power systems.

• Frequency: 50/60 Hz

🔌 Connector & Inlet

• Connector Type: Female SmartPlug connector designed as a retrofit end for existing 30 A power cords.

• Inlet Type: Non-metallic marine inlet (black) for boatside or RV side installation.

• Plug Orientation: “Push-in” design eliminates twist-locking — only inserts one way for ease of use and safety.

• Contact System: Increased pin and clip surface area reduces resistance and overheating versus traditional twist-type connectors.

🛠️ Build & Materials

• Housing: High-performance, flame-resistant non-metallic materials — durable and corrosion-resistant for marine environments.

• Sealing: Multi-fin silicone weatherproof seals in inlet cover and plug body to limit moisture penetration.

• Locking System: Multi-point locking clips secure connector in inlet and minimize stress on electrical contacts.

• Installation: Inlet mounting flange holes match standard twist-type inlets for easy retrofit installation.

⚙️ Package Contents

• Female SmartPlug 30 A connector (retro-fit cord end)

• Non-metallic black inlet housing

• Rear mounting inlet gasket

• Cable strain relief

• Hex key and installation instructions

🌊 Applications

• Marine Shore Power: Ideal for replacing outdated twist-lock inlets on boats and yachts.

• RV Shore Power: Suitable for RV shore power input installations where 30 A service is available.

📦 Dimensions & Weight (Typical)

• Weight: Approx. 2.5 lb (1.13 kg) (kit)

• Mounting: Standard shore power inlet footprint — installs in minutes with existing mounting holes.
