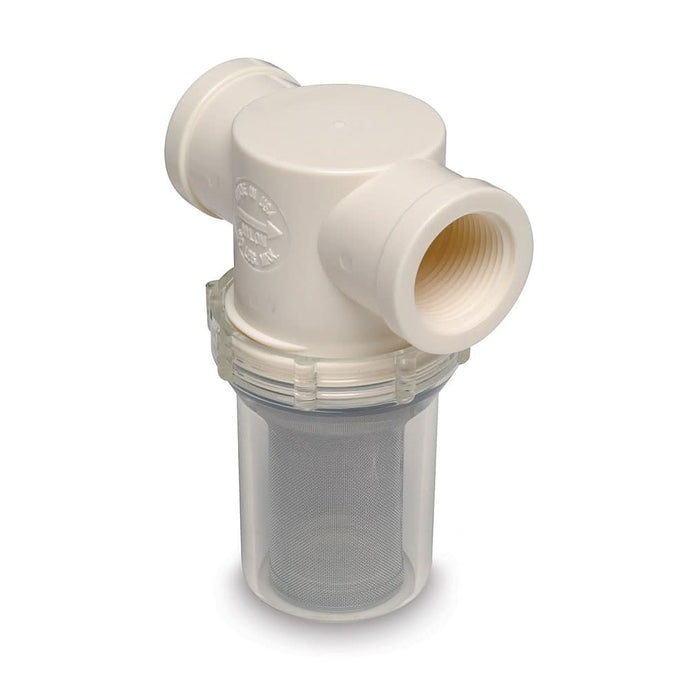

Shurflo 1" Raw Water Strainer with Bracket & Fittings - 50 Mesh - 253-321-01

Key Performance Features

• High-Capacity Filtration: Equipped with a 50-mesh stainless steel screen that effectively traps fine particles while maintaining a high flow rate for engine cooling or washdown systems.

• Transparent Design: Features a clear, twist-off bowl that allows for instant visual inspections. You can check for debris buildup without having to disassemble the unit.

• Easy Maintenance: The bowl is designed to be removed by hand, making it simple to clean the internal screen and keep your system running efficiently.

• Robust Construction: Built with a reinforced plastic housing and a stainless steel bracket to resist the corrosive effects of saltwater and harsh marine environments.

Technical Specifications

• Port Size: 1" NPT (Includes fittings for common hose sizes).

• Mesh Size: 50 Mesh (Stainless Steel).

• Max Temperature: 120°F [49°C].

• Max Pressure: 125 PSI [8.6 Bar].

• Mounting: Includes a sturdy stainless steel mounting bracket.

Installation Tip

For the best protection, always install the strainer between the water intake and the pump. Ensure there is enough clearance below the unit to unscrew the bowl for maintenance. Applying a small amount of silicone grease to the O-ring during reassembly will ensure a watertight seal and make future removals easier.

Part Number: 253-321-01

Ideal for recreational boats, commercial vessels, and marine water systems, the Shurflo 1" Raw Water Strainer provides reliable debris protection for optimal pump and engine performance.
