Shockwave S5-LW Suspension Base – White (SW-05026-W)

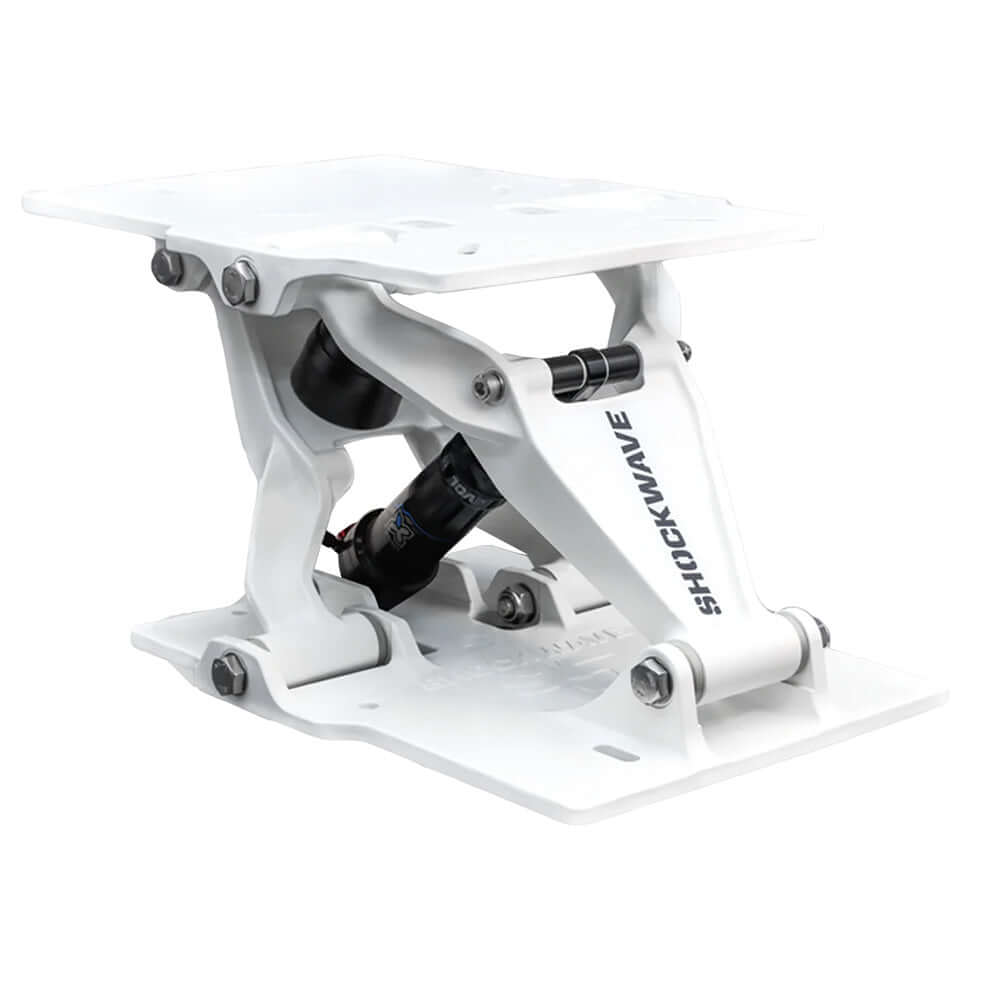

Enhance comfort and reduce impact fatigue on the water with the Shockwave S5-LW Suspension Base – White (SW-05026-W). Designed as a lightweight recreational marine suspension system, this innovative base helps absorb wave shock and vibration, providing a smoother and safer ride for boat operators and passengers.

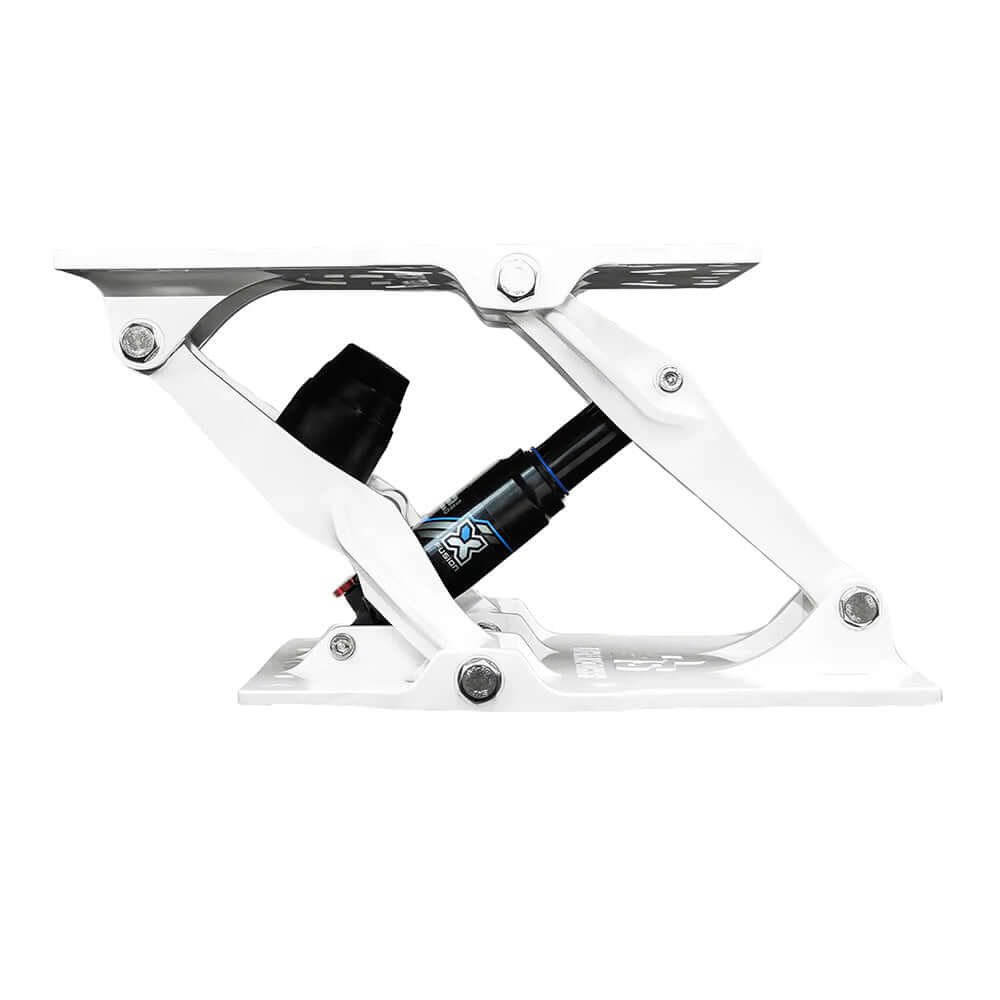

Engineered with a three-link forward action suspension design, the S5-LW effectively reduces the harsh deceleration caused by wave impacts. The integrated X-Fusion O2 PRO R air-sprung shock with adjustable rebound allows you to fine-tune the suspension to match different sea conditions and rider preferences.
Constructed from anodized A360 cast aluminum with stainless steel hardware, the Shockwave S5-LW is built to withstand demanding marine environments while maintaining a lightweight and compact profile. The durable powder-coated finish provides long-lasting corrosion resistance and a clean, modern appearance.
With 4 inches of vertical suspension travel and 1.5 inches of forward travel, this suspension base significantly reduces repetitive impact loads, helping prevent fatigue and improving overall comfort during long days on the water.
Compatible with most marine seats and vessel types, the Shockwave S5-LW is commonly installed on fishing boats, coastal cruisers, guide boats, ski and wake boats, crew vessels, whale-watching boats, and yacht tenders.
Key Features
-
Superior Shock Mitigation: Custom-tuned X-Fusion O2 R air spring shock provides 4" (100mm) of vertical travel and 1.5" of forward travel to absorb heavy impacts.
-
Adjustable Performance: Features an adjustable rebound rate, allowing you to fine-tune the suspension to your body weight and sea conditions.
-
Marine-Grade Construction: Built from anodized A360 cast aluminum with 304 stainless steel hardware and a durable white powder-coated finish.
-
Universal Compatibility: The pre-drilled plates allow this base to be mounted to almost any boat riser or pedestal and paired with virtually any marine seat.
-
Lightweight & Compact: Weighing only 20.5 lbs, it adds minimal bulk to your deck while providing maximum protection.
What’s In The Box
-
(1) Shockwave S5-LW Suspension Module (White - SW-05026-W)
-
(1) High-Pressure Shockwave Shock Pump with Integrated Gauge
-
Installation Hardware & Mounting Templates
-
Owner’s Manual and Shock Tuning Guide
Technical Specifications
| Feature | Specification |
| Model Number | SW-05026-W |
| Suspension Type | 3-Link Forward Action |
| Travel | 4" Vertical / 1.5" Forward |
| Max Occupant Weight | 250 lbs (113.4 kg) |
| Material | Anodized A360 Aluminum / 304 SS |
| Weight | 20.5 lbs (9.3 kg) |
| Ideal Environment | Freshwater / Saltwater Cabin Use |
Upgrade your boat’s seating system with the Shockwave S5-LW Suspension Base, delivering advanced shock mitigation, improved comfort, and reliable durability for long days on the water.
