Shockwave S5-LW Suspension Base - Black - SW-05026-B

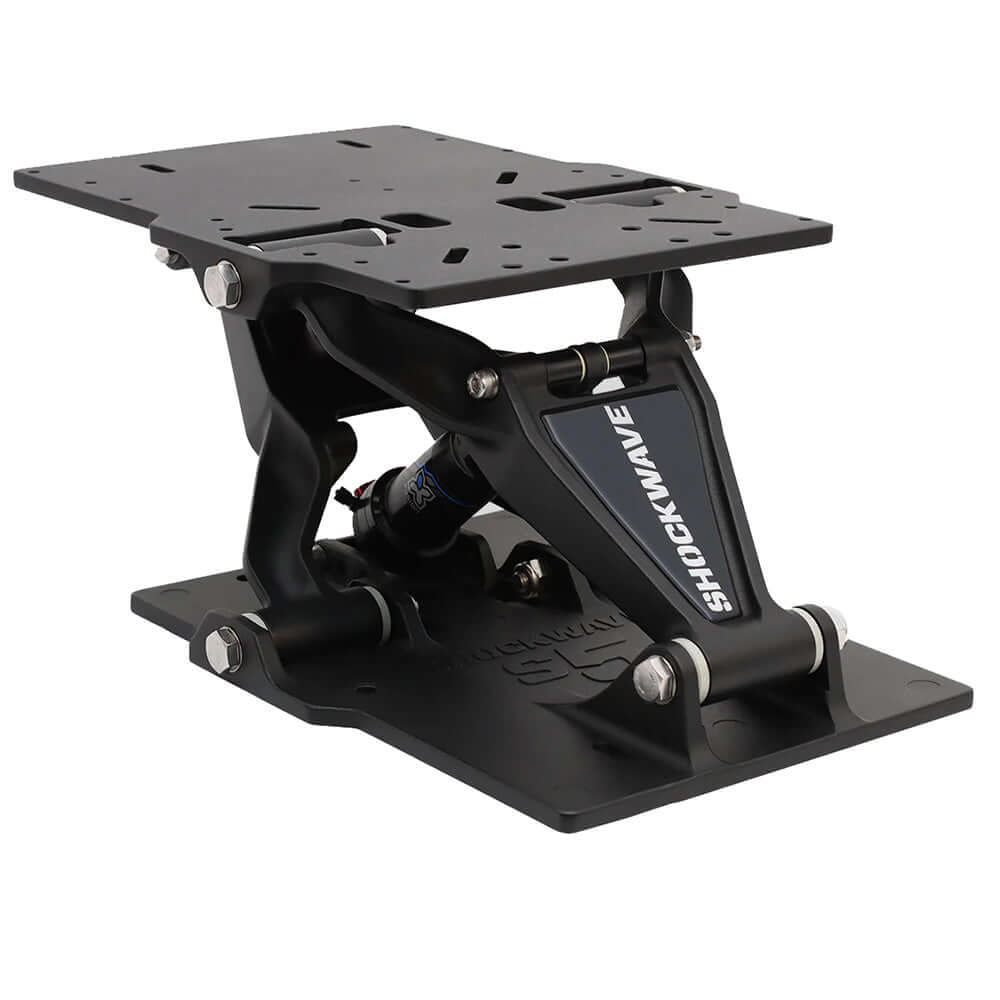

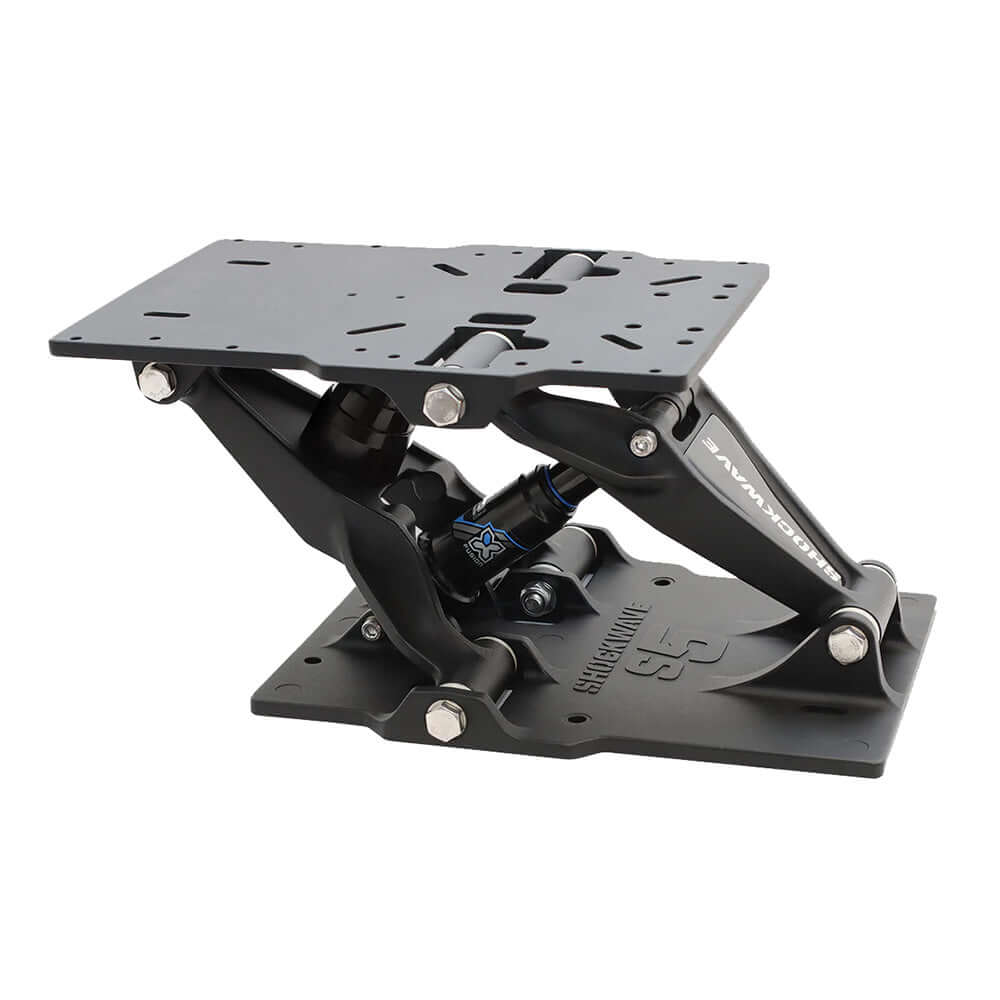

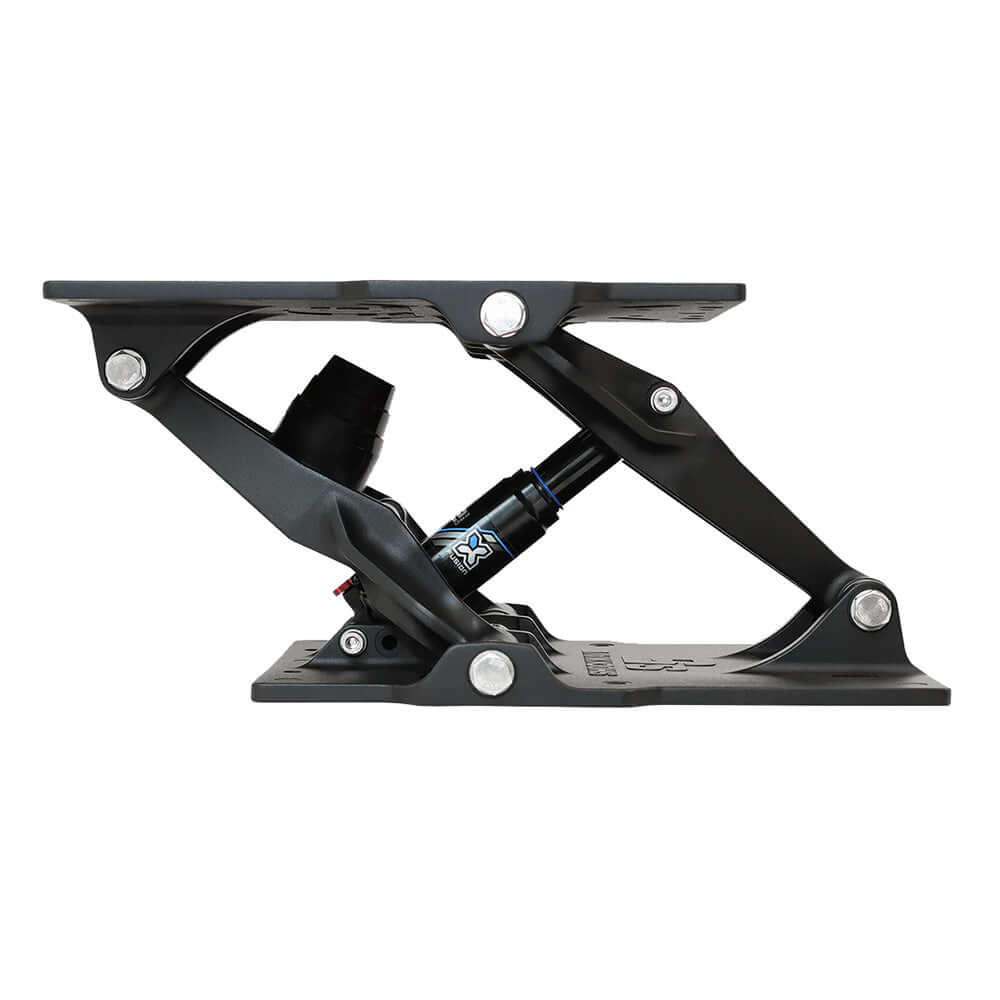

Shockwave S5-LW Suspension Base – Black (SW-05026-B)

Upgrade your ride comfort with the Shockwave S5-LW Suspension Base (SW-05026-B), a lightweight, high-performance marine suspension seat base designed to reduce the impact of waves and improve onboard comfort. Ideal for recreational boaters, this system helps minimize fatigue and enhances safety during extended time on the water.

Engineered as an entry-level suspension solution, the S5-LW is perfect for freshwater boats, coastal cruisers, and light offshore use. Its advanced 3-link forward action suspension system works in combination with a custom-tuned air spring shock to absorb impacts and smooth out rough rides.

The system provides 4 inches of vertical travel and approximately 1.5 inches of forward travel, effectively reducing the jarring forces caused by wave impact and sudden deceleration.  This results in a more comfortable and controlled seating experience, especially in choppy conditions.

Constructed from anodized A360 cast aluminum with a powder-coated finish and stainless steel hardware, the S5-LW is built for durability and corrosion resistance in marine environments.  Its compact, lightweight design (approx. 20.5 lbs) allows for easy installation and compatibility with a wide range of seats and boat configurations.

Designed and manufactured in Canada, this suspension base is trusted by recreational boaters looking for improved comfort without the complexity of heavier-duty systems.

Key Features & Performance

• Surge Protection: Utilizing a 3-link forward action design, the unit provides 4 inches of vertical travel and 1.5 inches of forward travel to soften the deceleration associated with wave impacts.

• Precision Shock: Equipped with an X-Fusion O2 PRO R air-sprung shock, which features adjustable rebound and compression to tune the ride to the occupant's weight.

• Lightweight Construction: Made from anodized A360 cast aluminum with a polyester powder coat finish and 304 stainless steel hardware, balancing durability with a manageable unit weight of approximately 20.5 lbs.

• Universal Compatibility: The base is designed to be fitted to almost any boat and can be paired with virtually any marine seat using standard bolt patterns.

• Simple Maintenance: Features a minimal parts count and simple construction for easy mounting and long-term reliability in its intended environments

In the Box

• (1) Shockwave S5-LW Suspension Base - Black

• (1) Shockwave High-Pressure Shock Pump (required for setup and adjustment)

• Installation Guide and Mounting Templates

Specifications

• Brand: Shockwave Seats

• Model: S5-LW

• Part Number: SW-05026-B

• Color: Black

• Suspension Travel: 4" vertical / 1.5" forward

• Weight: Approx. 20.5 lbs

• Material: Anodized A360 aluminum with powder coat

• Application: Recreational boats, fishing boats, cruisers, tenders

Reduce fatigue and enjoy a smoother ride with the Shockwave S5-LW Suspension Base, delivering comfort, durability, and performance for everyday boating.

Installation Tip: The air shock must be pressurized during installation to match the weight of the occupant (typically 100-150 psi for initial setup). Operating the unit without proper air pressure can damage the internal components.
