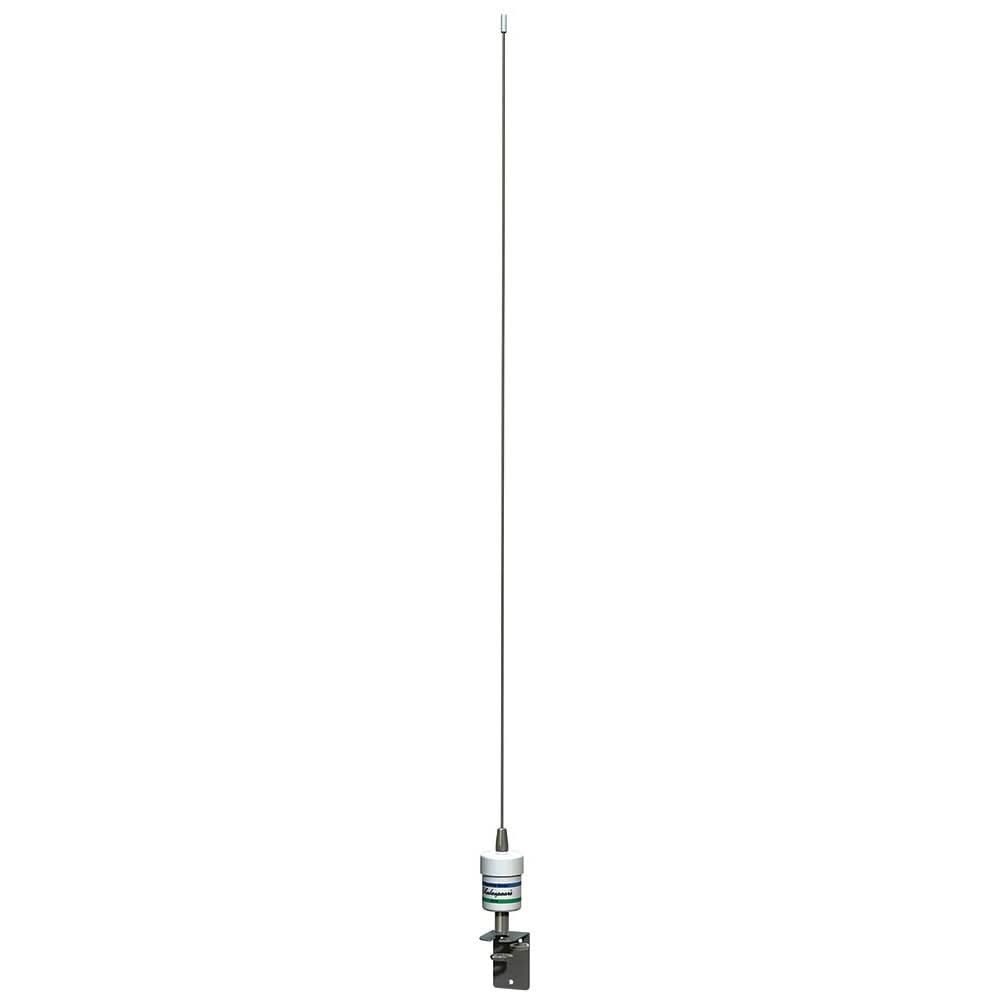

Shakespeare AIS 5215-AIS 36" Squatty Body Antenna for Sailboats - 5215-AIS

Shakespeare Squatty Body®
Style 5215-AIS
3' (0.9m) VHF Marine Band 3dB

End-fed 1/2-wave stainless steel whip

Sailboat owners will love this version of their longtime favorite, our Style 5215. Its the same light weight, low-profile, stainless steel antenna, specially designed for masthead mounting and built with extra bandwidth for all popular AIS transceivers.

• Sealed, tin-plated copper wire coil

• Designed specifically for AIS transceivers

• SO-239 connector

• Stainless steel L-shaped bracket supplied for mounting

• One section

• For AIS applications

Best applications include: Sailboats

Shakespeare 5215-AIS Squatty Body® Specifications

• Band: VHF Marine Band

• Antenna Gain: 3dB

• Max. Input Power: 50 watts

• SWR: nominally 1.5:1 at 162 MHz

• Bandwidth: 7 MHz within 2.0:1 VSWR

• Ferrule: L-bracket and retaining nut, SO-239 connector

• Polarity: Vertical

• Impedance: 50 Ohms

• DC Ground: No DC Ground - The antenna will read open on continuity test.

• Shakespeare Limited Warranty: 2 years
