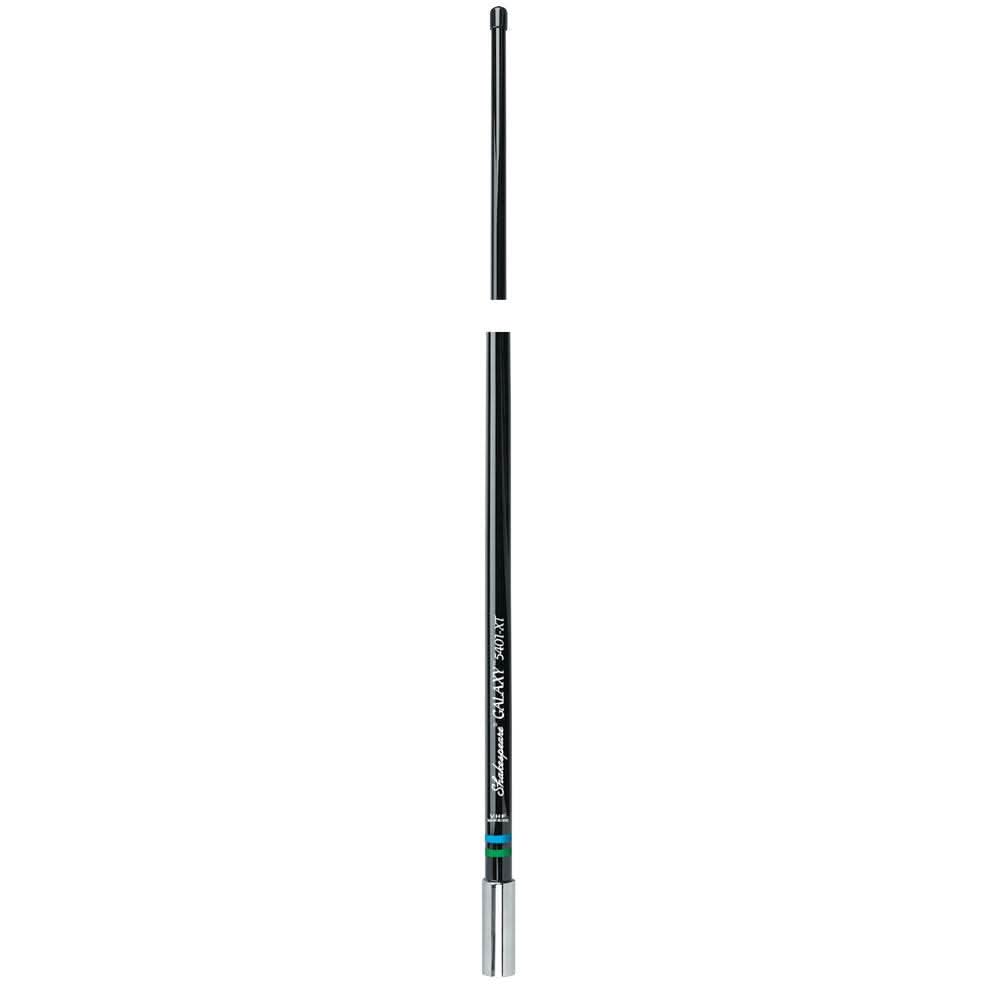

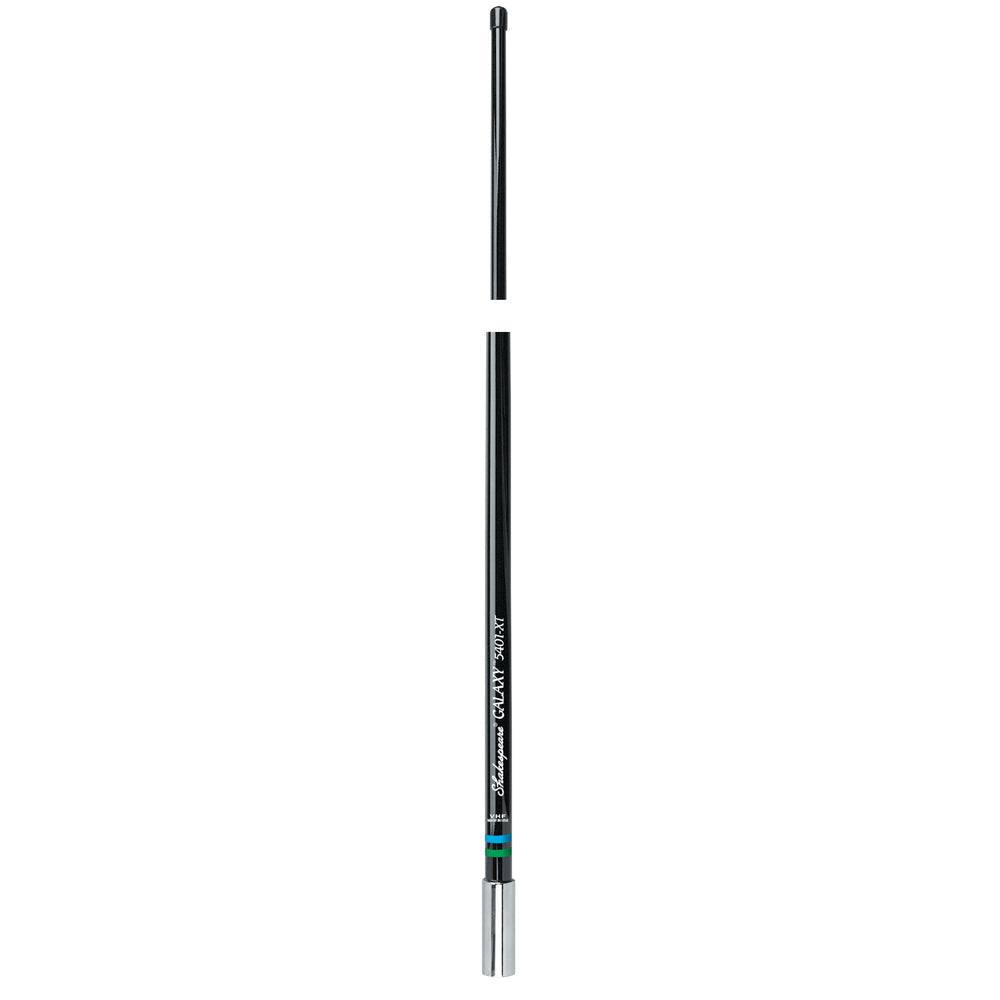

Shakespeare 5401-XT Galaxy 4' VHF Antenna
Manufacturer Part #: 5401-XT
Couldn't load pickup availability
The Shakespeare 5401-XT Galaxy 4' VHF Antenna is a high-performance, heavy-duty marine antenna known as the "Little Giant." It is essentially the black version of the industry-standard 5400-XT, featuring an exclusive black Galaxy finish that maintains its luster in harsh saltwater environments.
Designed for use on T-tops, hard-tops, and other positions aloft, its compact 4-foot size is ideal for short-to-medium range communications without sacrificing durability. It features brass and copper elements for maximum range and efficiency, along with a stainless steel ferrule to prevent rust and corrosion.
-
Exceptional Performance: Delivers a 3dB gain with a center-fed 1/2-wave coaxial sleeve design that reduces signal fading in rough seas.
-
Rugged Construction: Built with a fiberglass radome and a high-gloss polyurethane finish to prevent yellowing and withstand extreme weather.
-
Complete Kit: Comes ready to install with 20 feet of low-loss RG-8/X cable and a PL-259 connector.
-
Easy Mounting: Uses a standard 1"-14 thread stainless steel ferrule; the Shakespeare Style 4187 Stainless Steel Ratchet Mount is highly recommended for a secure fit.
Technical Specifications
| Feature | Specification |
| Model Number | 5401-XT |
| Length | 4 Feet (1.2m) |
| Gain | 3 dB |
| Frequency | VHF Marine Band |
| Max Input Power | 50 Watts |
| SWR | Nominally 1.5:1 at 156.8 MHz |
| Cable Type | 20' RG-8/X Low-Loss Coax |
- Brass and copper elements for maximum range
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20' RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Shakespeare Limited Warranty: 5 years
Shakespeare 5401-XT Galaxy 4' VHF Antenna is backordered and will ship as soon as it is back in stock.
