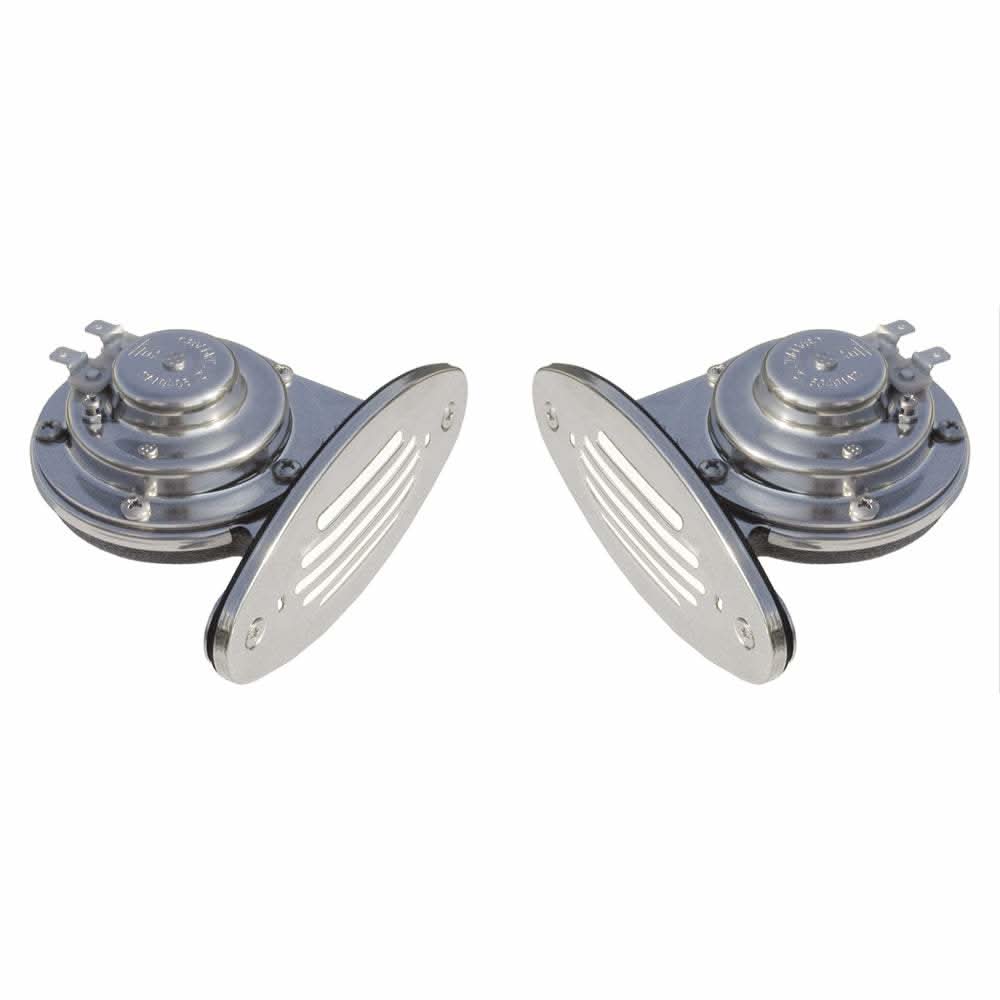

Schmitt Marine Mini Stainless Steel Dual Drop-In Horn w/Stainless Steel Grills High & Low Pitch - 10055

The Schmitt Marine 10055 is a high-performance Mini Stainless Steel Dual Drop-In Horn designed for low-profile, recessed installation. It is an ideal replacement or upgrade for factory-installed "hideaway" horns on boats up to 12 meters (39 feet).

Low-Profile, High-Performance Signaling

This dual-horn system combines a high-pitch and low-pitch tone to create a commanding sound that cuts through wind and engine noise more effectively than a single-tone unit. Because it is a "Drop-In" style, it mounts flush against the hull or console, protected by the included polished 304 stainless steel grills.

Key Features:

• All-Stainless Steel Construction: Both the internal sound units and external grills are made of 304 stainless steel, ensuring a rust-free life in saltwater environments.

• Dual-Pitch Harmony: Combines high and low fundamental frequencies (approx.⁶ 410 Hz) for a fuller, louder sound.

• Powerful Sound Rating: Delivers 114 dB at 1 meter, meeting ABYC A-23 safety standards for vessels up to 12 meters.

• 5-Year No-Rust Guarantee: Schmitt Marine stands by the durability of the stainless components with a 5-year warranty.

• Easy Retrofit: Designed to fit many existing factory hole patterns, making it a simple DIY "drop-in" upgrade for older, corroded horns.

• Pre-Wired: Includes tinned wire leads for a secure, corrosion-resistant electrical connection.

Technical Specifications:

• Model Number: 10055

• Voltage: 12V DC

• Max Amp Draw: 6 Amps

• Horn Unit Dimensions: 3" L x 3-1/4" W x 1-3/4" H (per horn)

• Grill Dimensions: 4-7/8" x 2-3/8" (with 4" hole centers)

• Frequency: High & Low Pitch (410 Hz +/- 20)

Why Choose the 10055?

The 10055 is the perfect solution for boat owners who want the aesthetic of a hidden horn without sacrificing the safety of a loud, dual-tone signal. The sealed sound unit and all-stainless internals solve the most common problem with drop-in horns: internal corrosion caused by water entering the grill.

Installation Pro-Tip:

When installing, ensure the horn unit is positioned so the opening faces slightly downward behind the grill to prevent water from pooling. Using a small bead of marine-grade silicone around the outer edge of the grill will provide an extra layer of protection against water intrusion into the hull cavity.
