Scanstrut PowerTower 10" Aluminum Forward Leaning 2kW/4kW for Raymarine, Garmin & Navico BR24, 3G & 4G - APT-F-250-01

Scanstrut PowerTower 10″ Aluminum Forward Leaning 2kW/4kW – APT‑F‑250‑01

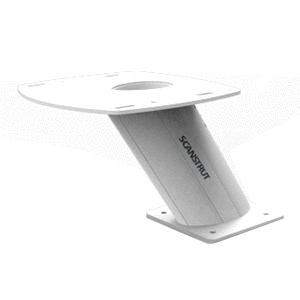

The Scanstrut PowerTower 10″ Aluminum Forward Leaning Radar Mount (APT‑F‑250‑01) is a marine‑grade radar mounting solution designed to elevate your radar dome (2 kW/4 kW) and antenna equipment for clear horizon visibility and improved performance. Built from high‑strength marine aluminum with a rugged powder‑coated finish, this forward‑leaning PowerTower raises your antenna ~10″ above the mounting surface, making it ideal for cabins, flybridges, radar arches, or T‑tops on powerboats. Pre‑drilled mounting holes allow the radar to fasten directly to the tower with its own hardware — no connector cutting or sealant required. Perfect for modern radomes from Raymarine, Garmin, Navico/Lowrance, B&G, Simrad, Humminbird, and more.

🔧 Technical Specifications

• Brand / Model: Scanstrut PowerTower 10″ Forward Leaning Radar Mount – APT‑F‑250‑01

• Type: Forward‑leaning PowerTower radar mount

• Height: 10″ (250 mm) above mounting surface for greater radar horizon clearance

• Construction: Powder‑coated marine‑grade aluminum for strength and corrosion resistance

• Mounting Orientation: Forward leaning (approx. 33° rake) for enhanced performance and clearance

• Pre‑Drilled Mounting Holes: Yes — radar attaches with its own bolts; marine sealant not required

• Integrated Cable Seal: Internal DS30 cable seal ensures waterproof cable entry without messy sealants

• Compatible Antennas/Radomes:

  • Raymarine: QUANTUM (Q24C), QUANTUM 2 (Q24D), RD218, RD418/RD418HD, RD424/RD424HD

  • Garmin: Fantom 18/24, GMR18HD/18xHD/18HD+, GMR24HD/24xHD, GMR40

  • Navico / Lowrance: 3G/4G radars

  • Simrad: 3G/4G radars, DX series etc.

  • Others: B&G HALO, Humminbird HB 2124, etc.

• Application: Suitable for radar domes, open array heads, small SatCom/TV antennas on boats

• Installation Location: Roof, T‑top, flybridge, radar arch, or similar elevated surface

⭐ Key Features

• Enhanced Radar Performance: Elevates radar for improved line‑of‑sight and horizon range.

• Forward‑Leaning Design: Angled mounting position (≈ 33°) helps clear obstructions and provides modern style.

• Marine‑Grade Aluminum: Durable, corrosion‑resistant material with rugged powder‑coat finish.

• No Sealant Required: Pre‑drilled holes and integrated cable seal eliminate messy marine sealants.

• Wide Compatibility: Works with popular radar domes and antennas from Raymarine, Garmin, Navico, and more.

• Easy Installation: Radar mounts directly to PowerTower with existing hardware; simple bolt‑on setup.

• Accessory‑Ready: Light bars, GPS/VHF/Navigation light brackets can be added to expand capability.

Manufacturer : Scanstrut
Manufacturer Part No : APT-F-250-01
