Scanstrut LMB-F2 Self Leveling Radar Mount - Backstay (F) f/Sitex/Simrad Domes - LMB-F2

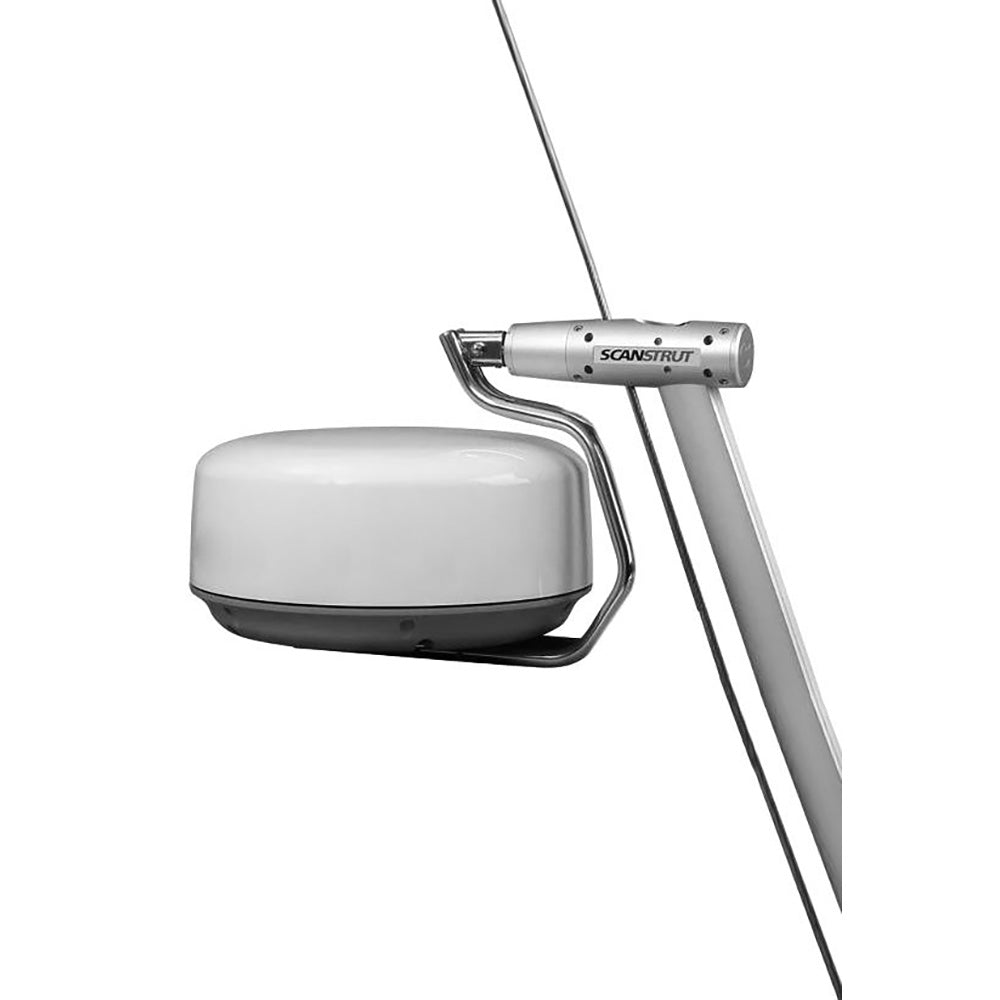

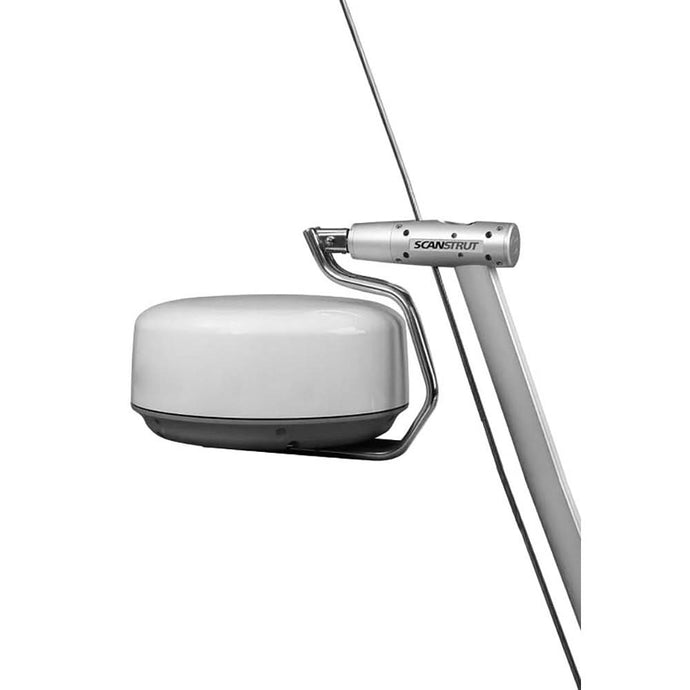

 LMB-F2 Self Leveling Radar Mount - Backstay (F) for Sitex/Simrad Domes

The Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance free
• Passive system - no power required
• Lightweight head unit - reduced weight aloft
• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht
• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted

Dimensions:

• 2.6m pole - supplied in lengths of 1.3m
• Additional 0.6m and 1.3m lengths are available

Materials:

• Finest quality machined and anodized aluminum pole and head unit - lasts the lifetime of your yacht
• Marine grade 316 stainless steel cradle and base plate

Kit Includes:

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10, and 12mm diameter backstay cables)
• 2 x 1.3m lengths of the mounting pole
• 1 x Joiner piece for the mounting pole
• 1 x Universal base for the mounting pole
• 1 x Complete fastening pack
