Scanstrut LMB-F1 Self Leveling Radar Mount - Backstay (F) - f/ 2kW 4kW Raymarine/Garmin Domes - LMB-F1
$1,314.99
$2,299.00
Unit price
/
Unavailable
SKU:
36043
Couldn't load pickup availability

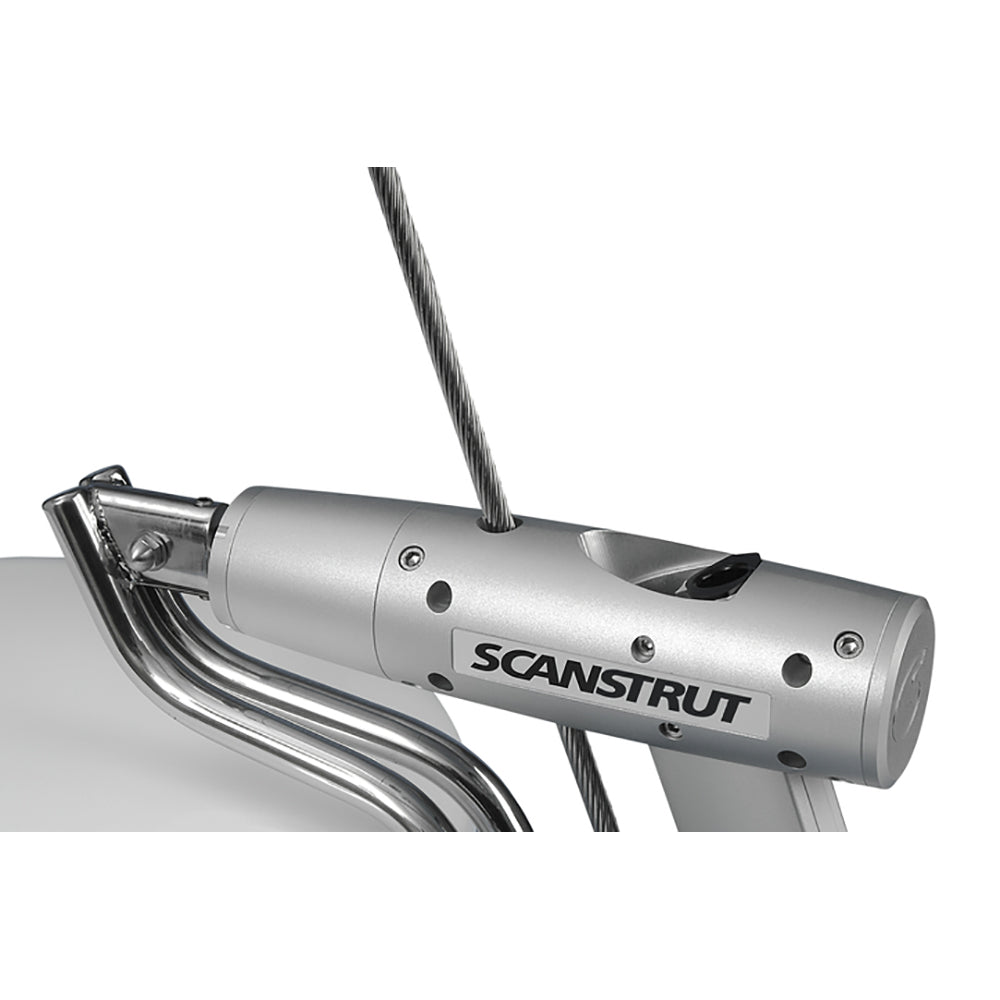

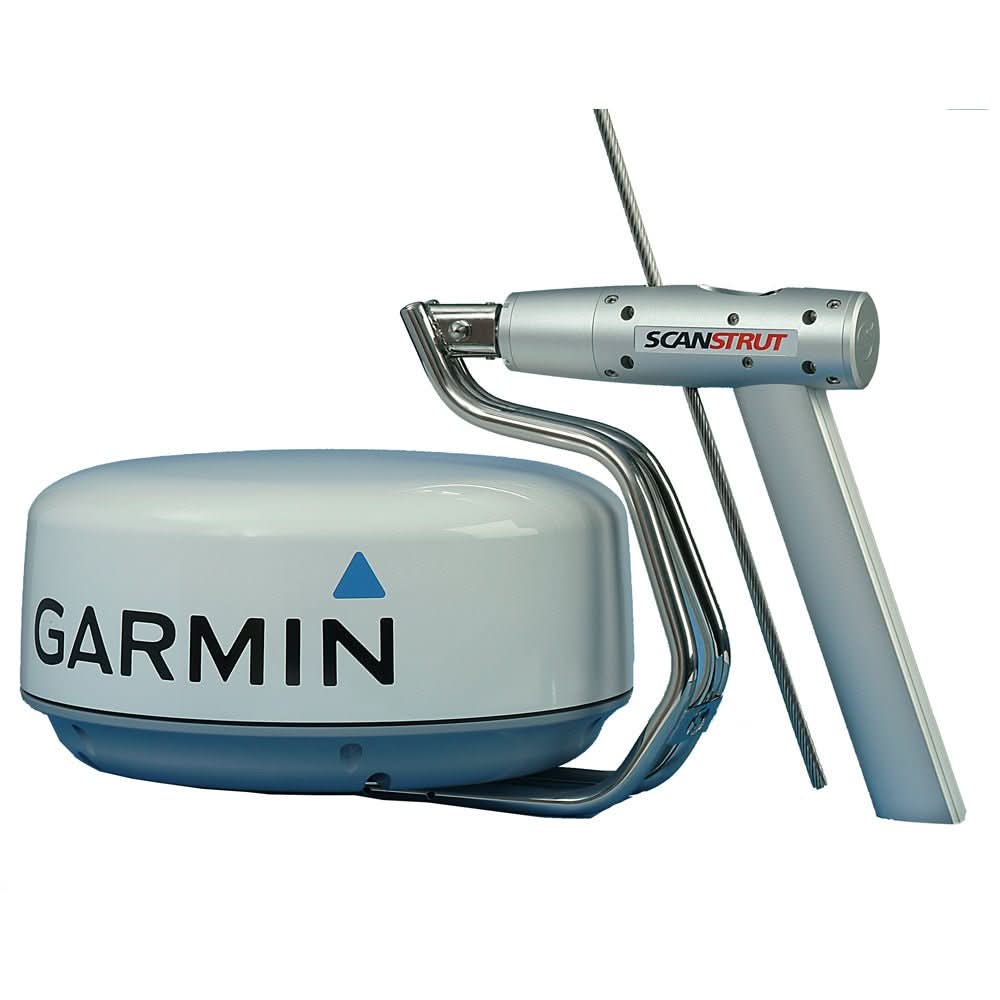

Self-Levelling Radar Mount - Backstay - Fwd (F) - Made Specifically for Raymarine & Garmin Domes
Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.
Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.
Features:
Dimensions:
Materials:
Kit includes:
Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.
Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.
Features:
- Hydraulic damping to eliminate minor oscillations
- Sealed system - entirely maintenance free
- Passive system - no power required
- Lightweight head unit - reduced weight aloft
- Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht
- Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted

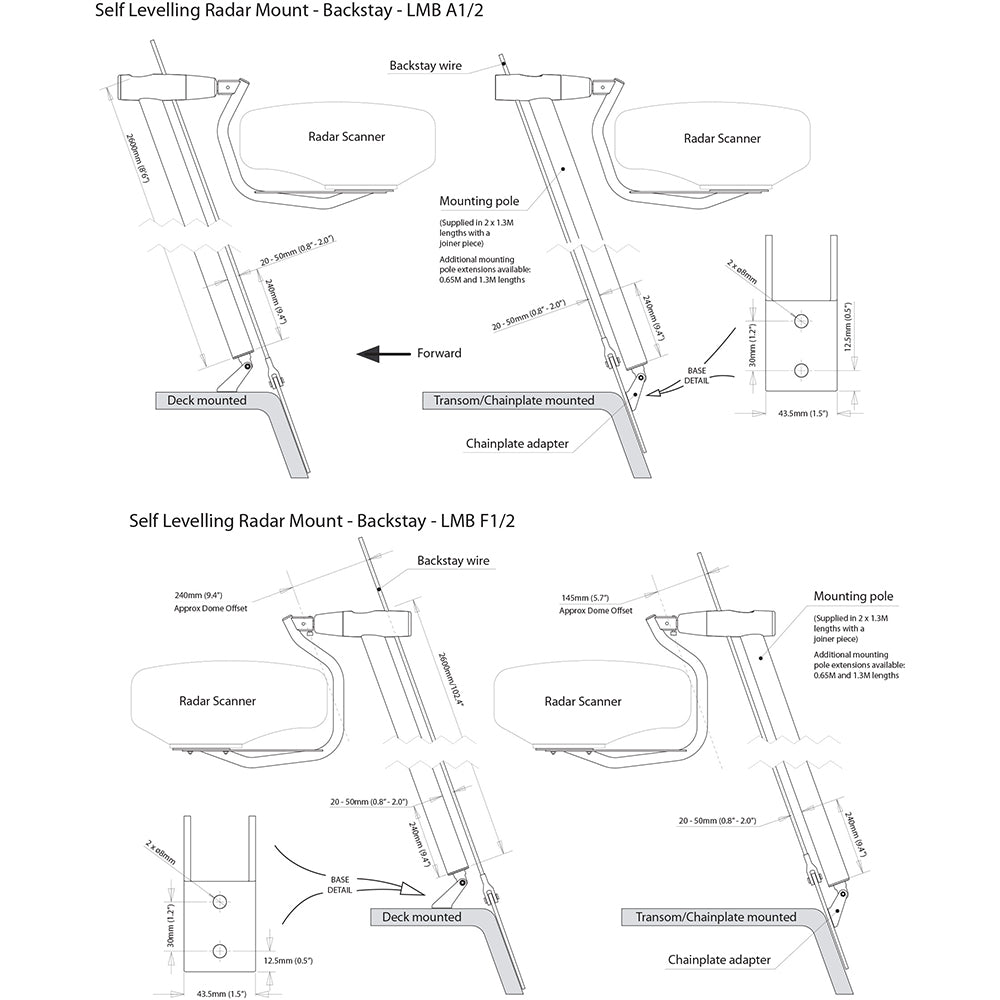

Dimensions:
- 2.6m pole - supplied in lengths of 1.3m
- Additional 0.6m and 1.3m lengths available
Materials:
- Finest quality machined an anodised aluminum pole and head unit - lasts the lifetime of your yacht.
- Marine grade 316 stainless steel cradle and base plate
Kit includes:
- 1 x Levelling mount with integral backstay bushes (to fit 7, 8, and 10 and 12mm diameter backstay cables)
- 2 x 1.3m lengths of mounting pole
- 1 x Joiner piece for mounting pole
- 1 x Universal base for mounting pole
- 1 x Complete fastening pack
Manufacturer : Scanstrut
Manufacturer Part No : LMB-F1
UPC : 5060114790940
Scanstrut LMB-F1 Self Leveling Radar Mount - Backstay (F) - f/ 2kW 4kW Raymarine/Garmin Domes - LMB-F1 is backordered and will ship as soon as it is back in stock.
