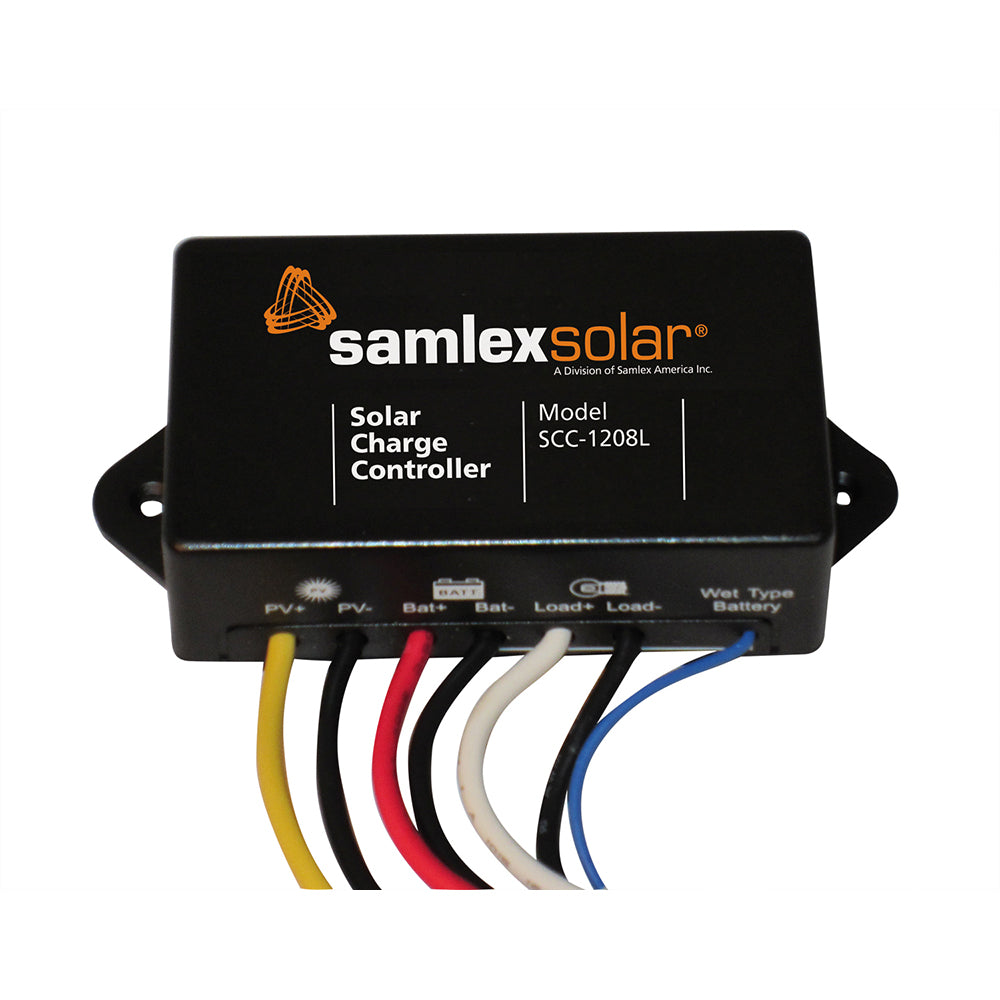

Samlex Charge Controller - 12V - 8A - SCC-1208L

Charge Controller - 12V - 8A

The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.

Features:

• Micro-controller based for automatic, intelligent operation
• Designed for 12V nominal solar panels and 12V battery systems
• 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
• For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
• Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
• Automatically turns on lights when dark and turns off during the day
• Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
• Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
• Wide operating temperature range of -40°C to + 60°C

Specifications:

• Input: 12V
• Amps: 8 Amps
• Weight: 0.28 (lbs) / 0.13 (kg)
• Dimensions: 3.8 x 1.8 x 1.0 (in)
• Dimensions: 9.65 x 4.57 x 2.54 (cm)
• Safety: FCC, CE, IP65
• Warranty: 5 Year Limited

Applications:

• Off-grid mobile rural systems
• Rural electrification
• Power supply for remote equipment
• Monitoring systems for the oil & gas industry
• Traffic, security, environment, and other remote monitoring and signaling systems
• Water pumping systems
