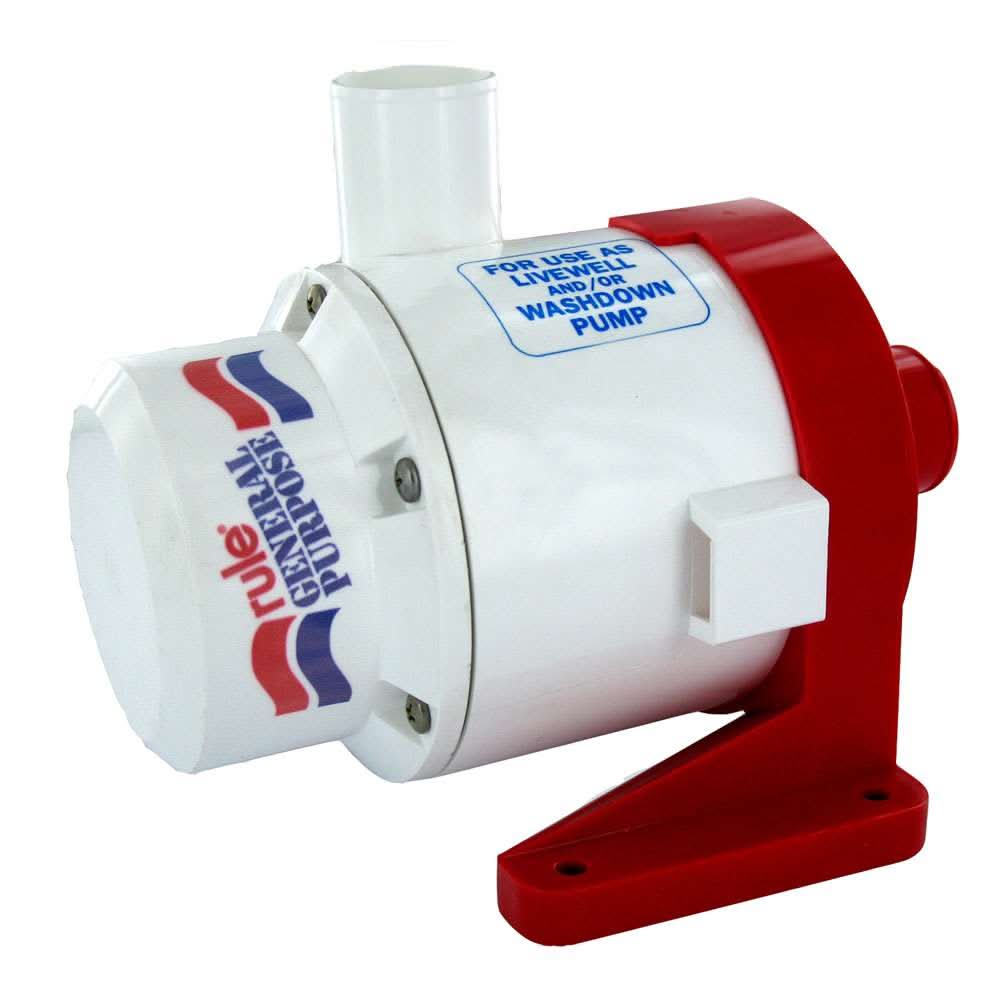

Rule 3800 G.P.H General Purpose Centrifugal Pump - 17A

Rule 3800 GPH General Purpose Centrifugal Pump (17A)

The Rule 17A is a high-capacity, heavy-duty centrifugal pump designed for high-volume water transfer in commercial and pleasure boat applications.¹ Delivering a massive 3800 Gallons Per Hour (63 GPM), it is primarily used for livewell circulation, bait tank aeration, and low-pressure washdown systems.

High-Volume Performance

As a non-self-priming centrifugal pump, the Rule 17A is engineered to move a significant volume of water with extremely low vibration and noise. Unlike standard bilge pumps, this "General Purpose" model is built for continuous or heavy-duty cycles, making it a "workhorse" for professional anglers who need to keep large quantities of bait healthy or clean decks quickly.

Key Features:

• Massive Flow Rate: Moves up to 3800 GPH (220 L/min) at zero head, ensuring rapid water turnover for large livewells.

• Heavy-Duty Motor: Features a compact, efficient, long-life motor with a stainless steel shaft for superior corrosion resistance in both fresh and saltwater.

• Submersible Capability: While often mounted in a dry location below the waterline, the pump is totally submersible and ignition-protected.

• Silent Operation: Engineered for vibration-free and silent running, which is critical for avoiding "spooking" fish in livewell applications.

• Anti-Airlock Protection: Designed to prevent air locks that can cause pumps to run dry and overheat.

• 1.5" Ports: Equipped with large 1-1/2" (38mm) inlet and discharge barbs to accommodate the high flow volume without restriction.

Technical Specifications:

• Model Number: 17A

• Flow Rate: 3800 GPH (14,385 LPH)

• Voltage: 12V DC

• Amp Draw: 15.5 Amps

• Fuse Size: 25 Amps

• Inlet/Outlet Size: 1-1/2" (38mm) Hose Barb

• Max Head: 10 feet (3 meters)

• Dimensions: 5.25" H x 8.5" W (133mm x 216mm)

• Weight: 5.1 lbs (2.6 kg)

Critical Installation Note:

The Rule 17A is NOT self-priming. This means the pump must be mounted below the waterline or in a position where the inlet is constantly flooded by gravity.¹⁸ If the pump is mounted above the water level, it will not be able to "pull" water up to start the flow.

Professional Tip:

To achieve the advertised 3800 GPH, ensure you use smooth-bore 1-1/2" reinforced hose. Using corrugated hose or reducing the pipe size significantly increases friction and will reduce the actual flow rate delivered to your tank.
