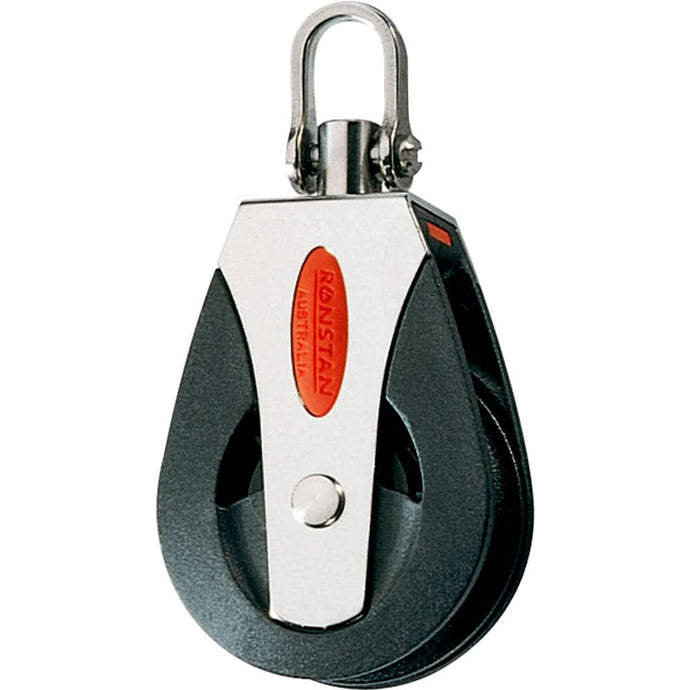

Ronstan Series 50 High Load Block - Single - Universal Head - RF50100HL

Series 50 High Load Block - Single - Universal Head

Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.

Features:

• Exceptionally high working loads

• Lightweight

• Cheek cut-outs for easy bearing maintenance

• Suitable for both rope or wire

• Captive Lock™ universal head

• Slotted pin shackle eliminates fouled lines

Applications:

• Mainsheet

• Spinnaker sheets

• Halyards and other primary applications on boats up to 10M(33')

Materials:

• Nylatron® sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and U.V. resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Cable Ø:5mm(3/16")
Max. Pin Ø: 5mm(3/16")
M.W.L.:800kg(1,760lbs)
B. L.:1,500kg(3,310lbs)
Weight:117g(4.1oz)
Manufacturer : Ronstan
Manufacturer Part No : RF50100HL
UPC : 9316800241453
